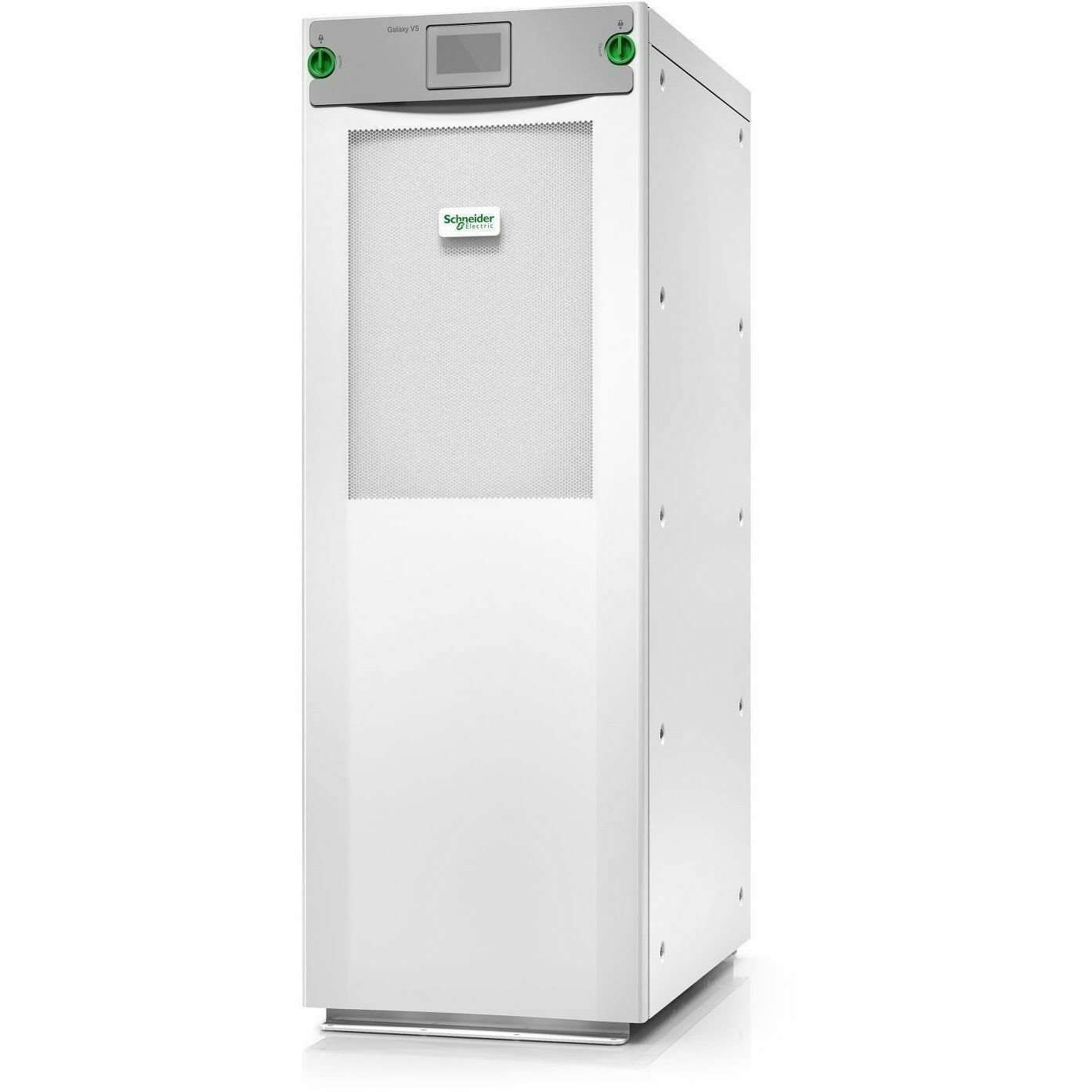

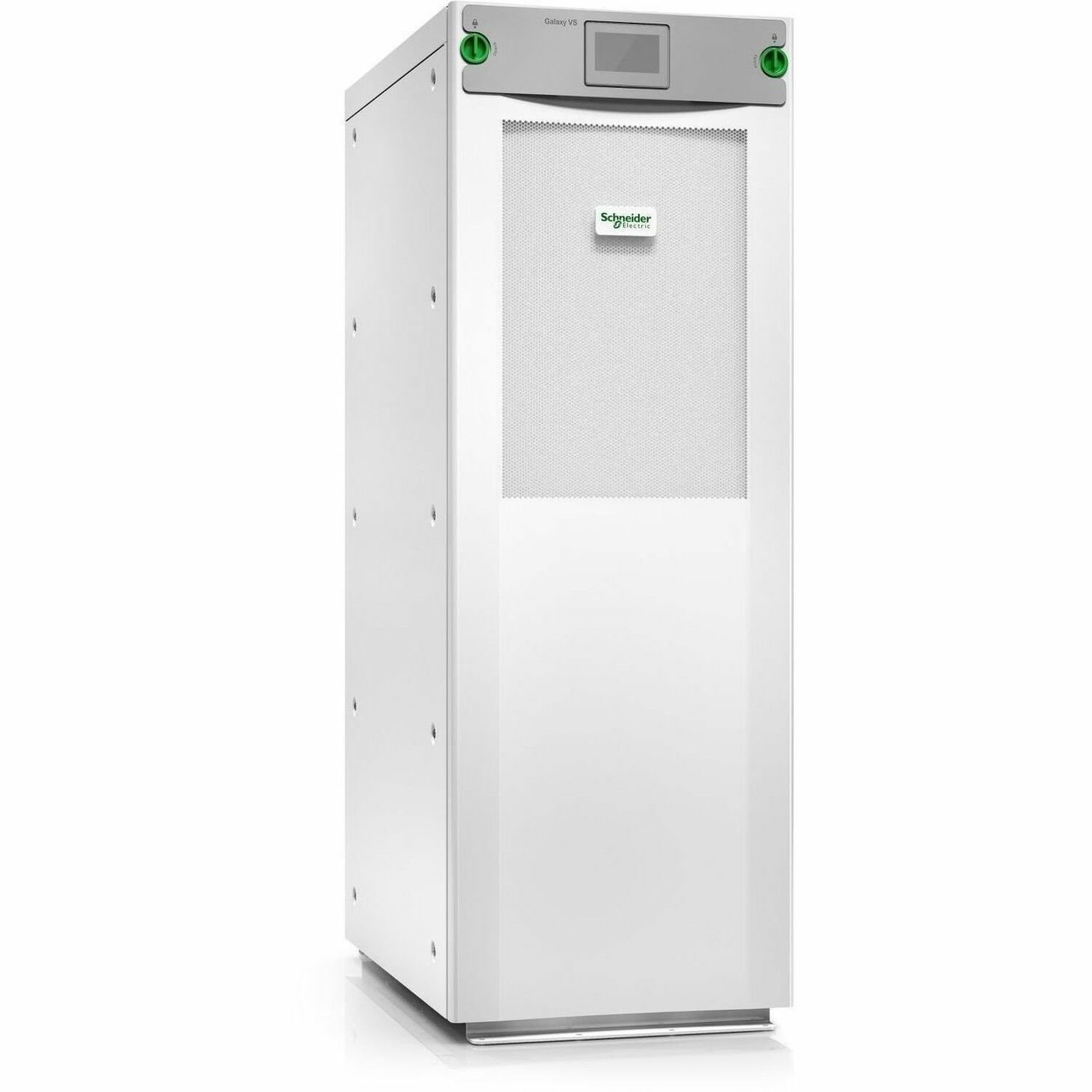

Highly efficient, easy-to-deploy 150 kW, 480 V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service.
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- Schneider Electric
- Product Line
- Galaxy VS
- Packaged Quantity
- 1 / Pack
- Product Type
- Double Conversion Online UPS
- Technical Information
- Protection Type
- Short Circuit
- Overload Protection
- Yes
- Phase
- Three Phase
- Application/Usage
- Data Center
- Infrastructure
- Commercial
- Industrial
- Crest Factor
- 2.5:1
- Efficiency
- 99%
- Power Description
- Load Capacity (VA)
- 150 kVA
- Load Capacity (Watt)
- 150 kW
- Input Voltage
- 480 V AC
- Output Voltage
- 480 V AC
- Input Frequency
- 40 Hz
- 70 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Input Current
- 223 A
- Waveform Type
- Sine Wave
- Input Power Factor
- 0.7
- Display & Graphics
- Display
- LCD
- Battery Information
- DC System Voltage
- 576 V DC
- Battery Characteristics
- Valve-regulated
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Lead Acid
- Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- -13°F (-25°C) - 131°F (55°C)
- Maximum Operating Elevation
- 3300 ft
- Storage Relative Humidity
- 10% - 80%
- Sound Emission (A-Weighted)
- 64 dB(A)
- Thermal Dissipation
- 4175.97 W
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Form Factor
- Modular
- Height
- 58.5"
- Width
- 20.5"
- Depth
- 33.3"
- Weight (Approximate)
- 639.30 lb
- Miscellaneous
- Package Contents
- Galaxy VS 150kW 480V For External Batteries, Start-up 5x8
- Dust Filter
- EcoStruxure IT Ready (UPS)
- Installation Guide
- Integrated Network Management
- Power Modules Ship Installed
- Start-Up Service
- Certifications & Standards
- IEC 62040-1-1
- IEC 62040-2
- UL 1778 5th edition
- FCC Part 15 class A
- IEC 60721-4-2 Level 2M2
- UL 924 Listed
- IP21
- Energy Star
- Yes
- Energy Efficiency Certification
- ENERGY STAR 2.0
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
