Data line surges make up an overwhelming majority of all surge induced damages where the equipment was thought to be already protected but had a back door such as a modem line unprotected. Network interface cards, in particular, can be destroyed by relatively mild spikes. According to Ethernet standards (IEEE 802.3), non-AC network electrical hazards include: Direct contact between components and power or lightning circuits, static charge buildup on cables and component, high-energy transients coupled onto the local cabling system (those induced by other cables which are installed in the general proximity of network cables or lightning within a mile radius) and potential differences (even from building to building, between safety grounds to which components are connected.)
- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- ProtectNet
- Packaged Quantity
- 1 Each
- Product Type
- Surge Suppressor/Protector
- Warranty
- Limited Warranty
- 10 Year
- Technical Information
- Dataline Protection
- Modem/Fax/DSL
- Power Description
- Maximum Surge Current
- 200 A
- Environmental Conditions
- Maximum Operating Temperature
- 113°F (45°C)
- Physical Characteristics
- Product Color
- Beige
- Height
- 4.1"
- Width
- 1.9"
- Depth
- 1.1"
- Weight (Approximate)
- 2.24 oz
- Miscellaneous
- Package Contents

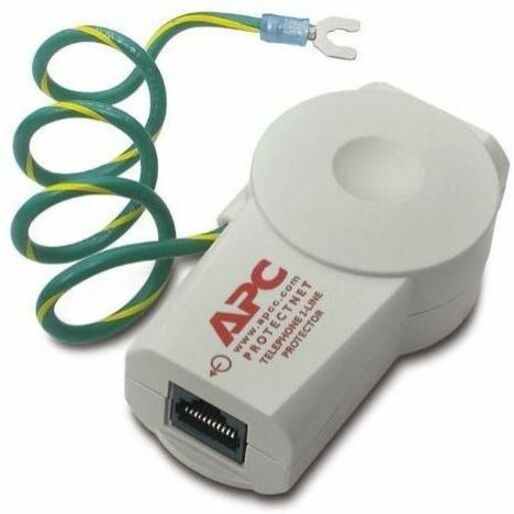

- ProtectNet Analog Telephone Line Surge Suppressor
- User manual
- Additional Information
- Catastrophic Event Protection
- Standard Warranty: 10 Year Repair/Replace
- System Requirements
- Use only for analog modems, fax machines and other telecommunication devices
- The PTEL2 must be connected to earth ground
- Certifications & Standards
- CSA
- UL 497A
- UL Listed
- Environmentally Friendly
- Yes
- Country of Origin
- Costa Rica
