Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
RaceSport edition, your all-rounder motherboard that fulfills every task and light-loading gaming - with style and speed!
Optimized VRM Design | Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
14+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
DDR5 XMP & EXPO Support
Derived from the "built for stable and reliable" designing concept, ASRock does not compromise on any details. This motherboard is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
DDR5 Memory with Protection Circuit
Due to the unique electrical architecture of DDR5 DIMM, there's a high risk of damaging the memory module if AC power isn't disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
- General Information
- Manufacturer
- ASRock, Inc
- Manufacturer Website Address
- http://www.asrock.com
- Brand Name
- ASRock
- Product Series
- PRO
- Product Type
- Gaming Desktop Motherboard
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Z790
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 14th Gen
- 13th Gen
- 12th Gen
- Processor Supported
- Core
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 256 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 7200 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax
- I/O Expansions
- PCI Express Standard
- PCI Express 3.0
- PCI Express 4.0
- PCI Express 5.0
- Total Number of PCI Express Slots
- 4
- Number of PCI Express x1 Slots
- 2
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 8
- Number of USB 2.0 Ports
- 4
- Number of USB 3.2 Gen 1 Ports
- 2
- Number of USB 3.2 Gen 2 Type-A Ports
- 1
- Number of USB 3.2 Gen 2 Type-C Ports
- 1
- VGA
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Thunderbolt
- Yes
- Onboard Interfaces
- Number of M.2 Interfaces
- 5
- Total Number of Onboard USB Ports
- 9
- Number of Onboard USB 2.0 Ports
- 4
- Physical Characteristics
- Form Factor
- ATX
- Width
- 12"
- Depth
- 9.6"
- Miscellaneous
- Package Contents

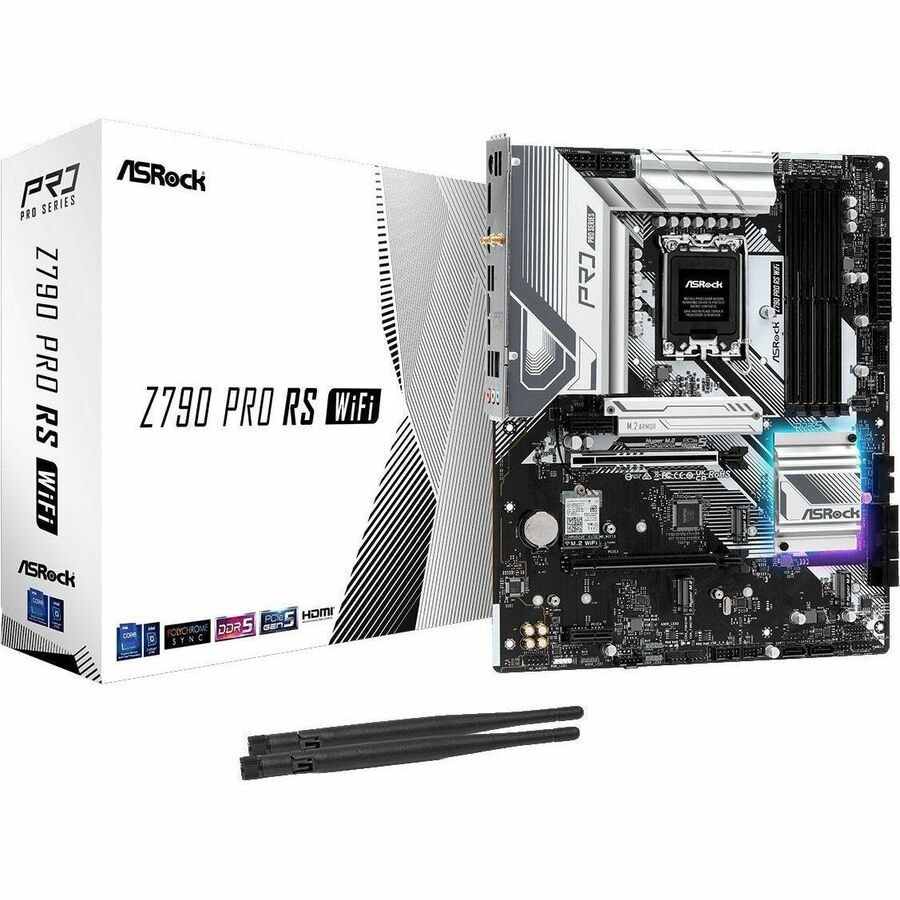

- Z790 Pro RS WiFi Gaming Desktop Motherboard
- 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
- Brand Compatibility
- Intel
- Energy Efficiency Compliance
- Energy-related Products Directive Ready (ErP Ready)
- Energy-using Products Directive Ready (EuP Ready)
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
