- General Information
- Manufacturer
- Audio-Technica U.S., Inc
- Manufacturer Website Address
- http://www.audio-technica.com
- Brand Name
- Audio-Technica
- Product Line
- SmartMixer
- Product Type
- Audio Mixer

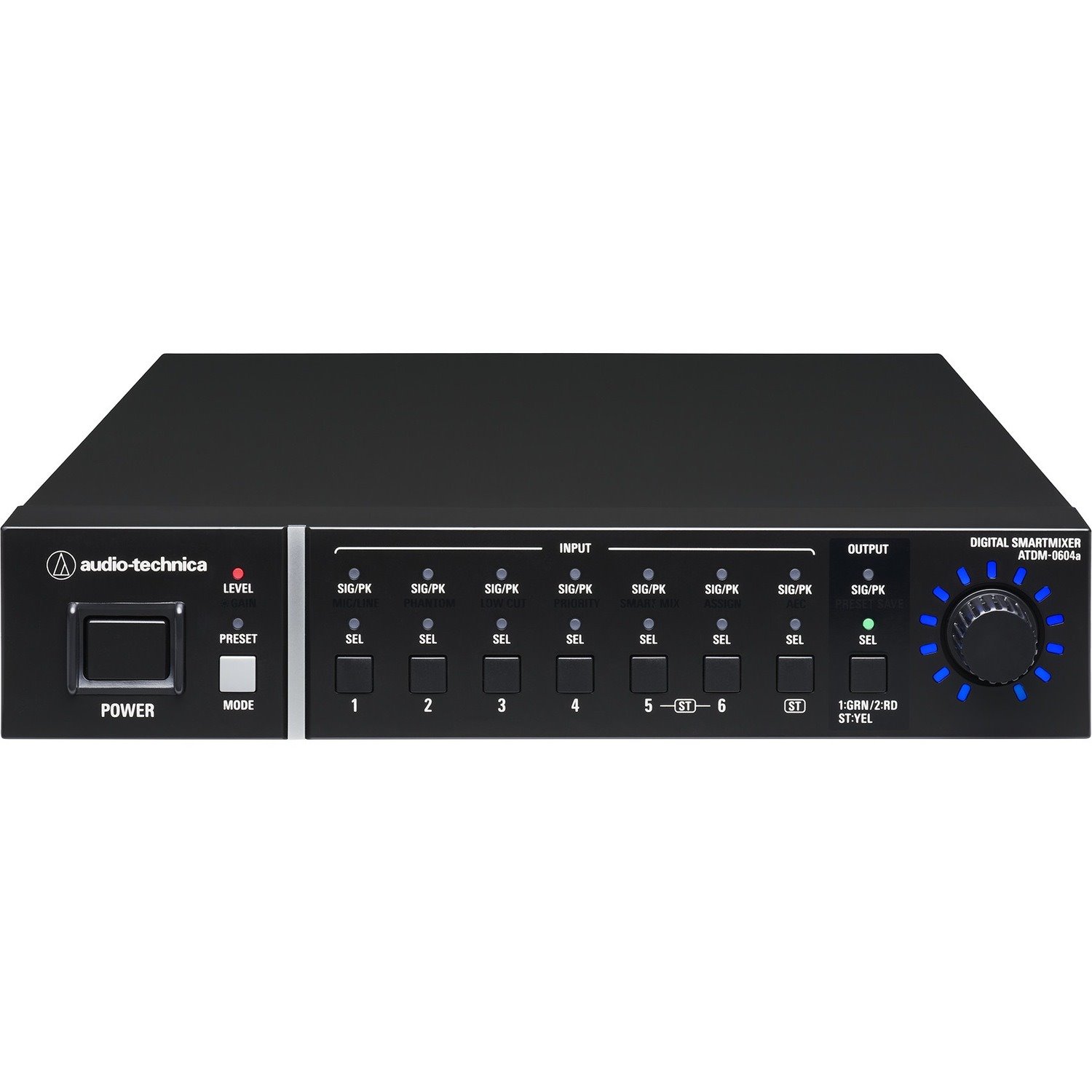

ATDM-0604a
The ATDM-0604a automatic mixer is ideal for meetings, conferences, soft codec applications, courtroom proceedings, radio and TV broadcasts and other applications involving the use of multiple microphones or other media inputs. Audio-Technica's SmartMixer® technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering.
Power and Flexibility 6-Channel SmartMixer®
Featuring 6 balanced mic/line inputs, 1 unbalanced stereo input, 1 balanced and 1 unbalanced stereo outputs, a 2 channel USB interface, and intuitive local or remote control, the ATDM-0604a gives you the power and flexibility to mix with extreme intelligence.
PC - MAC - iOS - Android Web Remote Functionality
While settings can be adjusted on the front panel of the mixer, you are not bound to that. Web Remote functionality allows you to control the mixer from a PC, Mac, iOS or android device.
Mix Channels Automatically 6-Channel Smart Mix (gate or gain sharing)
Audio-Technica's SmartMixer® technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Number of EQ Bands
- 4
- Platform Supported
- PC
- Mac
- iOS
- Android
- Interfaces/Ports
- Microphone
- Yes
- USB
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Power Consumption
- 17 W
- Physical Characteristics
- Mount Type
- Rack Mountable
- Miscellaneous
- Additional Information
- Maximum Gain: 64 dB
- Frequency Characteristics:
- 20 Hz to 20 kHz (MIC -16 dBu): +1.0 / -1.0 dB
- 20 Hz to 20 kHz (MIC -60 dBu): +1.0 / -2.0 dB
- 20 Hz to 20 kHz (LINE 24 dBu): +1.0 / -1.0 dB
- 20 Hz to 20 kHz (LINE -40 dBu): +1.0 / -2.0 dB
- Dynamic Range: 110 dB or higher, A-weighted/ST
- S/N Ratio: 90 dB or higher, A-weighted/ST
- Headroom: 20 dB or higher
- Input Referred Noise:-126 dBu or less, Rs = 150 ohm, DIN
- Common-Mode Rejection Ratio: 80 dB or higher, 1 kHz
- Residual Noise: -86 dBu or less, A-weighted
- Channel Separation: -80 dB or less, 1 kHz unity
- Total Harmonic Distortion: 0.03% or less, 1 kHz unity
- Analog Input:
- MIC 1 to 6 max.: 0 dBu
- MIC 1 to 6 unity? -40 dBu
- LINE 1 to 4 max.: +10 dBV
- LINE 1 to 4 unity: -10 dBV
- LINE 5 to 6 max.: +24 dBu
- LINE 5 to 6 unity: +4 dBu / 0 dBV / -10 dBV / -20 dBV
- ST max.: +10 dBV
- ST unity: -10 dBV / -20 dBV
- Analog Output:
- UNBAL max.: +10 dBV / -13 dBV
- UNBAL unity: -10 dBV / -33 dBV
- BAL 1/L, 2/R max.: +24 dBu / +20 dBV / +10 dBV
- BAL 1/L, 2/R unity: +4 dBu / 0 dBV / -10 dBV
- Power Supply: 100 to 240 V AC (50/60 Hz)
- Power Consumption: 17 W
- Operating Temperature: 0 to 40°C (32 to 104°F)
- Operating Humidity Range: 25 to 85% (with no condensation)
- Application/Usage
- Meeting
- Conferencing
- Device Supported
- Radio
