- General Information
- Manufacturer
- Audio-Technica U.S., Inc
- Manufacturer Website Address
- http://www.audio-technica.com
- Brand Name
- Audio-Technica
- Product Line
- DISTRO4
- Product Type
- Signal Amplifier
RF Venue product distributed by Audio-Technica

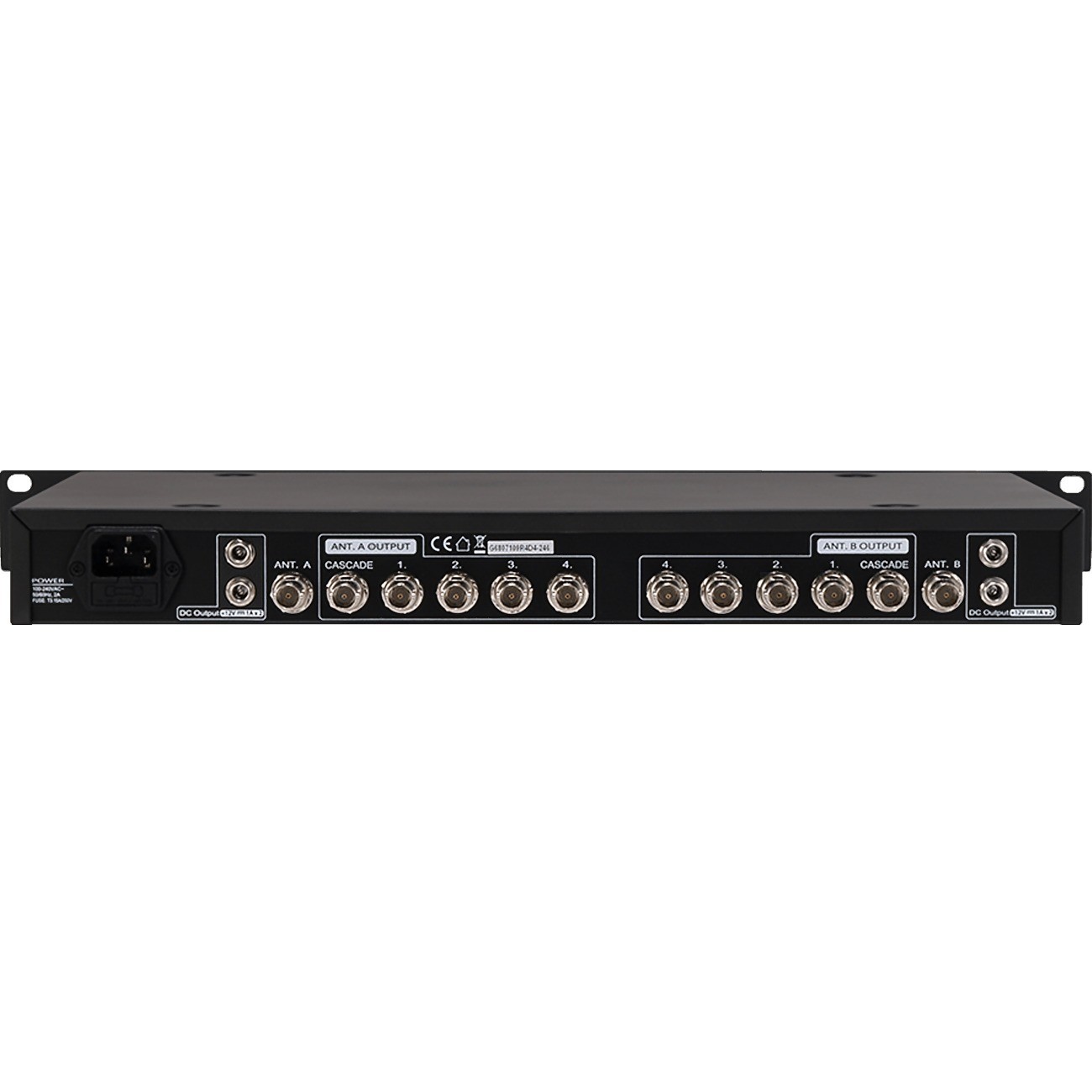

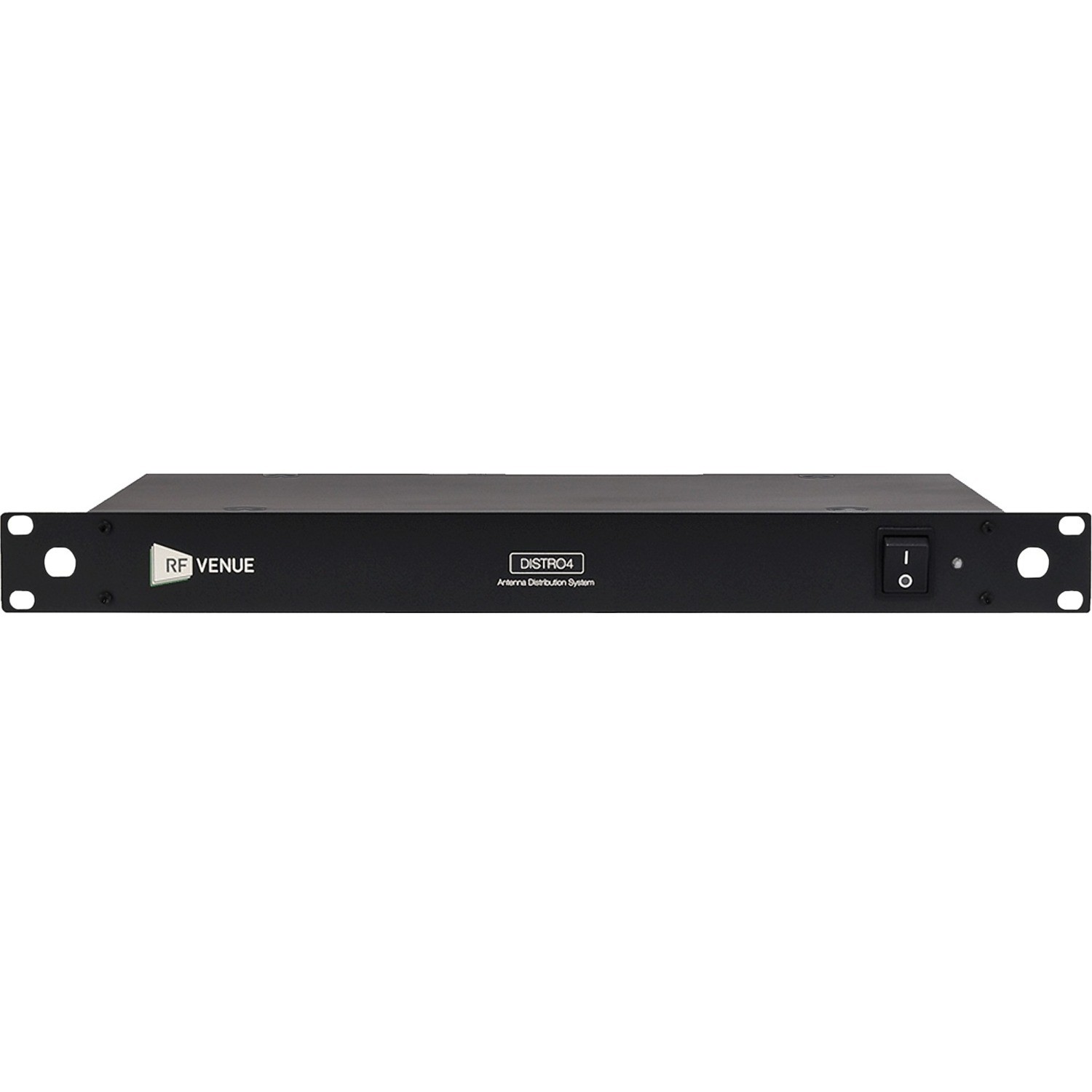

DISTRO4™ is a broadband UHF (470-952 MHz) antenna distribution amplifier that routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system. Four amplified outputs compensate for signal strength lost in the splitting process. Two or more units may be cascaded together to accommodate setups with larger channel counts.
DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. For active antennas and in-line amplifiers, DISTRO4 provides an internal switch to apply 12V DC power over coaxial cable to antenna connections. It includes all RF and DC power cables needed to connect a 4-channel wireless microphone system, as well as cascade to one additional DISTRO4.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Minimum Frequency
- 470 MHz
- Maximum Frequency
- 952 MHz
- Interfaces/Ports
- Number of Antenna Inputs
- 2
- Number of Antenna Outputs
- 10
- BNC In
- Yes
- BNC Out
- Yes
- Power Description
- Input Voltage
- 100 V AC
- 240 V AC
- Physical Characteristics
- Height
- 1.8"
- Width
- 18.9"
- Depth
- 9.8"
- Weight (Approximate)
- 4.74 lb
- Miscellaneous
- Package Contents
- RF Venue Antenna Distribution System DISTRO4
- 1 x AC Cable
- 4 x DC Cables
- 10 x BNC Jumpers
- Environmentally Friendly
- Yes
