- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Product Series
- M50
- Product Type
- Network Camera

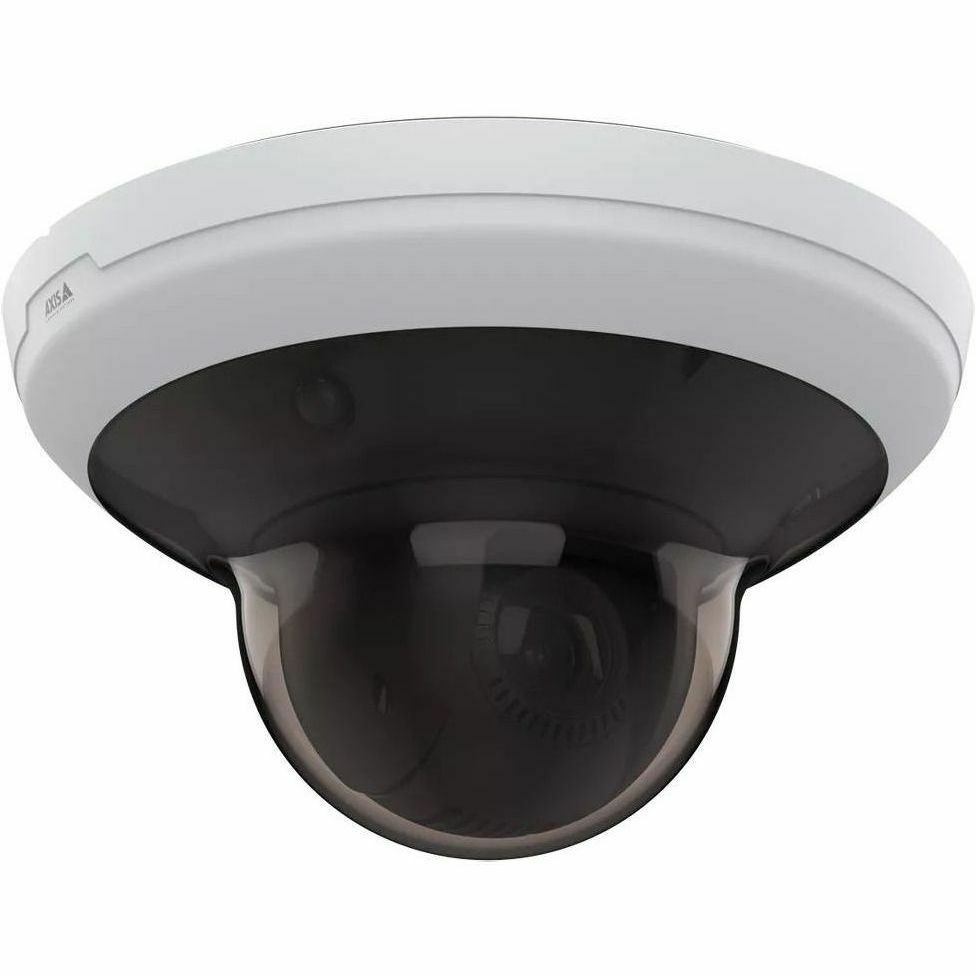

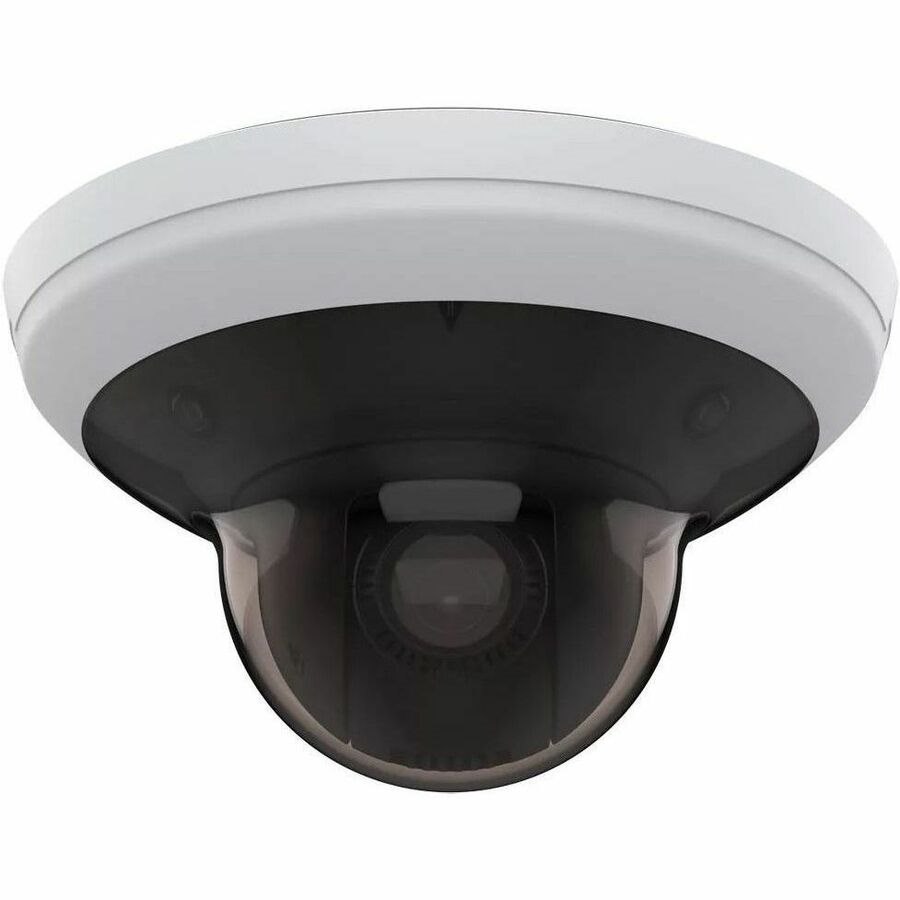

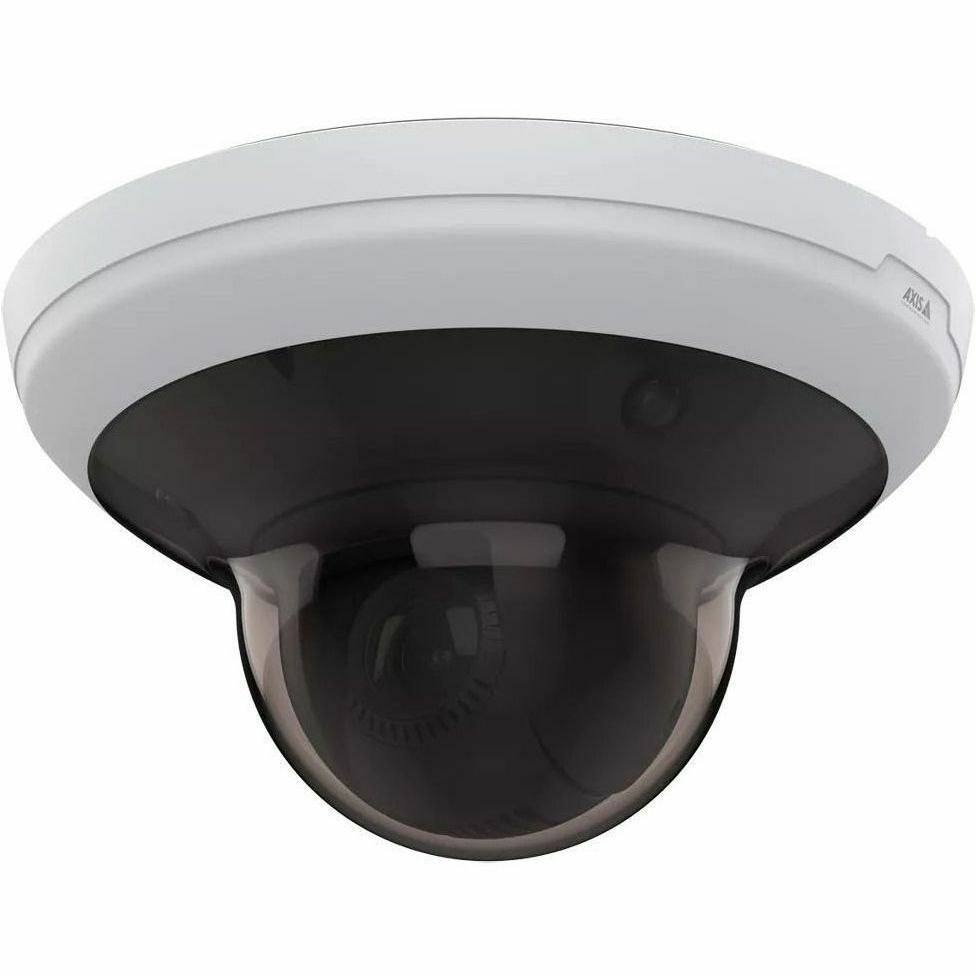

From banks to retail stores, M5000-G PTZ is ideal for a wide variety of indoor applications. This 15 MP indoor camera features three 5 MP sensors and one PTZ camera with 10x optical zoom for total situational awareness and wireless I/O connectivity with Z-Wave Plus® devices.
Total situational awareness
AXIS M5000-G offers total situational awareness of indoor areas up to 400 m2 (4300 ft2). Featuring three 5 MP sensors and one PTZ camera with 10x optical zoom and HDTV 1080p, it lets you benefit from sweeping overviews and you can zoom in to get the details. With everything displayed on one monitor, you can move from overview to detailed views in a single click. And, with autofocus capabilities, you can quickly zoom in on areas of interest. Furthermore, it features indication lights to help deter antisocial and criminal behavior, ideal for retails stores and large indoor areas.
Smart functions
AXIS M5000-G offers wireless I/O connectivity with Z-Wave Plus® devices. This means that the camera can communicate with up to six devices in a system setup. If, for example, a door or a window is opened, the device can automatically alert the camera to change its preset position. Plus, you don't need to manually turn on lights, heating, or air conditioning-you can use Z-Wave Plus to automatically activate these devices. In retail applications, it lets you monitor temperatures in freezers so you can take action - before it's too late. And, because all information from Z-Wave is transferred to the VMS and displayed as overlays in the video stream, you'll always know what's happening.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Recording Formats
- Full HD
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Type
- Color
- Camera Iris
- Auto
- P-iris
- Infrared (IR) Cut-off Filter
- Yes
- Languages Support
- English
- German
- French
- Spanish
- Italian
- Russian
- Simplified Chinese
- Japanese
- Korean
- Portuguese
- Polish
- Traditional Chinese
- Dutch
- Czech
- Swedish
- Finnish
- Turkish
- Thai
- Vietnamese
- Wide Dynamic Range (WDR)
- Yes
- Display & Graphics
- Image Sensor Type
- RGB CMOS
- Image Sensor Size
- 1/2.8"
- Color Supported
- Color
- Field of View
- Horizontal field of view: 61.8°-6.7° Vertical field of view: 36.3°-3.8°
- Effective Camera Resolution
- 5 Megapixel
- Number of Sensors
- 3
- Video
- Video Formats
- H.264
- H.264B
- H.264M
- H.264H
- Zipstream
- H.265
- Motion JPEG
- H.264B (MPEG-4 Part 10/AVC)
- H.264M (MPEG-4 Part 10/AVC)
- H.264H (MPEG-4 Part 10/AVC)
- H.265 (MPEG-H Part 2/HEVC)
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 30 fps
- Audio
- Audio Support
- Yes
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 4.70 mm
- Maximum Focal Length
- 47 mm
- Lens Included
- Yes
- Minimum Aperture
- f/3
- Maximum Aperture
- f/1.6
- Optical Zoom
- 10x
- Exposure
- Shortest Shutter Speed
- 1/66500 Second
- Longest Shutter Speed
- 2 Second
- Network & Communication
- Connectivity Technology
- Wired & Wireless
- Ethernet Technology
- Gigabit Ethernet
- Protocols
- IPv4
- IPv6 USGv6
- ICMPv4/ICMPv6
- HTTP
- HTTPS
- HTTP/2
- TLS
- QoS
- DiffServ (QoS)
- FTP
- SFTP
- CIFS/SMB
- SMTP
- mDNS (Bonjour)
- UPnP
- SNMPv1/v2c/v3 (MIB2)
- DNS/DNSv6
- DDNS
- NTP
- NTS
- RTSP
- RTP
- RTCP
- SRTP/RTSPS
- TCP
- UDP
- IGMPv1/v2/v3
- DHCPv4/v6
- ARP
- SSH
- LLDP
- CDP
- MQTT v3.1.1
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Internal Memory
- 2 GB
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 13.40 W
- Input Voltage
- 20 V DC
- 28 V DC
- Power Source Type
- PoE
- DC
- Physical Characteristics
- Form Factor
- Dome
- Product Material
- Plastic
- Polycarbonate
- Height
- 5.4"
- Diameter
- 9.7"
- Weight (Approximate)
- 4.30 lb
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Minimum Storage Temperature
- -40°F (-40°C)
- Maximum Storage Temperature
- 149°F (65°C)
- Minimum Operating Humidity (Non-condensing)
- 10%
- Maximum Operating Humidity (Non-condensing)
- 85%
- Minimum Storage Humidity (Non-condensing)
- 5%
- Maximum Storage Humidity (Non-condensing)
- 95%
- Miscellaneous
- Features
- PTZ
- Video Management System
- Wide Dynamic Range
- Built-in Microphone
- Audio Detection
- Motion Detection
- Removable IR Cut-off Filter
- Day/Night
- Password Protection
- HTTPS Encryption
- Privacy Masking
- Indoor/Outdoor
- Indoor
- Package Contents
- Installation Guide
- Windows decoder 1-user license
- drill hole template
- terminal block connectors
- connector guard
- bayonette screws
- Ingress Protection Rating
- IP51
