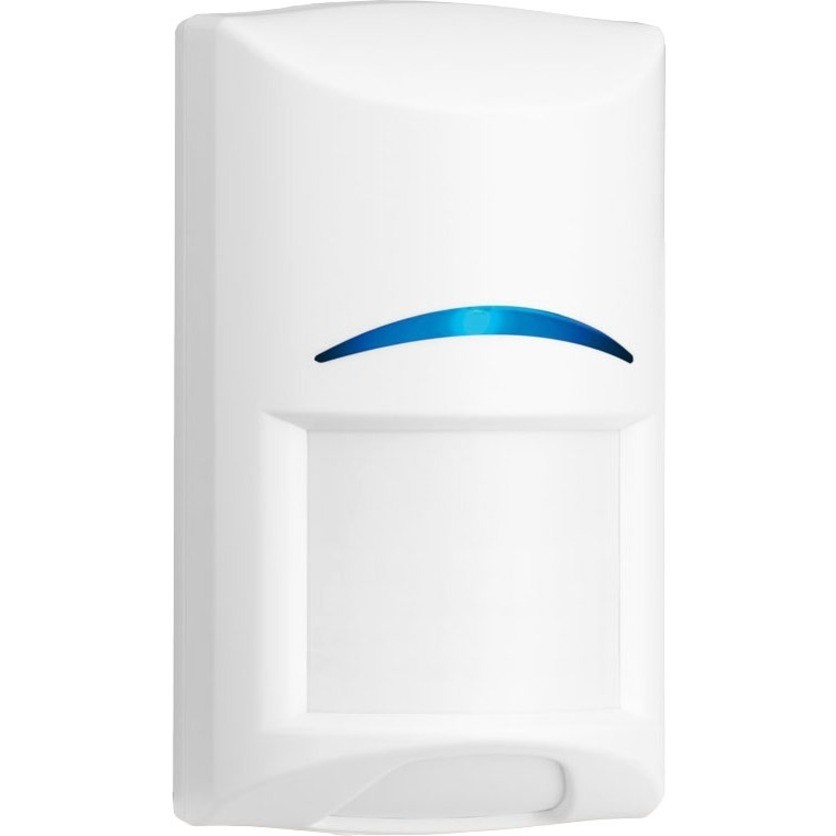

The Blue Line Gen2 PIR Motion Detectors (ISC-BPR2) use two Fresnel lenses designed to produce sharply-focused images throughout the field of view providing superior response to intruders. These lenses provide a high density (77 zone) 7-layer pattern, and the selectable lookdown lens provides an additional three lookdown zones. Easy installation and flexible mounting options provide state-othe-art detection.
- General Information
- Manufacturer
- The Bosch Group
- Manufacturer Website Address
- http://www.bosch.com
- Brand Name
- Bosch
- Product Line
- Blue Line Gen2
- Product Type
- Motion Sensor
- Technical Information
- Maximum Motion Sensing Distance
- 40 ft
- Passive Infrared Sensor (PIR)
- Yes
- Power Description
- Input Voltage
- 15 V DC
- Physical Characteristics
- Product Color
- White
- Product Material
- ABS Plastic
- Mount Type
- Wall Mount
- Height
- 4.2"
- Width
- 2.4"
- Depth
- 1.7"
- Miscellaneous
- Package Contents
- 1 x Blue Line Gen2 PIR Motion Detector
- 2 x Anchor (#6, #8 x 7/8)
- 2 x Screw ( #6 x 1.25)
- 1 x Cable Tie (2.5 mm)
- 1 x Literature - Installation Guide
- Application/Usage
- Residential/Commercial
