The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs.
Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10-inch weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation.

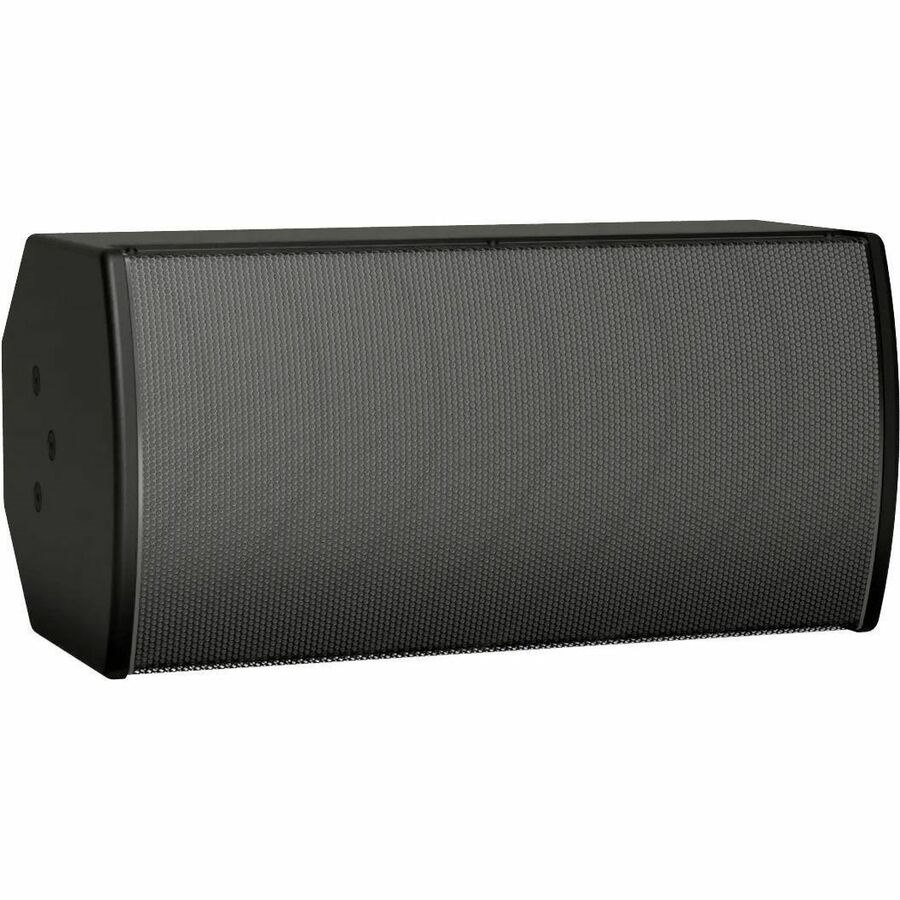

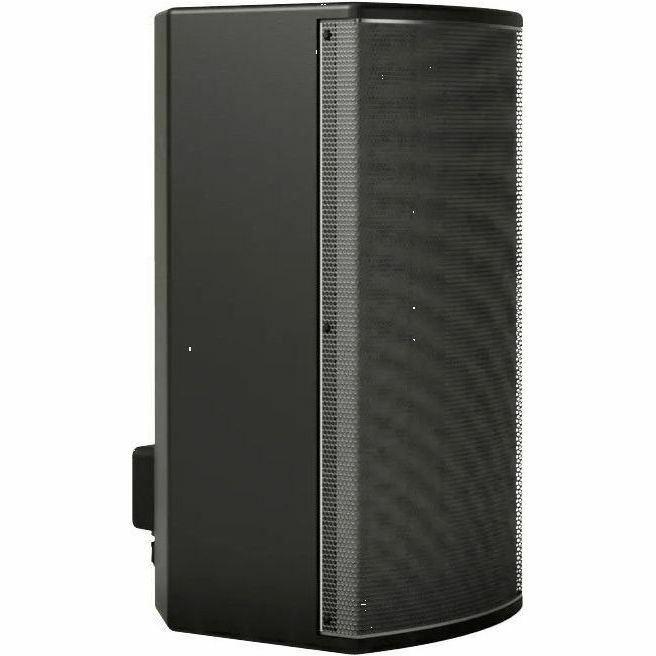

AMU108-120 provides wide, even coverage with a rotatable 120° × 60° constant-directivity high-frequency horn, 90 Hz - 16 kHz frequency response, and 121 dB peak SPL, delivering excellent output in a compact enclosure.
Features
- Two-way transducer setup, featuring a high excursion woofer and high-frequency compression driver, enhanced by a passive crossover with optimized filters
- IP55 weather-rated with three-layer stainless steel grille, water-resistant woofer, industrial polyurethane exterior coating, and molded cover for input panel protection
- Weather-sealed internal 70/100V transformer with tap setting switch and 8-ohm bypass

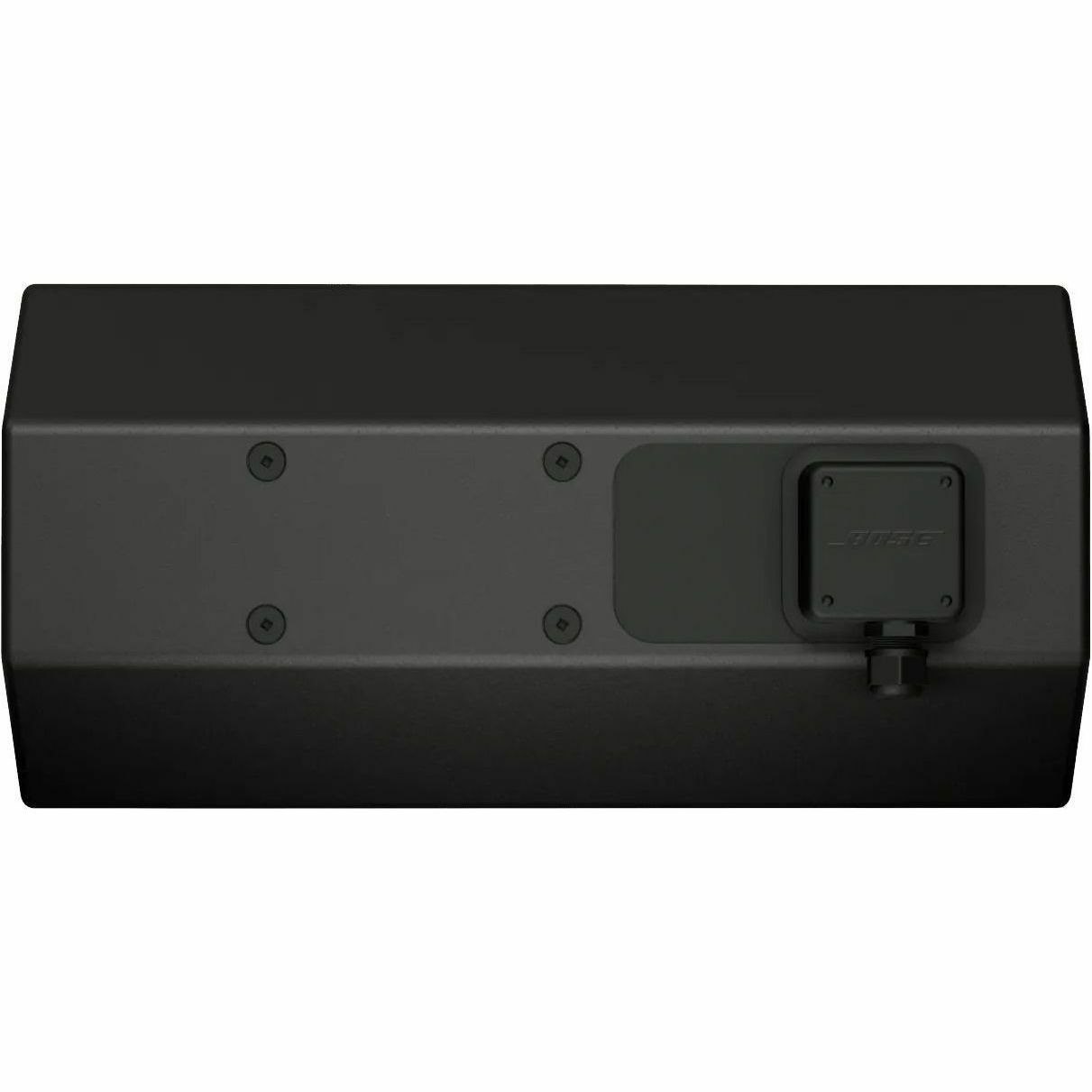

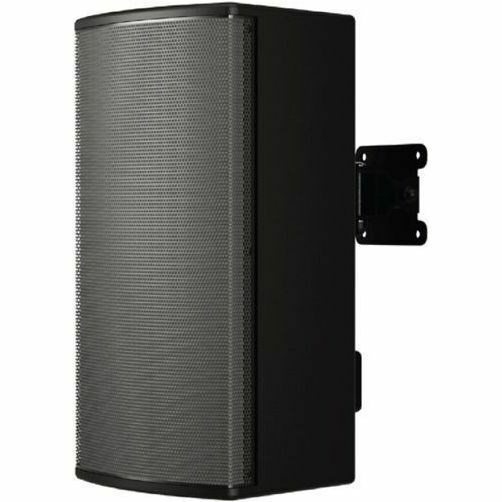

- Stainless-steel U-bracket with rear-enclosure M8 threaded inserts to accept third-party accessory mounting hardware

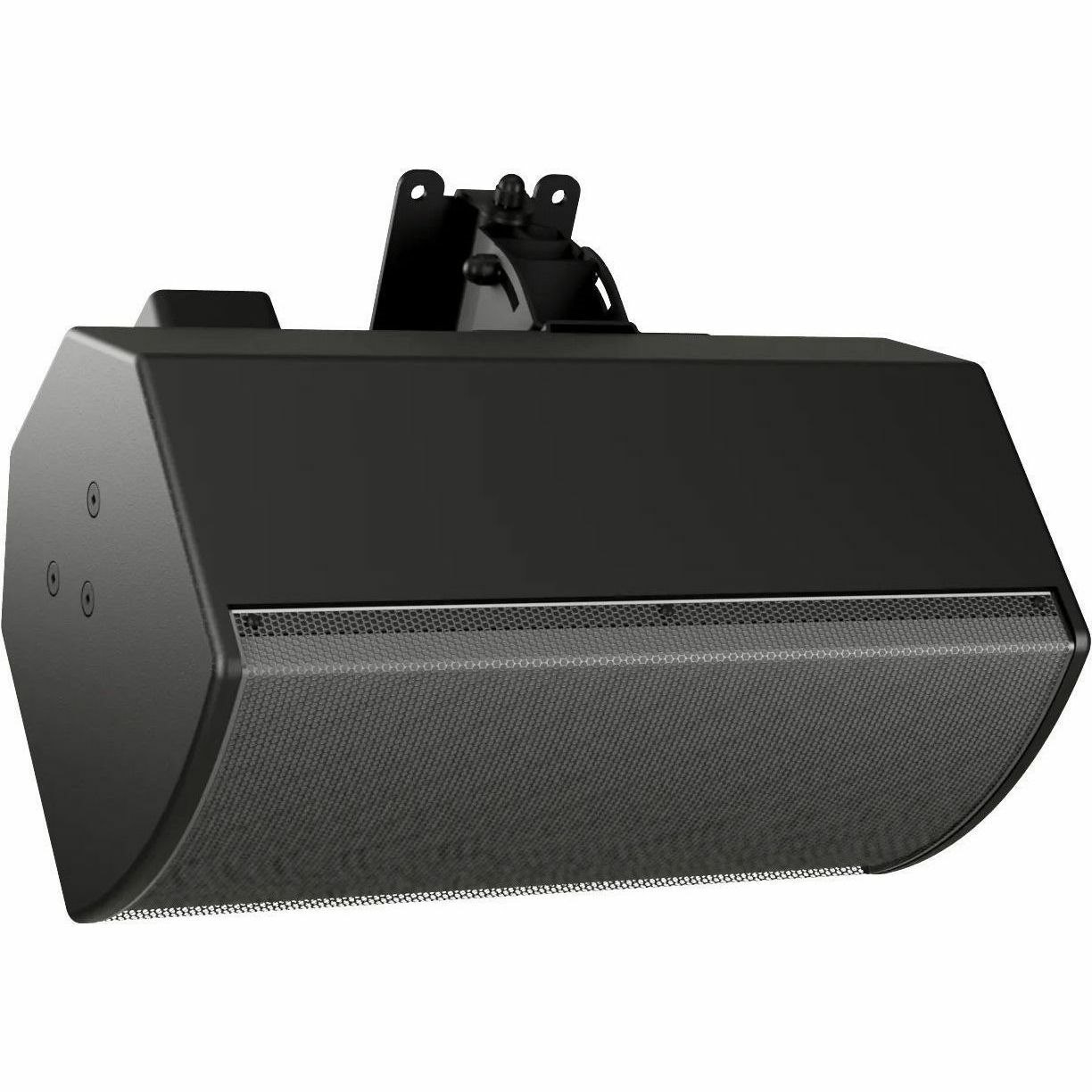

- Compatible accessories include: surface-mount pan-and-tilt bracket, single-point suspension bracket with multi-angle attachment points, and external pole adapter for portable use
- Compact cabinet construction with rust-resistant suspension points
- Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
- Easy integration with Bose Professional electronics and loudspeakers makes configuration and operation much simpler and quicker
- AMU is a stocked product with no custom order or surcharge
- Available in black or white finish to match the design of your project
Applications
Designed for a wide range of applications, including:
- Bars, high-energy restaurants
- Fitness centers
- Auditoriums
- Medium/small places of worship
- Gathering/common areas with live performances
- General Information
- Manufacturer
- Bose Corporation
- Manufacturer Website Address
- http://www.bose.com
- Brand Name
- Bose Professional
- Product Line
- ArenaMatch Utility
- Product Series
- AMU
- Packaged Quantity
- 1
- Product Type
- Speaker
- Technical Information
- Crossover Type
- 2-way
- RMS Output Power
- 200 W
- PMPO Output Power
- 800 W
- Minimum Frequency Response
- 80 Hz
- Maximum Frequency Response
- 18 kHz
- Impedance
- 8 Ohm
- Sensitivity
- 90 dB
- Ingress Protection (IP) Rating
- IP55
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Surface Mount
- Durability
- Rust Resistant
- Water Resistant
- Height
- 9.3"
- Width
- 18.5"
- Depth
- 10.98"
- Weight (Approximate)
- 23.37 lb
- Miscellaneous
- Package Contents
- ArenaMatch AMU108-120 Compact High-performance Loudspeaker
- 1 x Input Cover
- 1 x Installation Guide
- 1 x T3 Square Drive
- 1 x U-bracket
- 2 x Rubber Washers
- 4 x M4 Screws
- 4 x M8 Screws
- Application/Usage
- Indoor
- Outdoor
- Restaurant
- Bar
- Gym
- Auditorium
- House of Worship
- Sport Center
- Activity Area
- Hall
- Outdoor Dining
- Hospitality
- Lodging
- Concourse
- Public Walkway
- Pool
- Park
