- General Information
- Manufacturer
- Christie Digital Systems, Inc
- Manufacturer Website Address
- http://www.christiedigital.com
- Brand Name
- Christie Digital
- Product Series
- HS
- Product Type
- DLP Projector

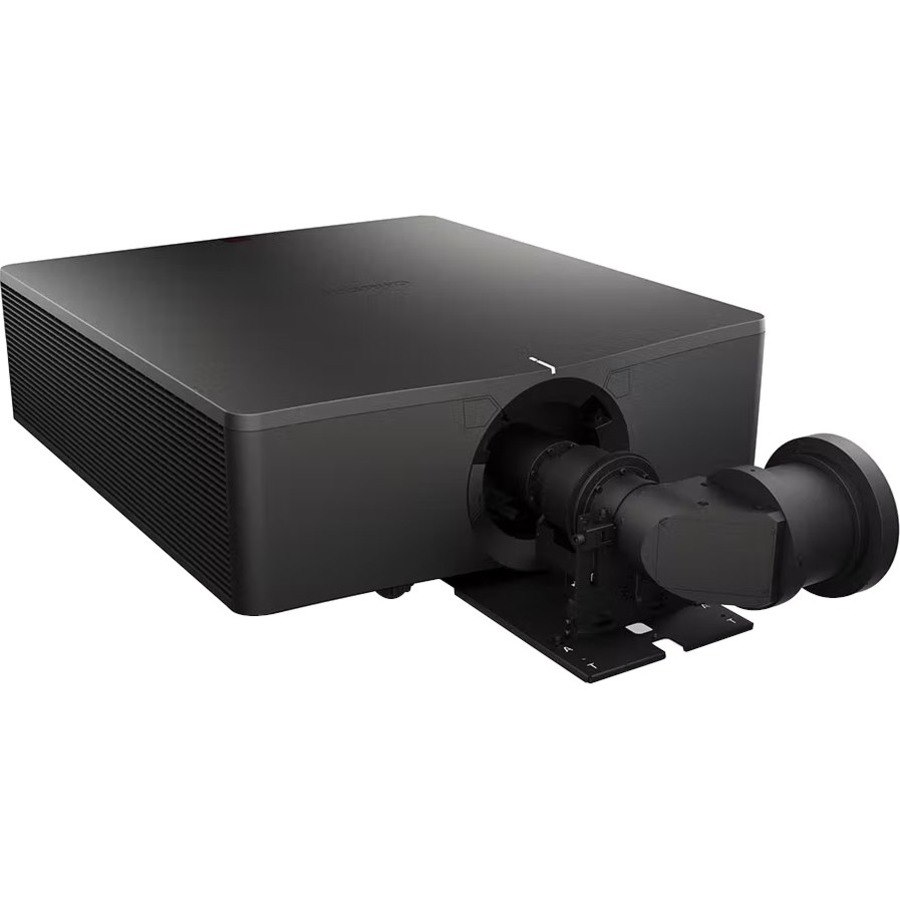

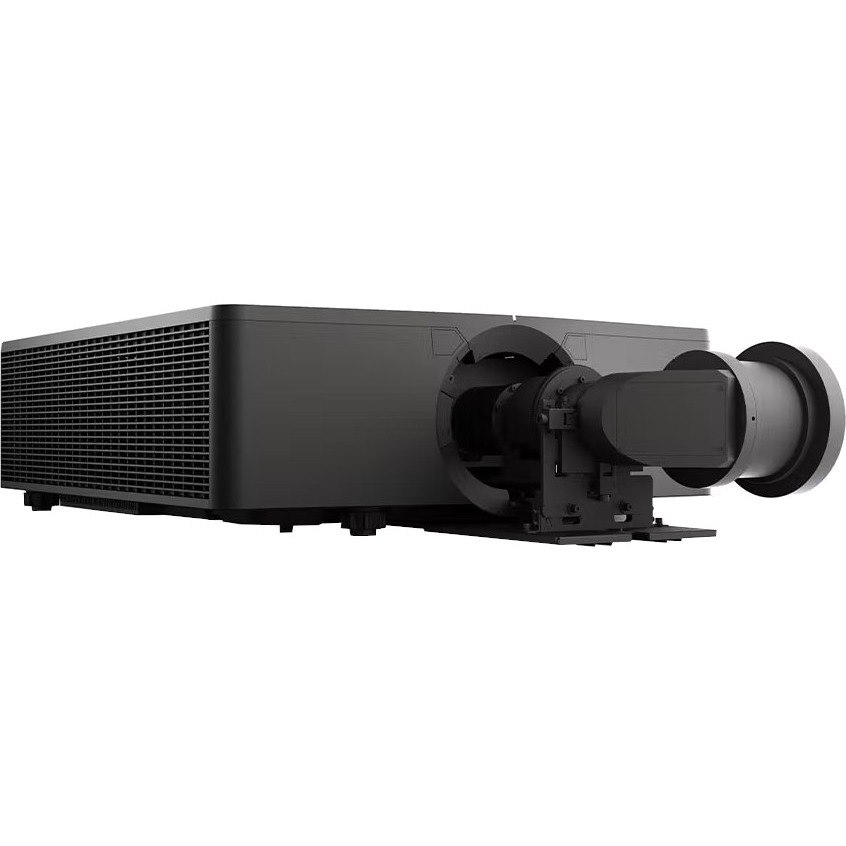

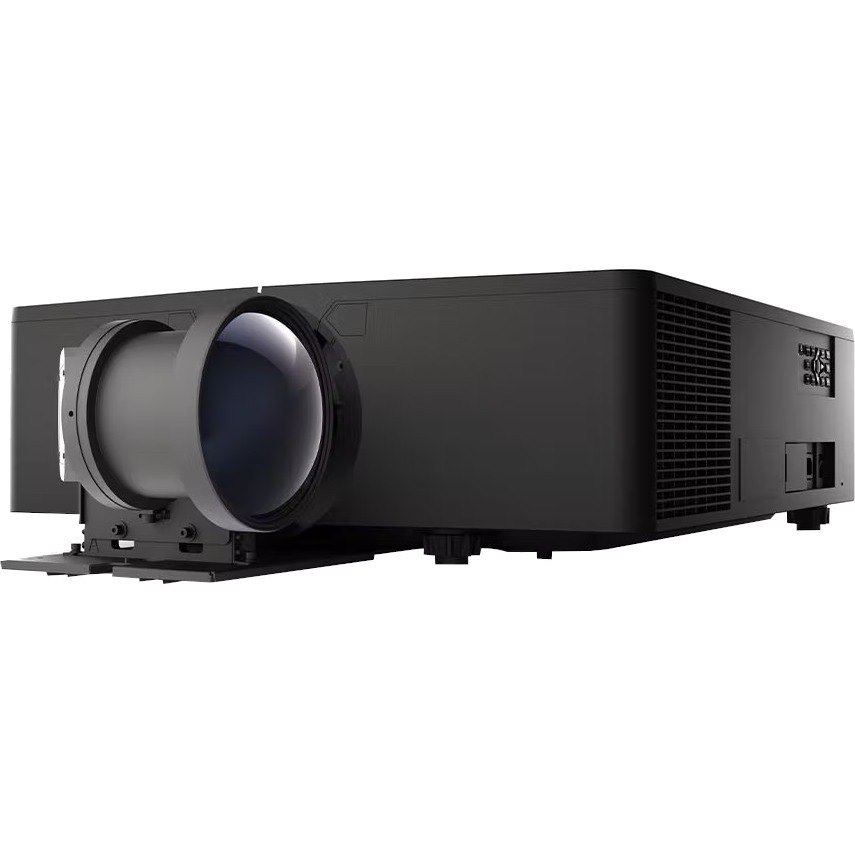

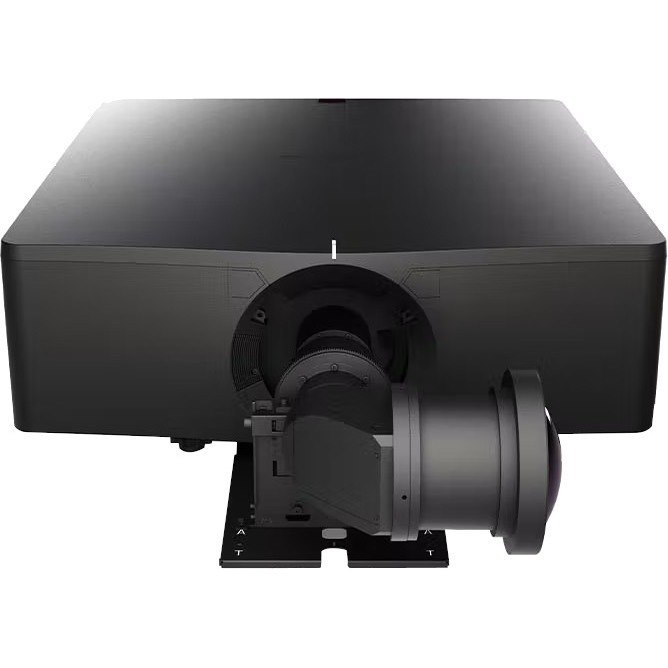

Enjoy the performance of advanced electronics. With 13,500 lumens, the Christie D13WU2-HS is equipped with advanced 1DLP laser projection technology to operate at full-brightness on a single 15A, 110V circuit. There's no need for high-power runs. Simply plug into a standard outlet and start the show!
Visuals are stunning thanks to the enhanced color accuracy of Christie's BoldColor Technology and WUXGA resolution. The long-lasting and reliable laser light source and affordability of 1DLP technology means the D13WU2-HS is a cost-effective option for high-use applications. Featuring the built-in Christie Twist warping and blending engine, and compatible with Christie Mystique automated camera-based alignment solutions, the D13WU2-HS gives you the tools you need to quickly and easily set up, align, and maintain irregular screens and multi-projector displays.
Key features
- Christie BoldColor Technology - Enhanced color performance and saturation over standard laser projection
- Long-life laser light source - Up to 20,000 hours to 50% brightness of virtually maintenance-free operation
- Warp and blend - Built-in Christie Twist for quick and easy setup of multi-projector displays
- Compatible with Christie Mystique - Automated camera-based alignment solutions that eliminate the challenges, time and expertise required to align, stack, warp and blend complex multi-projector arrays and projection mapping experiences
- Fully omnidirectional - Unrestricted design and installation flexibility
- Lens compatibility - Designed to work with all Christie HS Series lenses for added cost-savings and versatility
- Comprehensive connectivity - Full connectivity for popular formats including 3GSDI for added redundancies
- Advanced electronics - Firmware updates take only minutes
- Medical Training Capable - DICOM simulation mode for advanced grayscale image reproduction, perfect for analyzing x-rays and medical scans for training purposes
- TAA Compliant
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
- Three years parts and labor on the projector
- Three years or 20,000 hours parts and labor on the illumination system
- Technical Information
- Projection Method
- Front
- 3D Type
- 3D
- Display & Graphics
- Maximum Resolution
- 1920 x 1200
- Lamp
- Number of Lamps
- 1
- Lamp Type
- Laser/Phosphor
- Normal Mode Lamp Life
- 20000 Hour
- Image
- Standard Mode Brightness
- 13500 lm
- Contrast Ratio
- 2,000,000:1
- Minimum Vertical Sync
- 24 Hz
- Maximum Vertical Sync
- 85 Hz
- Video
- Video Signal Standard
- HDTV
- Output Scan Format
- 1080p
- Interfaces/Ports
- HDMI
- Yes
- SDI
- Yes
- SDI Standard
- 3G-SDI
- USB
- Yes
- Network (RJ-45)
- Yes
- Power Description
- Operating Power Consumption
- 1050 W
- Physical Characteristics
- Product Color
- Black
- Color Family
- Black
- Height
- 8"
- Width
- 23.5"
- Depth
- 26.7"
- Weight (Approximate)
- 91.71 lb
- Miscellaneous
- Application/Usage
- Medical
- Training
- Package Contents
- D13WU2-HS 13,500 Lumen, WUXGA, 1DLP Laser Projector, BoldColor Technology
- IR Remote With Wired Remote Jack (Wire Not Included)
- AC Line Cords For Projector Head
- User Manual
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
