- General Information
- Manufacturer
- Christie Digital Systems, Inc
- Manufacturer Website Address
- http://www.christiedigital.com
- Brand Name
- Christie Digital
- Product Type
- DLP Projector

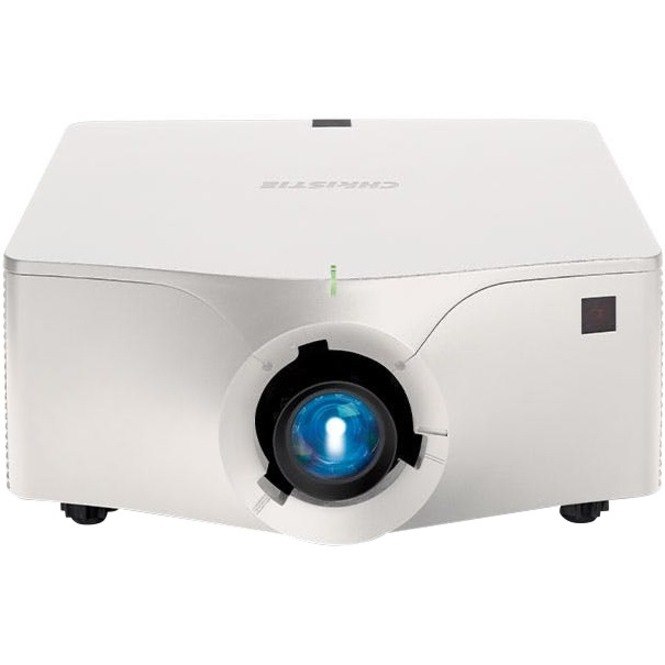

Featuring laser illumination in white or black projector color options, the Christie® DWU880-GS 1DLP® projector eliminates the need for lamp and filter replacements, providing 20,000 hours of life. Its small footprint, light weight, quiet operation, full suite of lenses and 24/7 operation durability makes this projector ideal for higher education, places of worship, conferences and smaller location-based entertainment venues. This model is also offered in a TAA complaint variant.
Built-in Christie Twist™ allows you to seamlessly edge-blend and stack multiple projected images on any 2D or 3D surface and precisely control the geometry of each projector through an easy-to-use grid-point / mesh interface.
Working in conjunction with Twist, Christie Mystique™ automates multi-projector warping and blending. With the click of a mouse, the camera-based software automatically aligns, stacks, and blends multi-projector systems in minutes with unsurpassed accuracy. For simple 2D setups using up to 3 projectors in a single horizontal array on a flat screen or surface, you can download Mystique Lite at no additional cost and purchase an inexpensive supported webcam to get started.
Key features
- Built-in warping, blending, & alignment - Built-in proprietary Christie Twist™ and Christie Mystique™ compatibility, for manual or automated camera-based warping, blending, and alignment
- Durability - 20,000 hours of consistent illumination performance makes it ideal for 24/7 operation applications
- Motorized interchangeable lens suite - Easy powered zoom, focus, and offset using the remote control.
- Flexible Connectivity - Optional wireless module for device flexibility, easy presentation set up and standard HDBaseT input
- Omnidirectional - Operates in any orientation for unlimited installation flexibility
- Eco Mode - Reduces brightness to 50%, significantly extends the lifetimes of your projector, and results in quieter operation
- Supports Full HD 3D content - For 3D with a single or multi-projector setup via 3D sync in/out capabilities
- HDBaseT - Delivers Full HD video, audio, network, and control commands on a single ethernet cable
- Picture-in-Picture/Picture-by-Picture - Simultaneously deliver 2 digital signals via HDMI & DVI ports for enhanced virtual conferencing
- Medical Training Capable - DICOM simulation mode for advanced grayscale image reproduction, perfect for analyzing x-rays and medical scans for training purposes
- TAA Compliant
- Warranty
- Limited Warranty
- 5 Year
- Additional Warranty Information
- 5 years Parts and Labor on the projector
- Technical Information
- Projection Method
- Front
- Ceiling
- Display & Graphics
- Native Resolution
- 1920 x 1200
- Graphic Mode
- WUXGA
- Lamp
- Number of Lamps
- 1
- Lamp Type
- Laser/Phosphor
- Normal Mode Lamp Life
- 20000 Hour
- Image
- Standard Mode Brightness
- 9500 lm
- Contrast Ratio
- 300,000:1
- Minimum Vertical Sync
- 24 Hz
- Maximum Vertical Sync
- 120 Hz
- Video
- Video Signal Standard
- HDTV

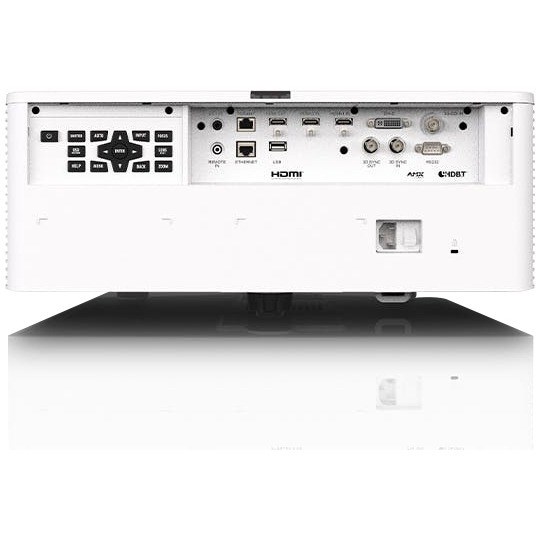

- Interfaces/Ports
- HDMI
- Yes
- DVI
- Yes
- SDI
- Yes
- SDI Standard
- 3G-SDI
- USB
- Yes
- Network (RJ-45)
- Yes
- Power Description
- Operating Power Consumption
- 670 W
- Physical Characteristics
- Product Color
- White
- Color Family
- White
- Form Factor
- Ceiling Mountable
- Height
- 7.5"
- Width
- 21.9"
- Depth
- 18.9"
- Weight (Approximate)
- 41.90 lb
- Miscellaneous
- Package Contents
- DWU880-GS 9,500 Lumen, WUXGA, 1DLP Laser Projector
- IR Remote with Wired Remote Jack (Wire not Included)
- AC Line Cord for Projector Head
- Rear Input/Keypad Panel Cover
- User Manual
- TAA Compliant
- Yes
