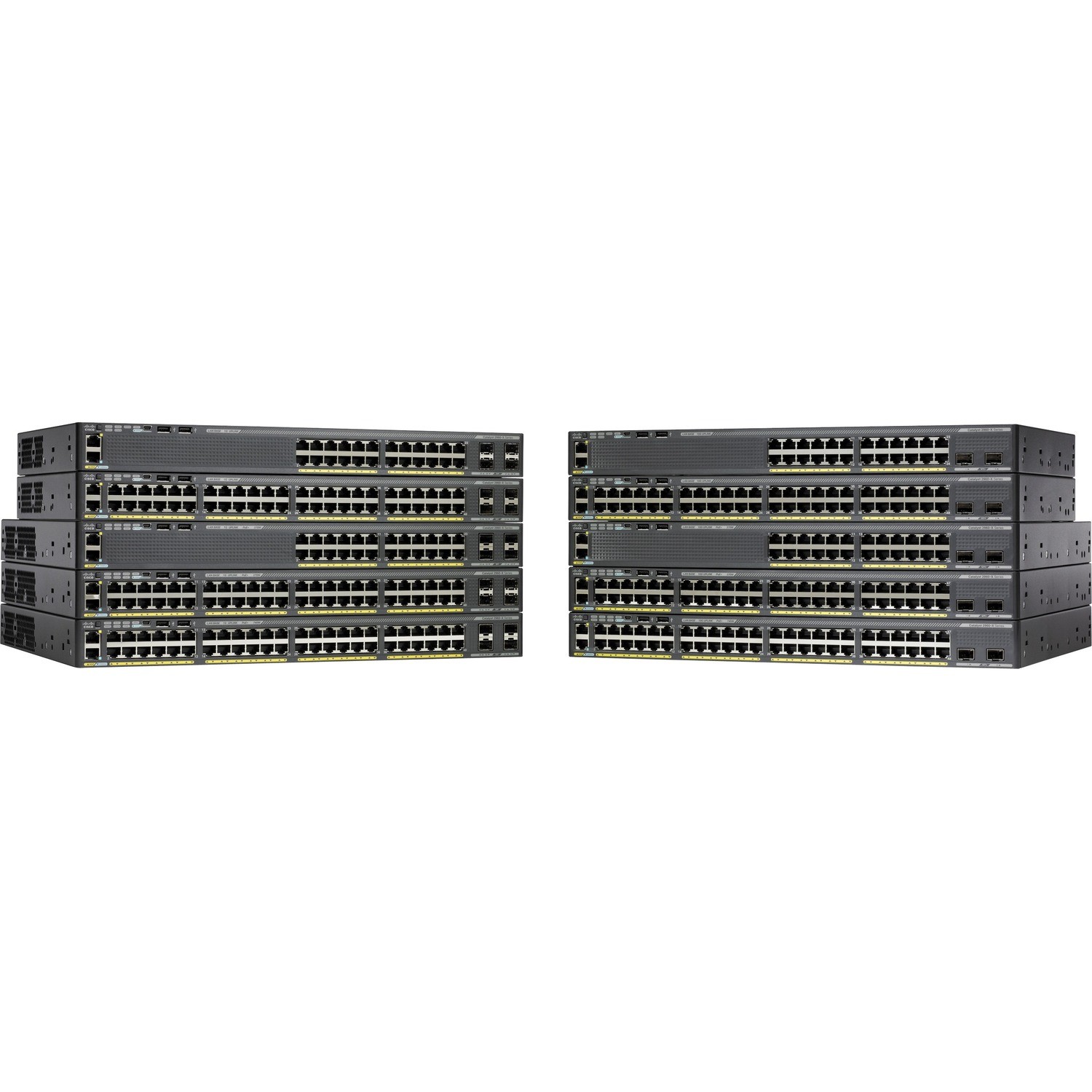

- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Catalyst
- Product Series
- 2960-X
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Uplink Port
- Yes
- Management Port
- Yes
- USB
- Yes
- Number of PoE+ (RJ-45) Ports
- 24
- Stack Port
- No
- Number of Network (RJ-45) Ports
- 24
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Twisted Pair Cable Standard
- Category 5
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 4
- Network & Communication
- Layer Supported
- 2
- Memory
- Standard Memory
- 512 MB
- Flash Memory
- 128 MB
- Power Description
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 28 W
- Physical Characteristics
- Form Factor
- Desktop
- Rack-mountable
- Height
- 1.8"
- Width
- 17.5"
- Depth
- 11"
- Weight (Approximate)
- 8.82 lb
- Miscellaneous
- Certifications & Standards
- Standards:
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1p CoS Prioritization
- IEEE 802.1Q VLAN
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1ab (LLDP)
- IEEE 802.3ad
- IEEE 802.3af and IEEE 802.3at
- IEEE 802.3ah (100BASE-X single/multimode fiber only)
- IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- RMON I and II standards
- SNMP v1, v2c, and v3
- IEEE 802.3az
- IEEE 802.3ae 10Gigabit Ethernet
- IEEE 802.1ax
RFC compliance:
- RFC 768 - UDP
- RFC 783 - TFTP
- RFC 791 - IP
- RFC 792 - ICMP
- RFC 793 - TCP
- RFC 826 - ARP
- RFC 854 - Telnet
- RFC 951 - Bootstrap Protocol (BOOTP)
- RFC 959 - FTP
- RFC 1112 - IP Multicast and IGMP
- RFC 1157 - SNMP v1
- RFC 1166 - IP Addresses
- RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery
- RFC 1305 - NTP
- RFC 1492 - TACACS+RFC 1493 -Bridge MIB
- RFC 1542 - BOOTP extensions
- RFC 1643 - Ethernet Interface MIB
- RFC 1757 - RMON
- RFC 1901 - SNMP v2C
- RFC 1902 - 1907 -SNMP v2
- RFC 1981 - Maximum Transmission Unit (MTU) Path Discovery IPv6
- FRC 2068 - HTTP
- RFC 2131 - DHCP
- RFC 2138 - RADIUS
- RFC 2233 - IF MIB v3
- RFC 2373 - IPv6 Aggregatable Addrs
- RFC 2460 - IPv6
- RFC 2461 - IPv6 Neighbor Discovery
- RFC 2462 - IPv6 Autoconfiguration
- RFC 2463 - ICMP IPv6
- RFC 2474 - Differentiated Services (DiffServ) Precedence
- RFC 2597 - Assured Forwarding
- RFC 2598 - Expedited Forwarding
- RFC 2571 - SNMP Management
- RFC 3046 - DHCP Relay Agent Information Option
- RFC 3376 - IGMP v3
- RFC 3580 - 802.1X RADIUS
- Country of Origin
- China
- Environmentally Friendly
- Yes
