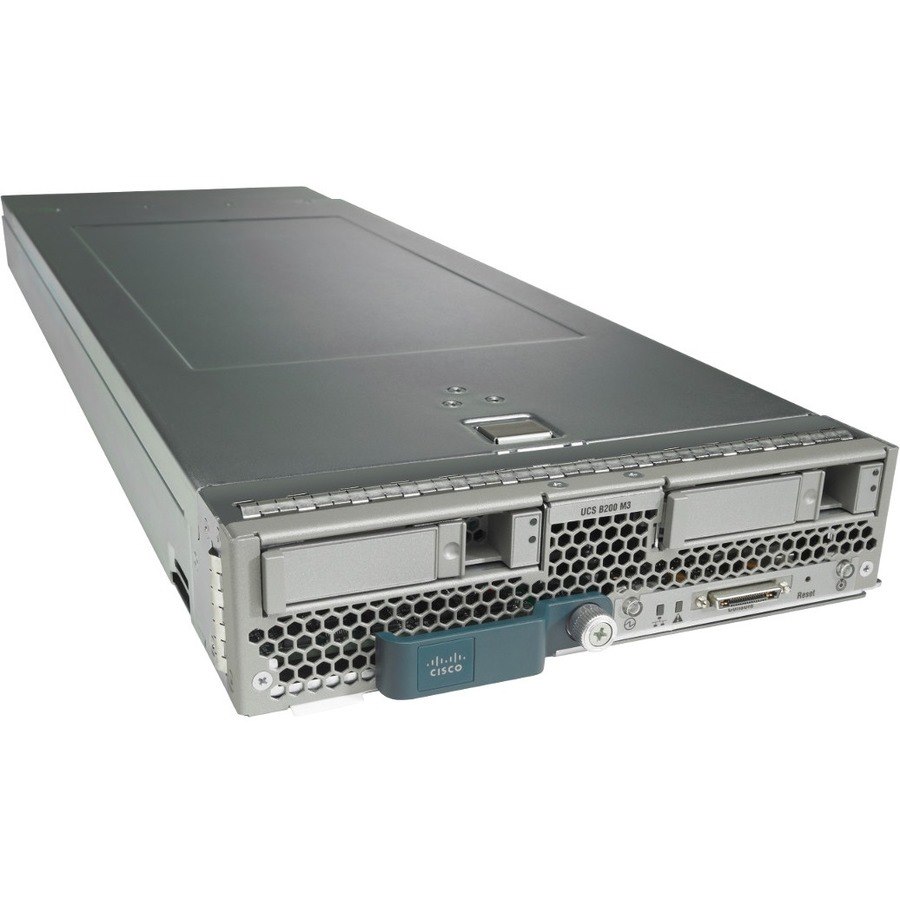

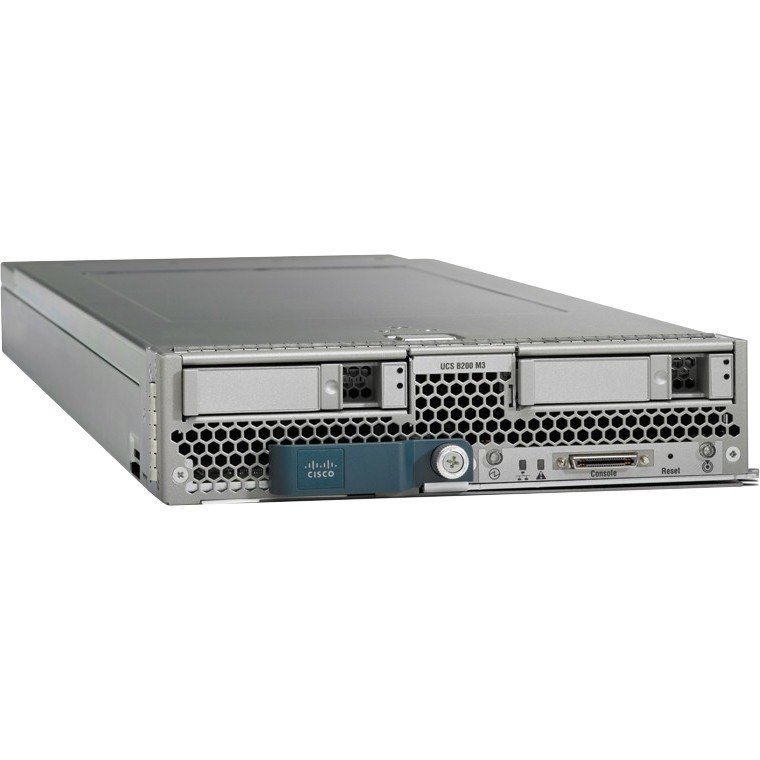

Cisco UCS Servers Change the Economics of the Data Center
IT infrastructure matters now more than ever, as organizations seek to achieve the full potential of infrastructure as a service (IaaS), bare metal, virtualized servers, and cloud computing. Cisco continues to lead in Data Center innovation with the introduction of new building blocks for the Cisco Unified Computing System that extend its exceptional simplicity, agility, and efficiency . Innovations such as the Cisco UCS B200 M3 Blade Server bring even better industry-leading performance from IT infrastructure to enterprise applications.
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- B200 M3
- Product Type
- Server
- Processor
- Number of Processors Supported
- 2
- Number of Processors Installed
- 2
- Processor Type
- Xeon
- Processor Model
- E5-2690 v2
- Processor Core
- Deca-core (10 Core)
- Processor Speed
- 3 GHz
- Maximum Turbo Speed
- 3.60 GHz
- Cache
- 25 MB
- QuickPath Interconnect
- 8 GT/s
- 64-bit Processing
- Yes
- Hyper-Threading
- Yes
- Memory
- Standard Memory
- 256 GB
- Maximum Memory Supported
- 768 GB
- Memory Technology
- DDR3 SDRAM
- Memory Standard
- DDR3-1866/PC3-14900
- Total Number of Memory Slots
- 24
- Memory Card Reader
- Yes
- Memory Card Supported
- SD
- SDHC
- Controllers
- Controller Type
- Serial Attached SCSI (SAS)
- RAID Supported
- Yes
- RAID Levels
- 0, 1
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Form Factor
- Blade
- Miscellaneous
- Certifications & Standards
- Regulatory Compliance:
- Products should comply with CE Markings according to directives 2004/108/EC and 2006/108/EC
- UL 60950-1 No. 21CFR1040 Second Edition
- CAN/CSA-C22.2 No. 60950-1 Second Edition
- IEC 60950-1 Second Edition
- EN 60950-1 Second Edition
- AS/NZS 60950-1
- GB4943 2001
- 47CFR Part 15 (CFR 47) Class A
- AS/NZS CISPR22 Class A
- CISPR2 2 Class A
- EN55022 Class A
- ICES003 Class A
- VCCI Class A
- EN61000-3-2
- EN61000-3-3
- KN22 Class A
- CNS13438 Class A
- EN55024
- CISPR24
- EN300386
- KN24
