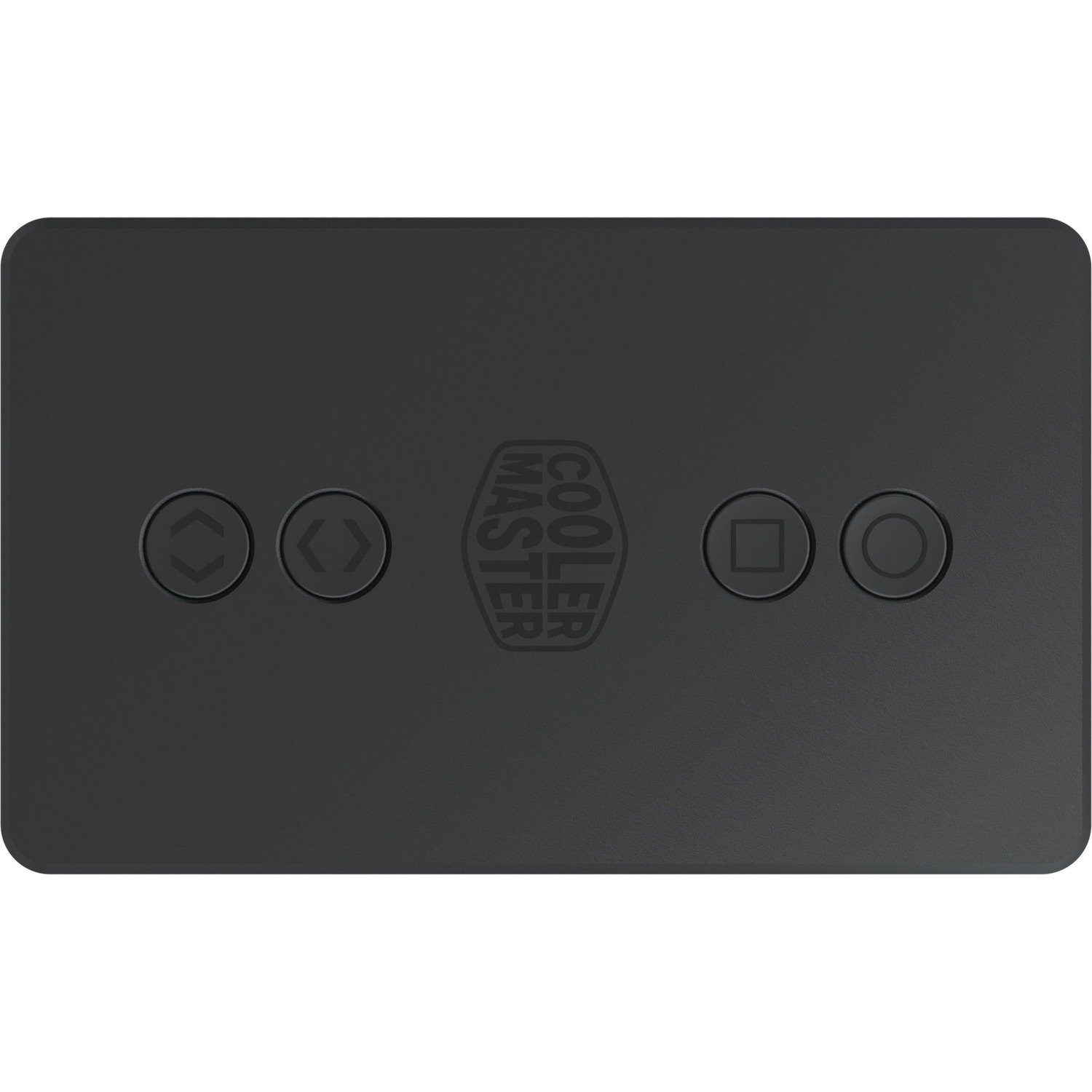

ADDRESSABLE RGB LED CONTROLLER

Convenient and compact design-With built-in magnets, it can be attached to any metallic surface.

COMPATIBLE WITH MOTHERBOARD CONTROL OF LIGHTING

With header Connection to Motherboard as well as compatible with motherboard software to control lighting.

EASY TO SWITCH BETWEEN ARGB AND RGB LIGHTING CONTROL

1. LED Mode Adjustment

2. ARGB & RGB lighting Mode

3. LED Color Adjustment

4. LED Speed Adjustment

THERMAL DETECTION FUNCTION

With Thermal Detection Cable, temperature can be monitored and displayed through color lighting effects

RESET BUTTON

Reset Button on your Case can also control the lighting

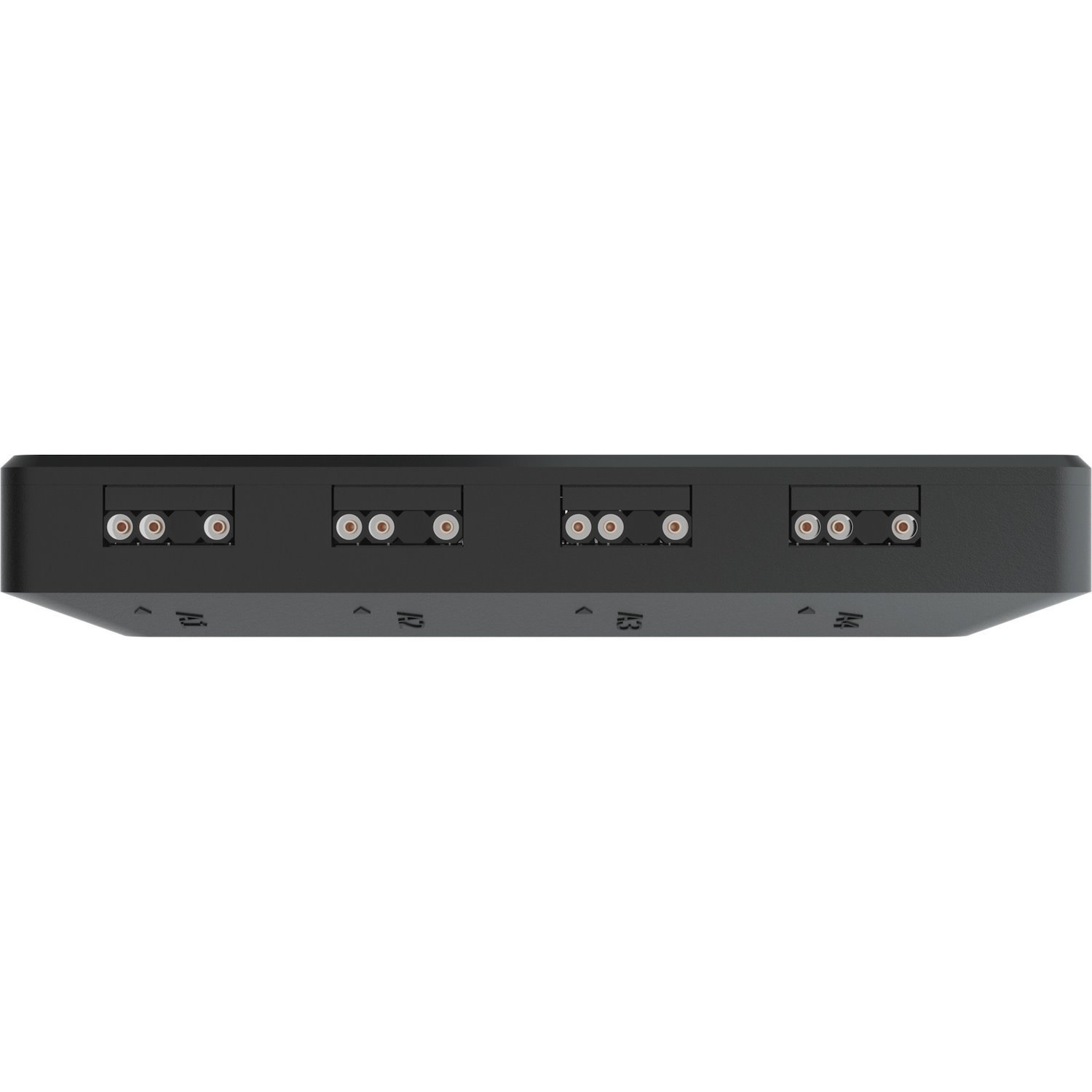

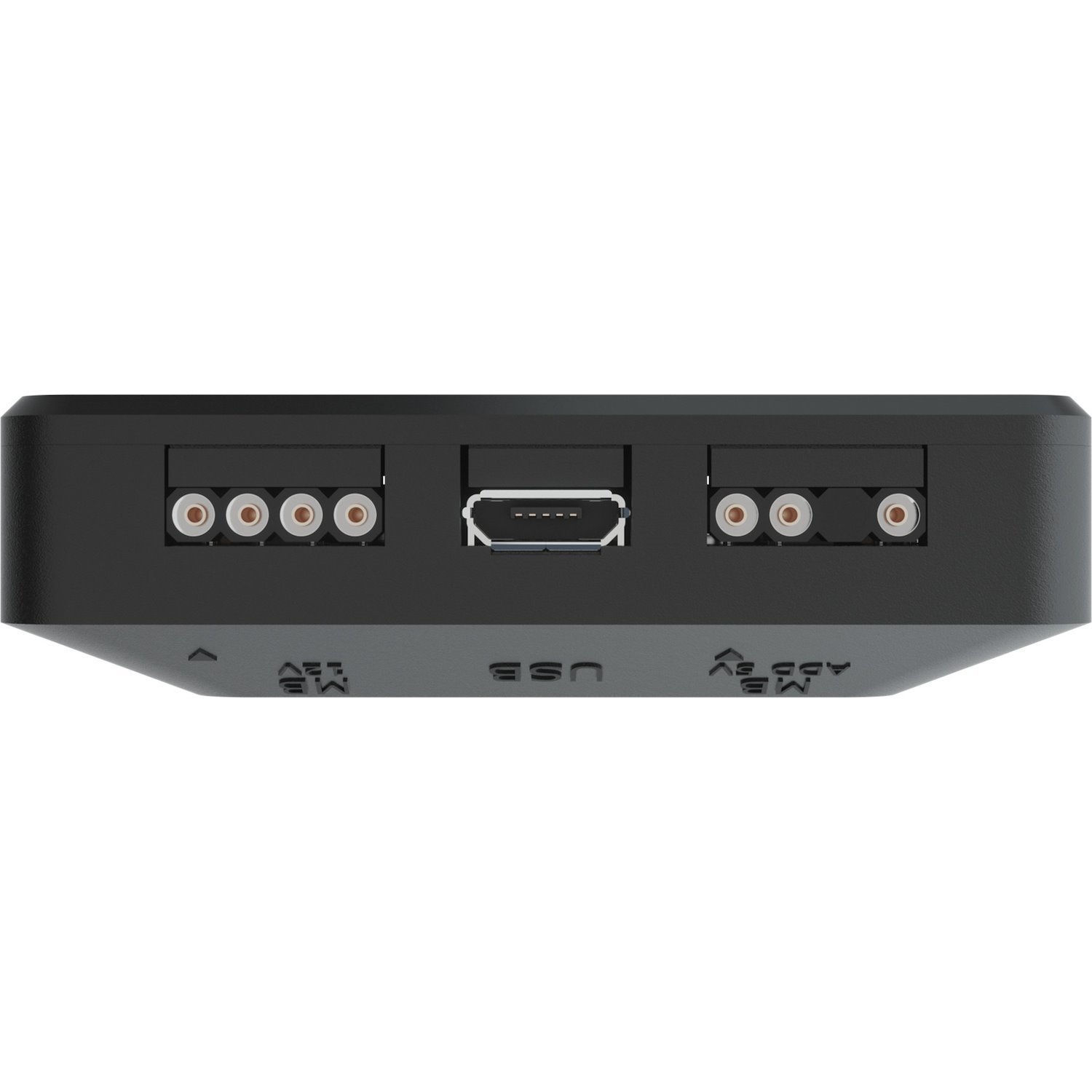

FUNCTION OF EACH CONNECTION

1. To connect Motherboard 4-Pin RGB header. Lighting can be controlled by Motherboard.

2. To connect USB of Motherboard, to update firmware of controller for more lighting effect.

3. To connect Motherboard 3-Pin ARGB header. Lighting can be controlled by Motherboard.

4. To connect 3-Pin ARGB fan.

5. Signal tracing header.

6. Case Reset header.

7. Motherboard Reset header.

8. Thermal Detection header.

• General Information
• • Manufacturer
  • Cooler Master Co., Ltd
  • Manufacturer Website Address
  • http://www.coolermaster.com
  • Brand Name
  • Cooler Master
  • Product Type
  • LED Lighting Controller

• Warranty
• • Limited Warranty
  • 2 Year
