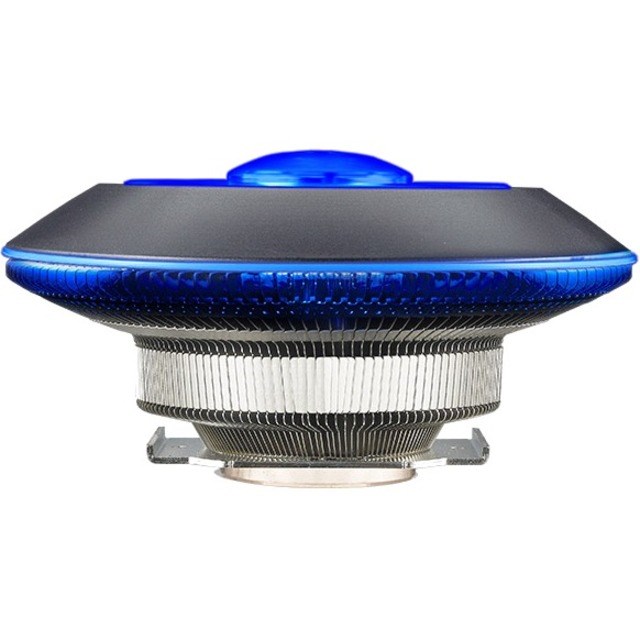

REDEFINING COOLING AGAIN MASTERAIR G100M with RGB Controller
BREAK-THROUGH IN HEAT TRANSFER
The contact with CPU and heat transfer has been improved with an entire block of Heat Column for thermal conductivity and phase transition. This revoluationary design enables low profile design to reach TDP of 130W that matches peformance of regular sized heatsinks.
7X LARGER DIAMATER THAN HEATPIPES
Super quick heat transfer is made possible with Heat Column at a massive Ø41.2, the equivalent of 7X the size of traditional heatpipes. The unification of heatpipes and base into one unit captures and effiicienty transfers the heat from CPU like never seen before.
LOW PROFILE FOR MINI-ITX BUILDS
The low profile G100M stands at 74.5mm, a great fit for slim PC cases, including mini-ITX cases. Even at these small dimensions, the heatsink has cooling capacity of 130W TDP.
RGB LED ILLUMINATION (CONTROLLER INCLUDED)
A wired RGB LED controller is included with theM100M to personalize the RGB lighting anytime you want (no software needed). Switch it up depending on your mood, the possibilities are not limitless.
TOP DOWN AIR FLOW PERFORMANCE
A high peformance 92mm PWM fan with a range of 600 ~ 2400 RPM, cools not only the CPU, but all surrounding components inside the case for exceptional thermal results.
QUICK AND EASY INSTALLATION
Tool-free mounting kit makes installation a breeze. Universal retention brackets are included, with full compatbiliity for:
Intel® LGA 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775
- General Information
- Manufacturer
- Cooler Master Co., Ltd
- Manufacturer Website Address
- http://www.coolermaster-usa.com
- Brand Name
- Cooler Master
- Product Line
- MasterAir G100M
- Product Type
- Cooling Fan/Heatsink
- Warranty
- Limited Warranty
- 2 Year
- Fan Information
- Number of Fans
- 1
- Fan Speed (Max)
- 2400 rpm
- Maximum Airflow
- 22.63 CFM
- Noise Levels (A-Weighted)
- 30 dB(A)
- Fan Life
- 31.9 Year
- LED Color
- RGB
- Heatsink Information
- Compatible Intel Socket
- R4 LGA-2066
- LGA 2011-v3
- R LGA-2011
- H4 LGA-1151
- H3 LGA-1150
- H2 LGA-1155
- H LGA-1156
- B LGA-1366
- T LGA-775
- Compatible AMD Socket
- AM3 PGA-941
- FM2
- AM2+ PGA-940
- FM1
- AM3+
- AM4
- AM2 PGA-940
- FM2+
- Interfaces/Ports
- Connectors
- 4-pin PWM
- Physical Characteristics
- Product Material
- Copper
- Heatsink Material
- Aluminum
- Heatsink Height
- 5.63"
- Heatsink Width
- 5.63"
- Heatsink Depth
- 2.04"
- Fan Height
- 3.94"
- Fan Width
- 3.94"
- Fan Depth
- 0.98"
- Height
- 5.7"
- Width
- 0.6"
- Depth
- 2.9"
- Miscellaneous
- Package Contents
- MasterAir G100M with RGB Controller
- Wired RGB LED Controller
- Tool-free Mounting Kit
- Universal Retention Brackets
- Application/Usage
- Processor
- Case
- Country of Origin
- China
