- General Information
- Manufacturer
- CP Technologies
- Manufacturer Website Address
- http://www.cptechusa.com
- Brand Name
- LevelOne
- Product Series
- HVE-660
- Product Type
- Video Extender Transmitter
The LevelOne HVE-660 Series is an innovative HDMI-over-IP Video Wall Distribution Solution. Designed with transmitting units (HVE-6601T) and receiving units (HVE-6601R), it is exceptionally scalable, offering any combination up to 9 x 9 matrix video wall arrangement. The HVE-660 Series riches video wall connectivity options to public premises such as sports bars, cinemas, transport stations, or highly demanded monitoring sites such as emergency response centers, security organization, or traffic monitoring units.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Video
- Maximum Video Resolution
- 1920 x 1080
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI In
- Yes
- Serial Port
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of HDMI Inputs
- 1
- Media & Performance
- Twisted Pair Cable Standard
- Category 7
- Power Description
- Input Voltage
- 5 V DC
- Physical Characteristics
- Transmitter Height
- 1.10"
- Transmitter Width
- 4.49"
- Transmitter Depth
- 5.51"
- Transmitter Weight (Approximate)
- 1.76 lb
- Miscellaneous
- Package Contents

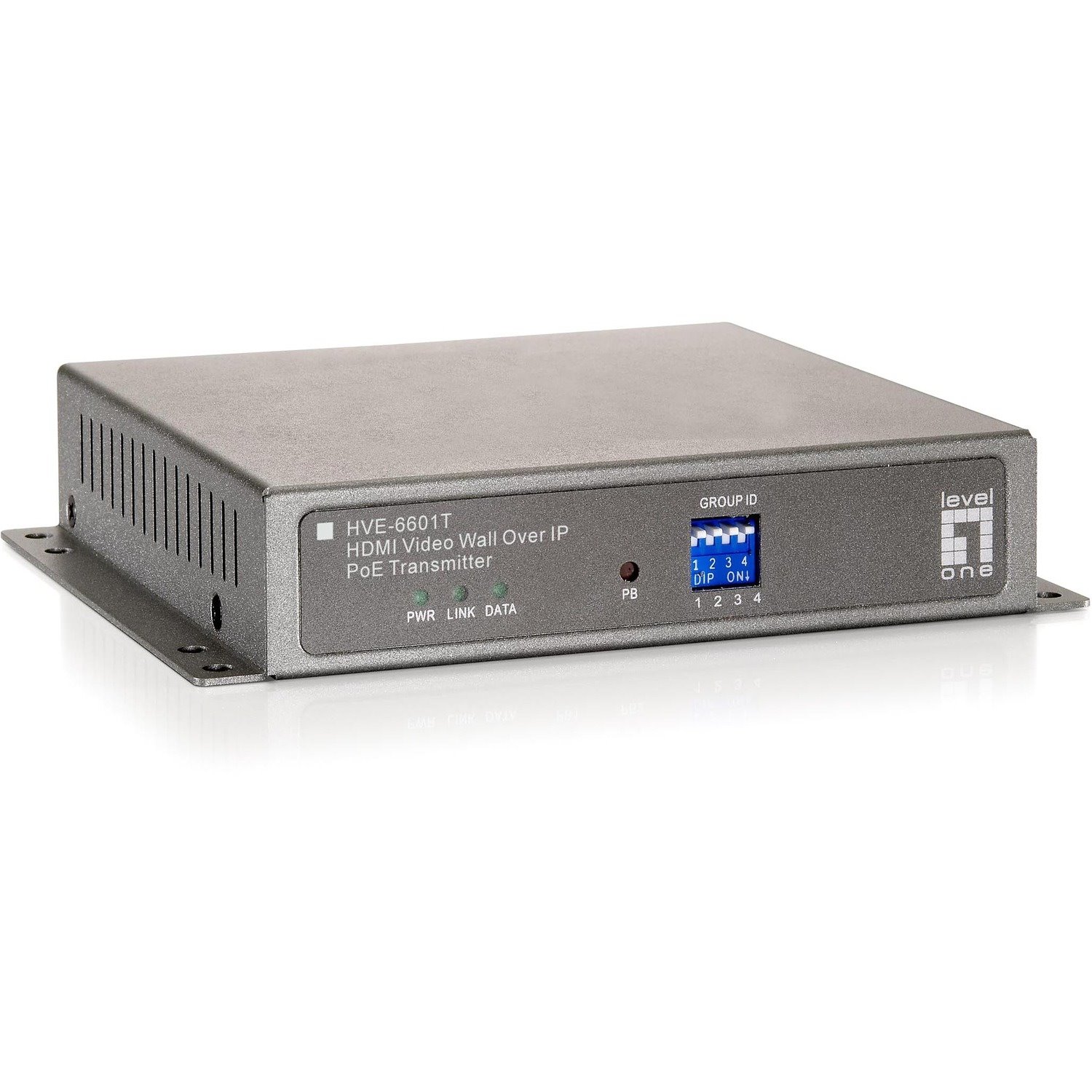

- HDMI Video Wall Over IP PoE Transmitter
- Power Adapter
- CD Manual/Utility
- Quick Installation Guide
- RS-232 Y-Cable
- Certifications & Standards
- CE
- FCC
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
