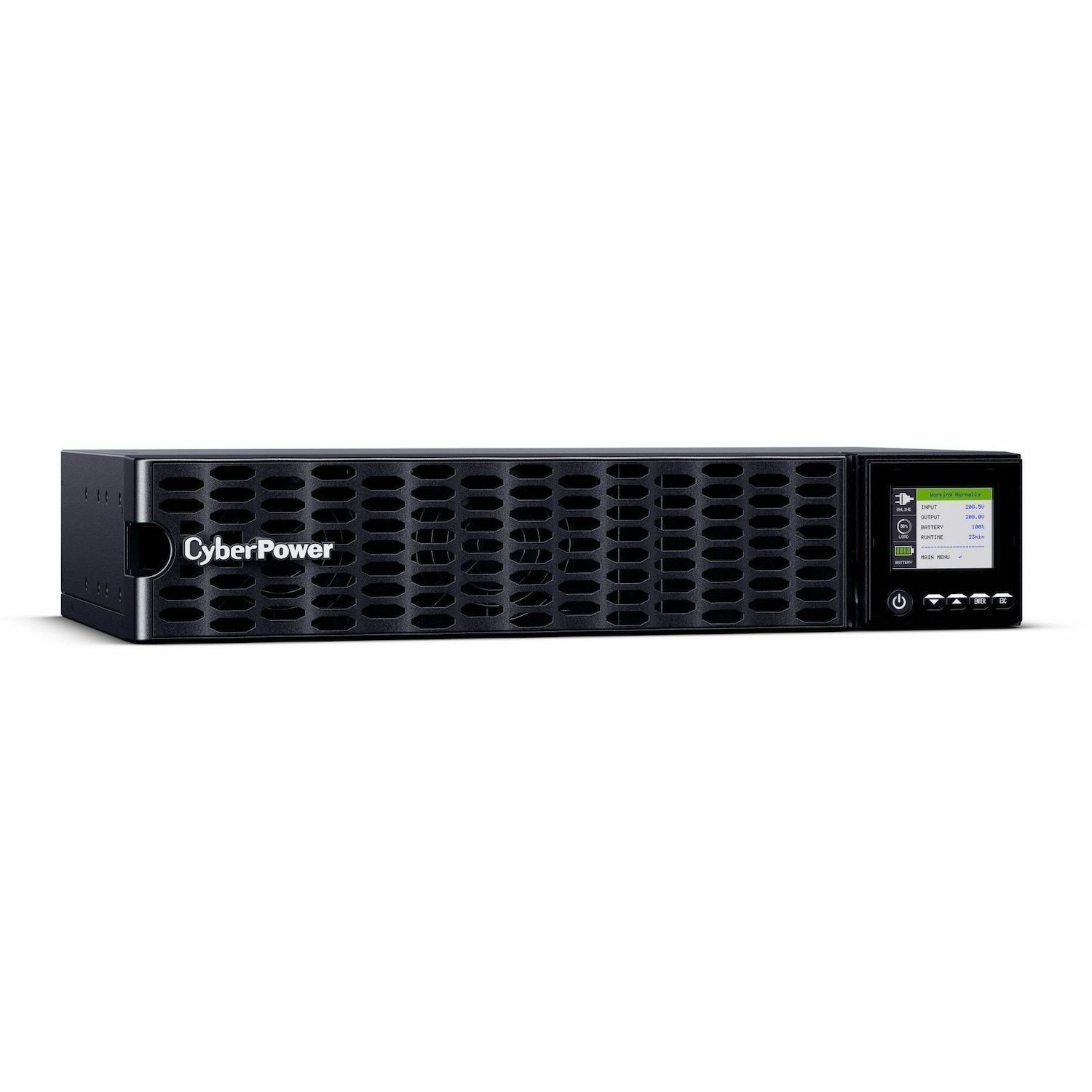

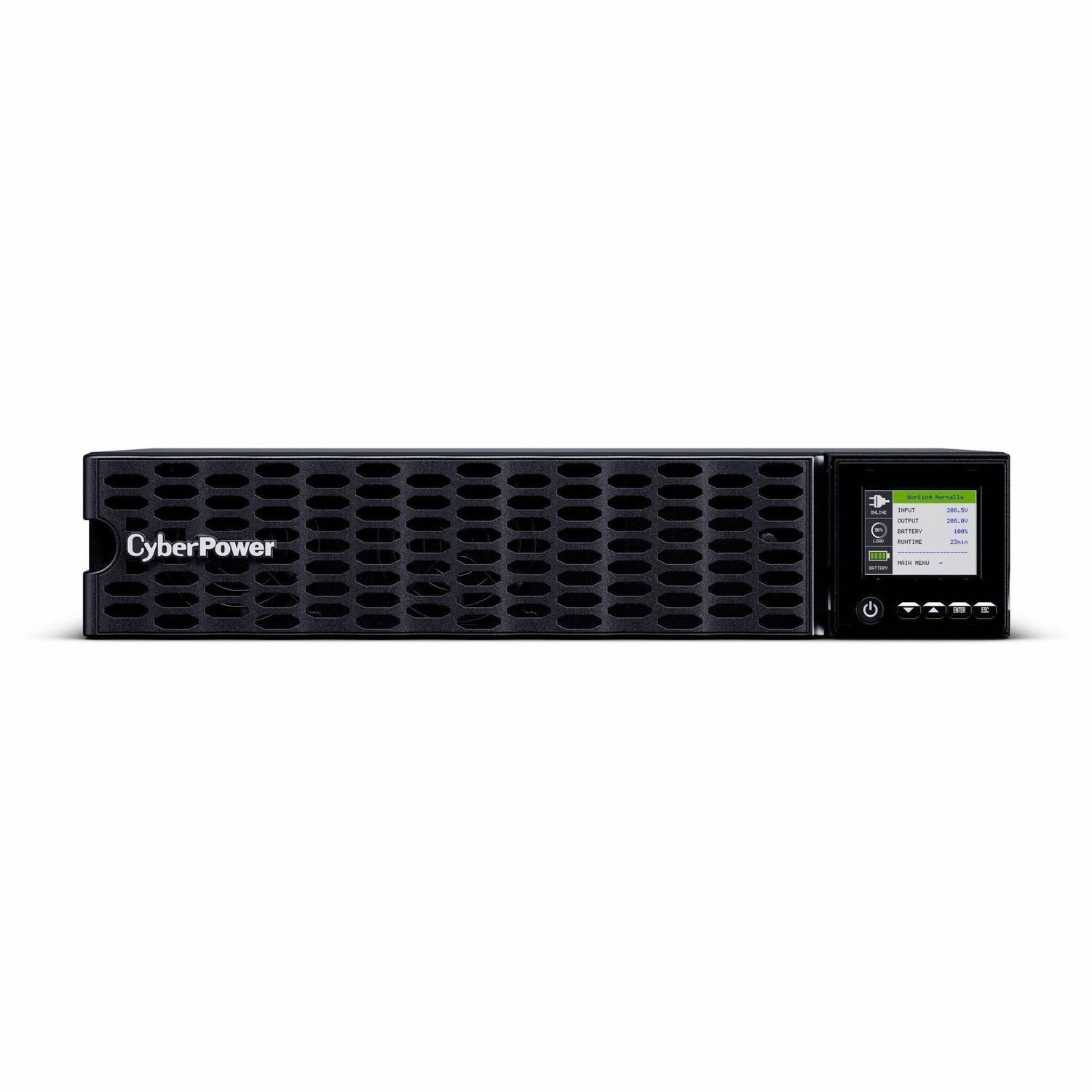

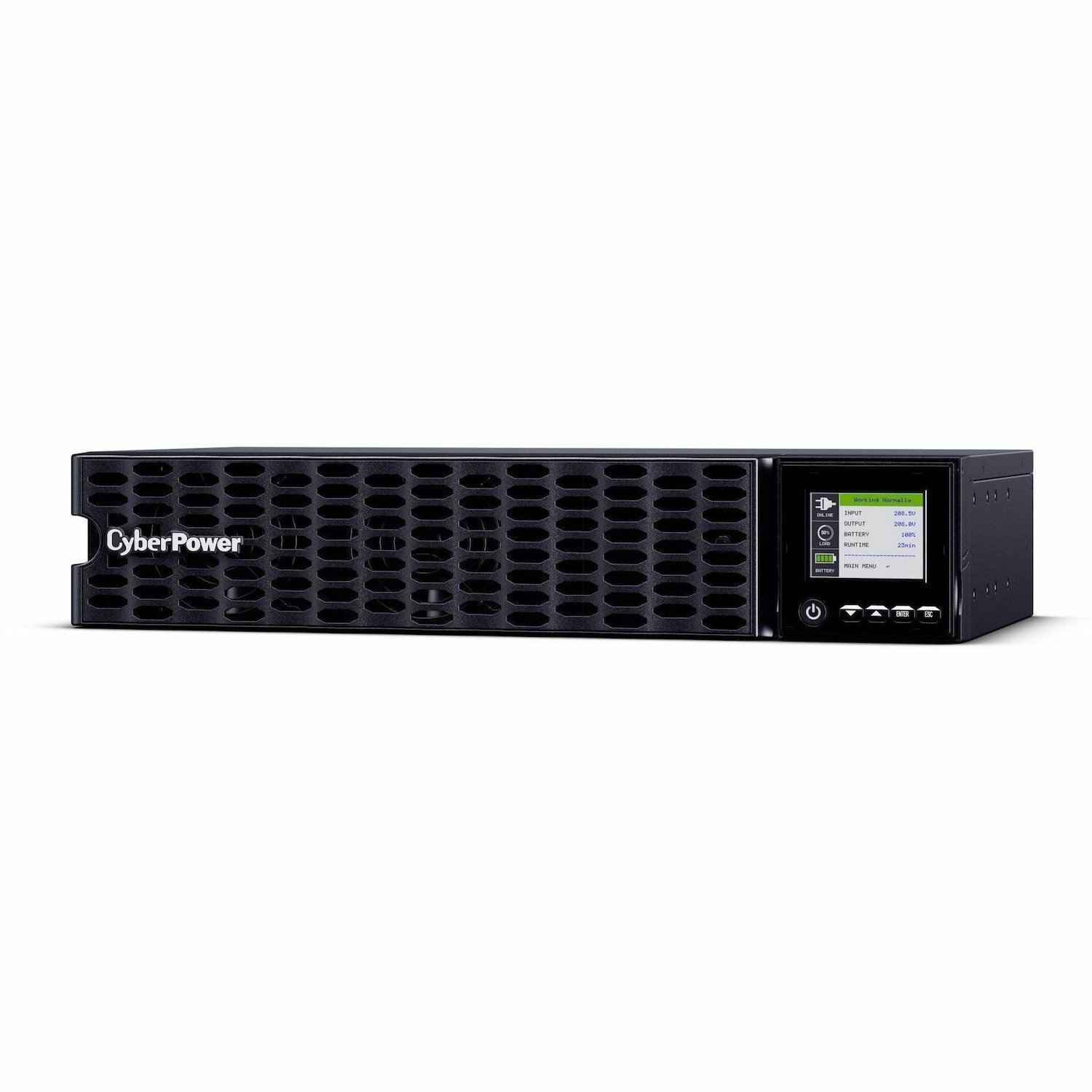

The OL1KRTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.
For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL1KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.
The optional BP24VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's backed by our three-year warranty (including batteries) and a $400,000 Connected Equipment Guarantee.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Series
- Smart App Online UPS
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
Three-year warranty (including batteries)
- Directly Connected Equipment Guarantee
- $400000 Lifetime
- Technical Information
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 8 x NEMA 5-15R
- Overload Protection
- Yes
- Cord Length
- 10 ft
- Transfer Time
- 0 ns
- EMI/RFI Noise Filter
- Yes
- Energy Saving
- ECO Mode Efficiency >96%
- Surge Suppression
- Yes
- Features
- Built-in Bypass Switch
- Audible Alarm
- Cold Start Function
- Power Description
- Load Capacity (VA)
- 1000 VA
- Load Capacity (Watt)
- 1000 W
- Input Voltage
- 120 V AC
- Input Voltage Range
- 100 V AC - 125 V AC
- 60 V AC - 69 V AC
- Output Voltage
- 100 V AC
- 110 V AC
- 115 V AC
- 120 V AC
- 125 V AC
- Input Frequency
- 40 Hz
- 70 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 710 J
- Circuit Breaker
- Yes
- Input Power Factor
- 0.99
- Output Power Factor
- 1
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- Dry Contact
- SNMP/HTTP Remote Monitoring
- Alarm
- Battery Mode
- Controls/Indicators
- Status Indicators
LED Indicators:
Power On (White)
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- EPO Port
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Number of Batteries
- 2
- Battery Characteristics
- Sealed
- Battery Chemistry
- Lead Acid
- Battery Size
- 12V
- Battery Capacity
- 9000 mAh
- Backup/Run Time (Full Load)
- 3.80 Minute
- Backup/Run Time (Half Load)
- 12 Minute
- Typical Battery Recharge Time
- 4 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation
- 9843 ft
- Maximum Storage Elevation
- 49213 ft
- Storage Relative Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 42.8 dB(A)
- Thermal Dissipation
- 89.09 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 3.4"
- Width
- 17"
- Depth
- 11.4"
- Rack Height
- 2U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 28 lb
- Miscellaneous
- Certifications & Standards
UL1778
- Energy Star
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
