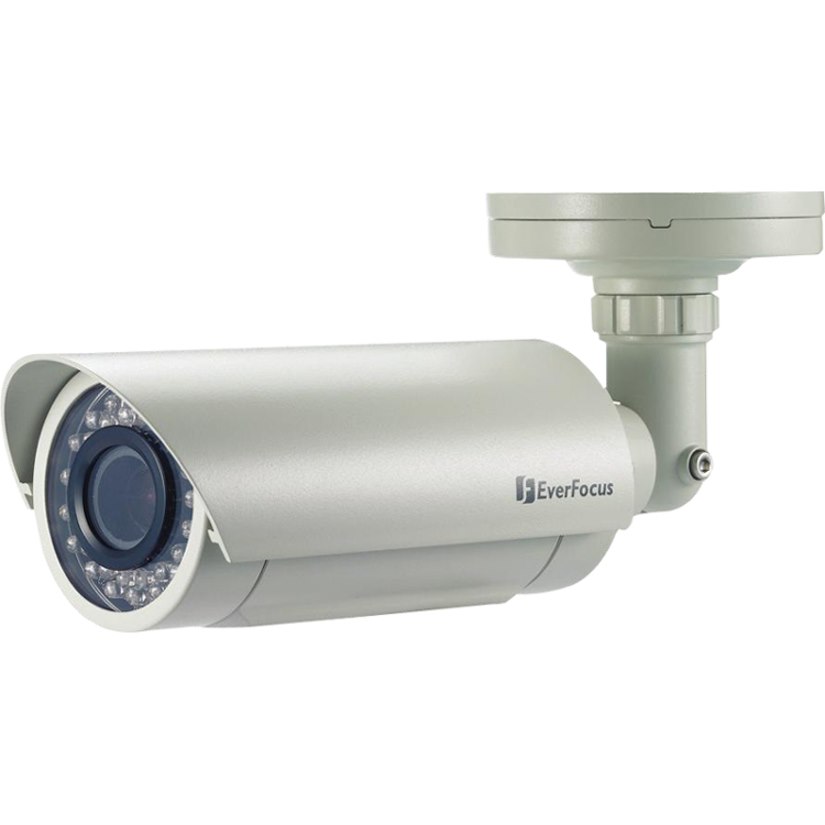

Amazing color low light sensitivity of 0.05 lux before the added benefits of advanced DSP technology, delivered by a 1/3" Sony Super HAD II sensor, is just the beginning with the new EverFocus EZ610/630. Get color without compromise: 560TVL resolution, your choice of full motion color or true day/night images in low light without ghosting, plus Digital Wide Dynamic Range to handle the most challenging of bright or unbalanced scene lighting conditions. Where ambient light levels are too low, select the EZ630 for extended IR range, variable output IR control to manage illumination and conserve energy, split glass to prevent internal IR reflections. Easy to mount and install, the camera includes a speedy-mount ring, designed to fit a standard 4" electrical box, for convenient and reliable wall or ceiling mounting; just attach the speedymount ring to the mounting surface and the camera base plate quickly attaches to the ring. A removeable insert in the ring provides for an on-demand slot for surface wire access. Spin off the base plate, and the EZ610/630 mates with any standard 1" conduit thread. The E-Z Lock ring at the base is designed with sure-grip tabs to firmly clamp the camera to the base plate, plus a set screw in the base provides added security. Vandal resistant, IP66, with motorized varifocal auto iris lens, dual voltage operation and a full suite of OSD Menu and DSP functions controllable at the camera or remotely via RS-485 (3D-DNR to save DVR HDD space, privacy masking, 32X digital zoom, mirroring and rotation, 256X sens-up to a max of .0002 lux, and much more) these are the cameras you have been waiting for, and might be the only cameras you'll ever need.
- General Information
- Manufacturer
- EverFocus Electronics Corporation
- Manufacturer Website Address
- http://www.everfocus.com
- Brand Name
- EverFocus
- Product Line
- Polestar II
- Product Type
- Surveillance Camera
- Display & Graphics
- Image Sensor Type
- Super HAD CCD ll
- Image Sensor Size
- 1/3"
- White Balance Modes
- Auto
- Manual
- Indoor
- Outdoor
- Color Supported
- Monochrome
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 2.80 mm
- Maximum Focal Length
- 10 mm
- Optical Zoom
- 3.5x
- Digital Zoom
- 32x
- Exposure
- Shortest Shutter Speed
- 1/100000 Second
- Longest Shutter Speed
- 1/60 Second
- Network & Communication
- Connectivity Technology
- Wired
- Controls/Indicators
- Status Indicators
OSD
- Interfaces/Ports
- Analog Video Out
- Yes
- Power Description
- Maximum Power Consumption
- 9 W
- Physical Characteristics
- Form Factor
- Bullet
- Durability
- Weather Resistant
- Height
- 3.2"
- Depth
- 4.2"
- Weight (Approximate)
- 2.76 lb
- Miscellaneous
- Features
- 3D Noise Reduction
- Heater
- Motion Detection
- Package Contents
- Camera Unit
- Speedy Mount Ring
- Operation Manual
- Video Test Cable
- Power Supply Pigtail
- 4 x Long Screws (for attaching EZ Mount Ring to mounting surface)
- 4 x Short Screws(for connecting camera base to EZ Mount Ring)
- 4 x Expanding Anchors
- Hex key (for adjusting camera)
- Hexagon Wrench (for adjusting sunshield and set screw in base)
- Mounting Template
- Compatibility
- NTSC
- Pal
- Certifications & Standards
- CE
- FCC
- Security Features
- IP66
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
