- General Information
- Manufacturer
- Motorola Solutions, Inc.
- Manufacturer Website Address
- http://www.motorolasolutions.com
- Brand Name
- Pelco
- Product Series
- IX30
- Product Type
- Network Camera

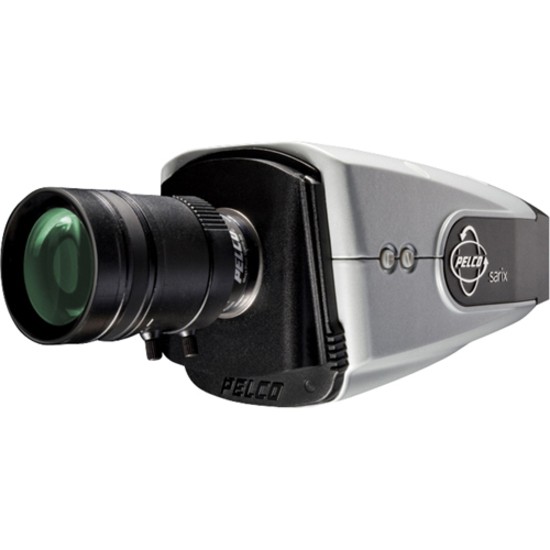

The IX30 Series with Sarix technology is a 3.1 megapixel (MPx) network camera designed with industry-leading image quality and high performance processing power. Designed to install quickly, the camera comes equipped with the advanced features needed for demanding security applications.
- Warranty
- Limited Warranty
- 3 Year
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Monochrome
- Video
- Maximum Video Resolution
- 2048 x 1536
- Lens
- Optical Zoom
- 4.3x
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet
- Yes
- Protocols
- TCP/IP
- UDP
- UPnP
- DNS
- DHCP
- RTP
- RTSP
- SNMP
- QoS
- HTTP
- HTTPS
- LDAP
- SSH
- SSL
- SMTP
- FTP
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 24 V AC
- Physical Characteristics
- Weight (Approximate)
- 1.11 lb
- Miscellaneous
- Package Contents
- Sarix IX30DN ImagePak Day/Night Network Camera
- 13M2.8-12 Lens

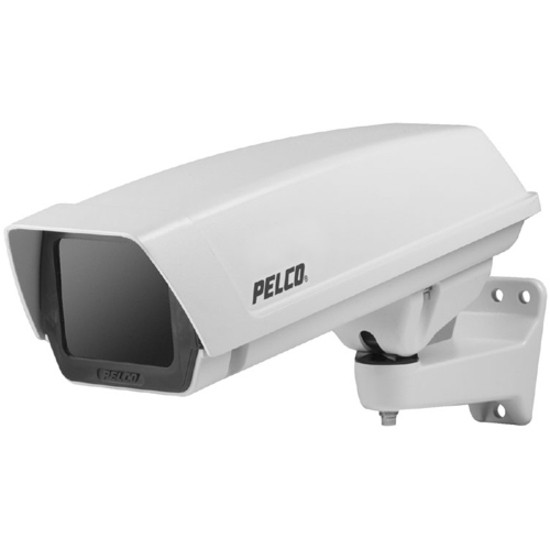

- EH3512-2HD Camera Enclosure
- EM3512 Wall Mount
- Additional Information
- Open IP Standards
- Auto Back Focus
- H.264 and MJPEG Compression Capability
- Video Setup Jack
- Power over Ethernet (IEEE 802.3af) or 24 VAC
- Up to 2 Simultaneous Video Streams
- Web Viewing, up to 16 Cameras Simultaneously
- Local Storage (Mini SD) for Alarm Capture
- Motion Detection
- System Requirements
- Intel Pentium 4 Microprocessor, 1.6 GHz
- Microsoft Windows XP, Windows Vista or Mac OS X 10.4 (or later)
- 512 MB RAM
- Network Interface Card 100 Megabits (or greater)
- Internet Explorer 7.0 (or later) or Mozilla Firefox 3.0 (or later)
- Monitor: Minimum of 1024 x 768 resolution, 16- or 32-bit pixel Color Resolution
- QuickTime 7.6.5 for Windows XP, Windows Vista, or QuickTime 7.6.4 for Mac OS X 10.4
- Compatibility
- NTSC
- PAL
- Security Features
Password protected
- Platform Supported
- PC
- Mac
