Next Generation 40 Gb/s Thunderbolt™ 3
Dual Thunderbolt™ 3 - The fastest 40Gb/s single-wire connection

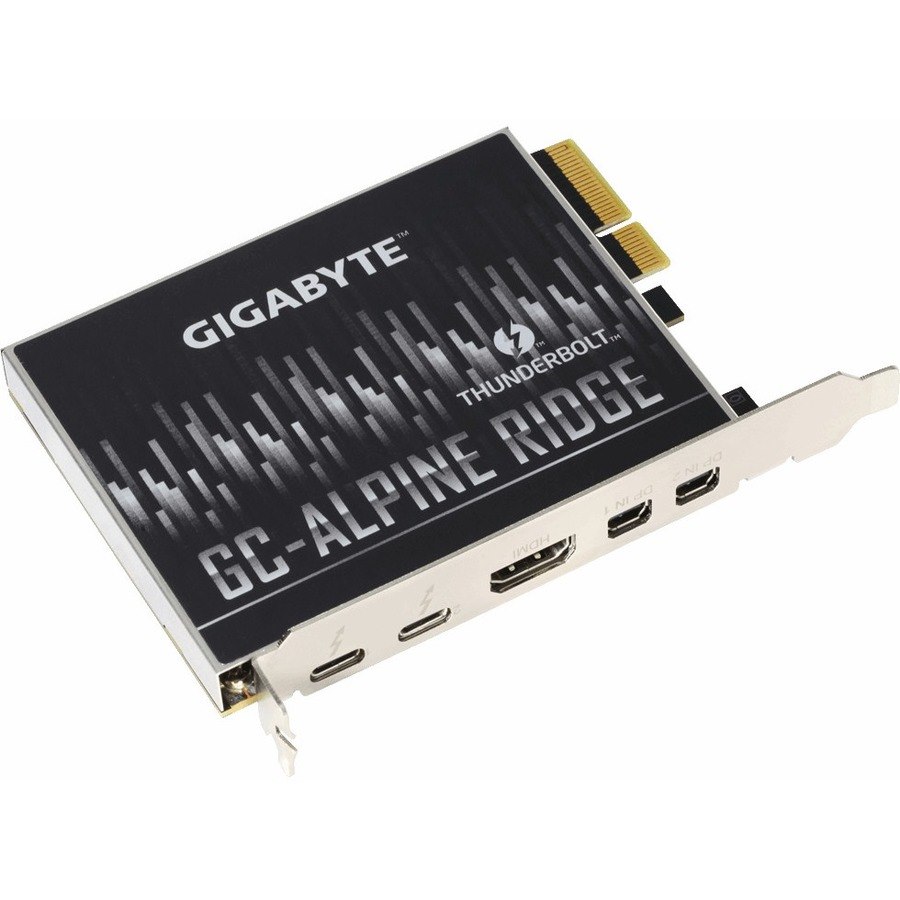

The GC-ALPINE RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 3 connectivity without having to upgrade to a whole new system.
GC-ALPINE RIDGE card with dual Thunderbolt™ 3 ports offers:
Dual Thunderbolt™ 3 Ports
40 Gb/s Bi-directional Bandwidth
DisplayPort 1.2 Capable with 4K Video Throughout
Daisy-chain up to 12 Devices (6 devices per port)
Daisy-chain Multiple Devices
Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The GIGABYTE Thunderbolt™ ready motherboards are able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the dual USB Type-C™ ports.
- General Information
- Manufacturer
- GIGABYTE Technology, Inc
- Manufacturer Website Address
- http://www.gigabyte.us
- Brand Name
- GIGABYTE
- Product Type
- Thunderbolt Adapter
- Technical Information
- Host Interface
- PCI Express x4
- Interfaces/Ports
- Number of Thunderbolt Ports
- 2
- Physical Characteristics
- Form Factor
- Plug-in Card
- Miscellaneous
- Package Contents
- GC-ALPINE RIDGE (rev. 1.0) Thunderbolt Adapter
- 2 x Mini DisplayPort Cable
- 1 x THB-C Header Cable
