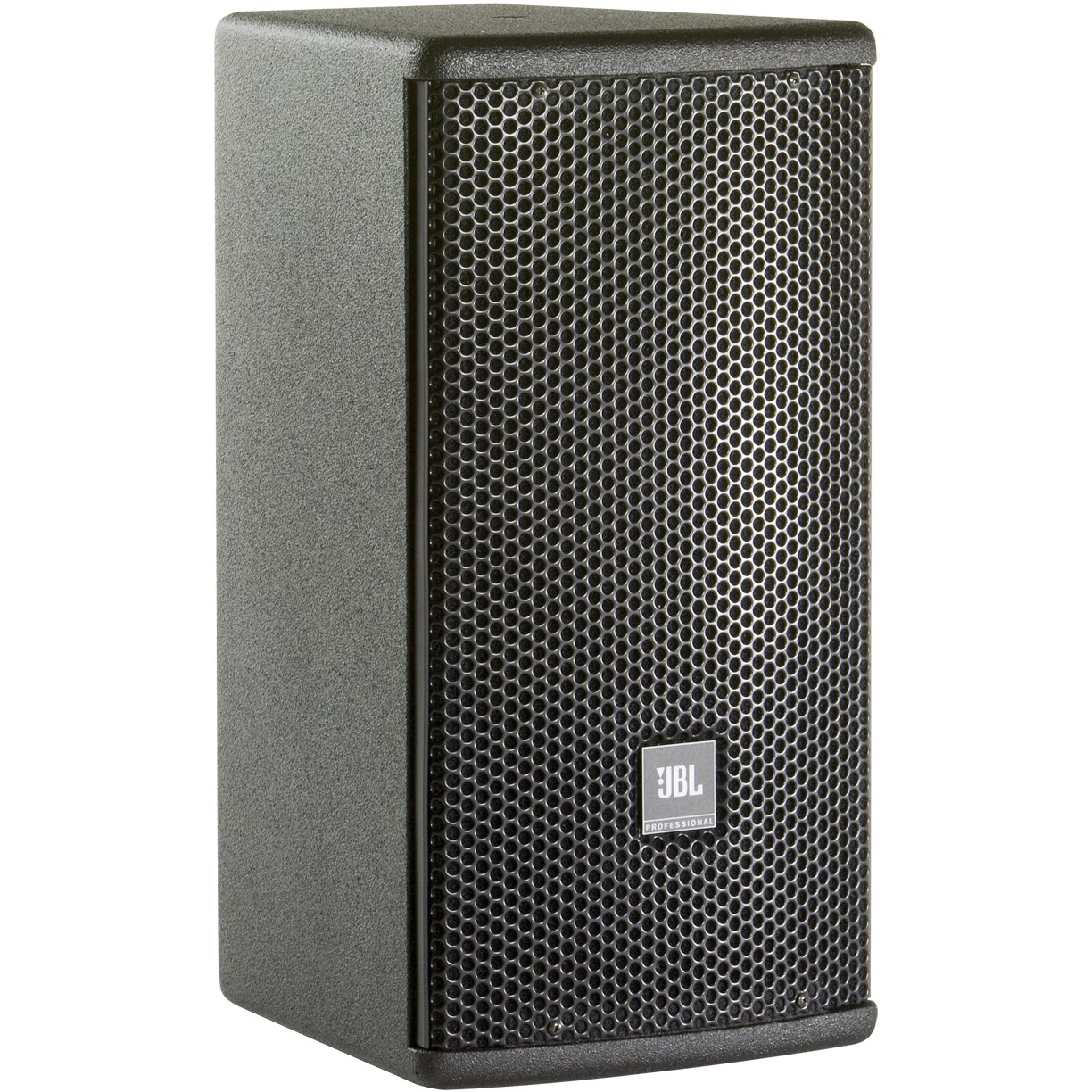

The AC16 is an ultra-compact full- range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 90° x 90° PT™ (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC16 utilizes a 6.5" Symmetrical Field Geometry (SFG™) LF Transducer with a copper-clad aluminum edge wound 2" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion.
- General Information
- Manufacturer
- Harman International Industries, Inc
- Manufacturer Website Address
- http://www.harman.com
- Brand Name
- JBL Professional
- Product Type
- Speaker
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Crossover Type
- 2-way
- RMS Output Power
- 160 W
- PMPO Output Power
- 640 W
- Woofer Driver Size
- 6.50"
- Tweeter Driver Size
- 1"
- Minimum Frequency Response
- 65 Hz
- Maximum Frequency Response
- 18 kHz
- Impedance
- 16 Ohm
- Maximum Crossover Frequency
- 2.40 kHz
- Sound Pressure Level
- 110 dB
- Sensitivity
- 90 dB
- Physical Characteristics
- Product Color
- Black
- Product Material
- Plywood
- Perforated-steel
- Foam
- Form Factor
- Stand Mountable
- Wall Mountable
- Ceiling Mountable
- Height
- 15"
- Width
- 7.9"
- Depth
- 8.90"
- Weight (Approximate)
- 15.87 lb
- Miscellaneous
- Certifications & Standards
- Mil-Std 810
- IPx3 per IEC529
