- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Series
- DS-76xxNI-Qx/xP
- Product Type
- Video Surveillance Station

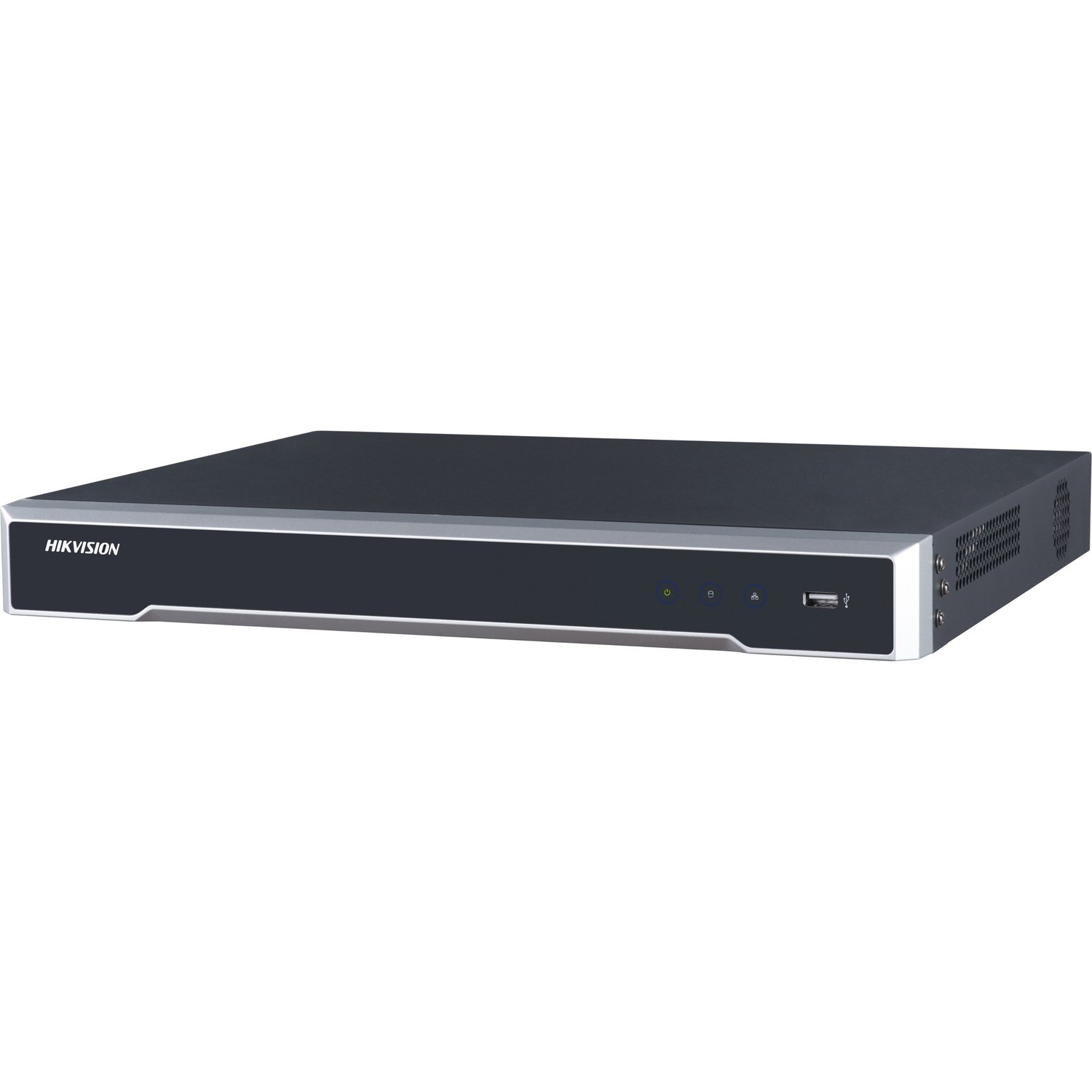

Hikvision's DS-76xxNI-Qx/xP Series of NVRs provides centralized management of Hikvision as well as third-party network IP cameras. The NVRs also support Hikvision smart IP cameras, for added functionality.
- Supports 8 IP Cameras and up to 8 MP resolution
- 8 Independent PoE Network Interfaces
- HDMI Output Resolution: 1-ch, 4K (3840 × 2160)/30 Hz, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- Incoming Bandwidth: 80 Mbps Outgoing Bandwidth: 80 Mbps
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Total Number of Channels
- 8
- Connectivity Technology
- Wired
- HD Recording
- Yes
- System Components
- Network Video Recorder
- Storage
- Hard Drive Capacity
- 12 TB
- Video
- Video Formats
- MPEG-4
- H.265
- H.265+
- H.264+
- H.264
- Maximum Resolution
- 8MP
- Network & Communication
- Ethernet
- Yes
- Remote Management
- Yes
- Interfaces/Ports
- USB
- Yes
- Total Number of Audio In Ports
- 1
- Total Number of Audio Out Ports
- 1
- Number of VGA Out
- 1
- HDMI
- Yes
- Physical Characteristics
- Height
- 2"
- Width
- 15.2"
- Depth
- 12.4"
- Weight (Approximate)
- 6.61 lb
