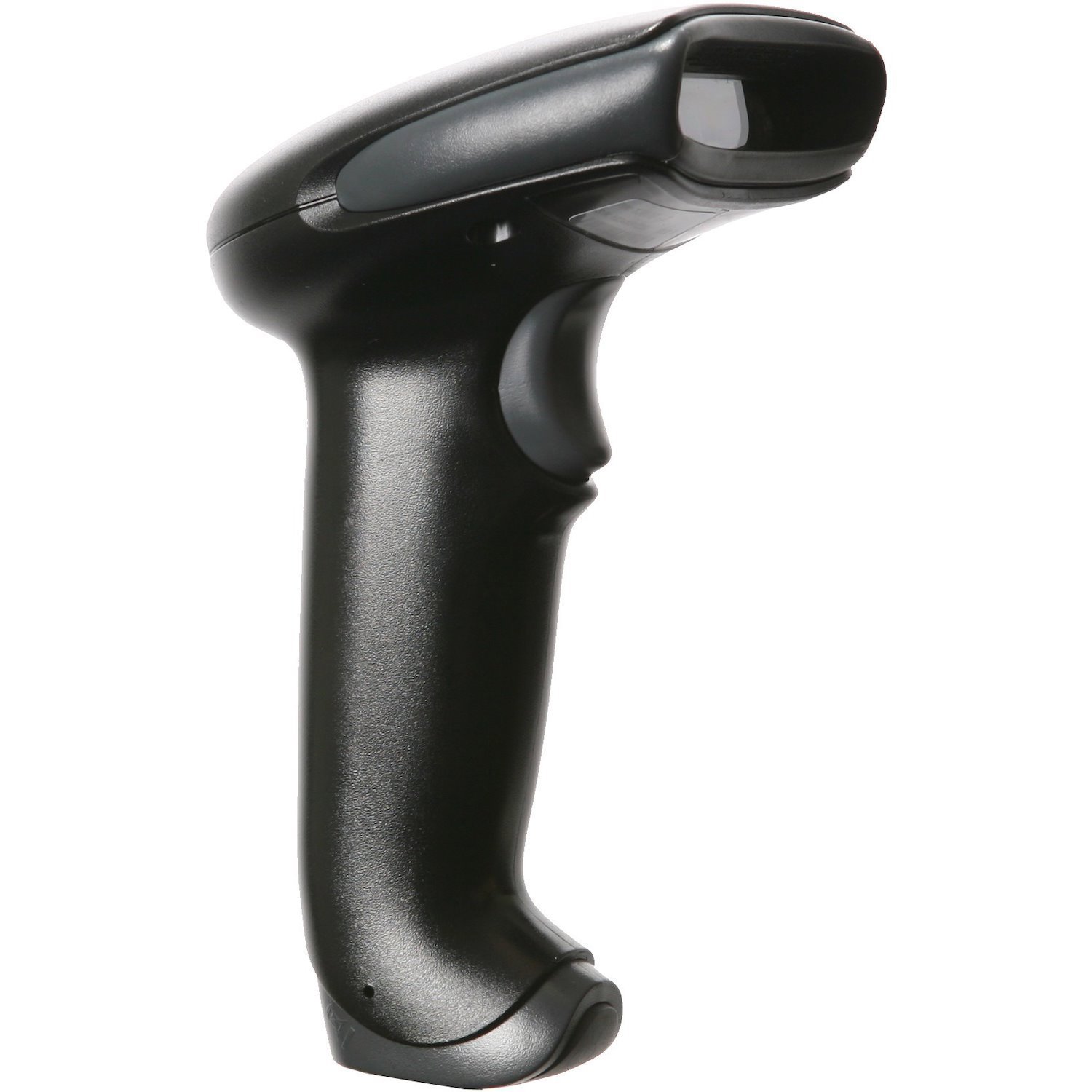

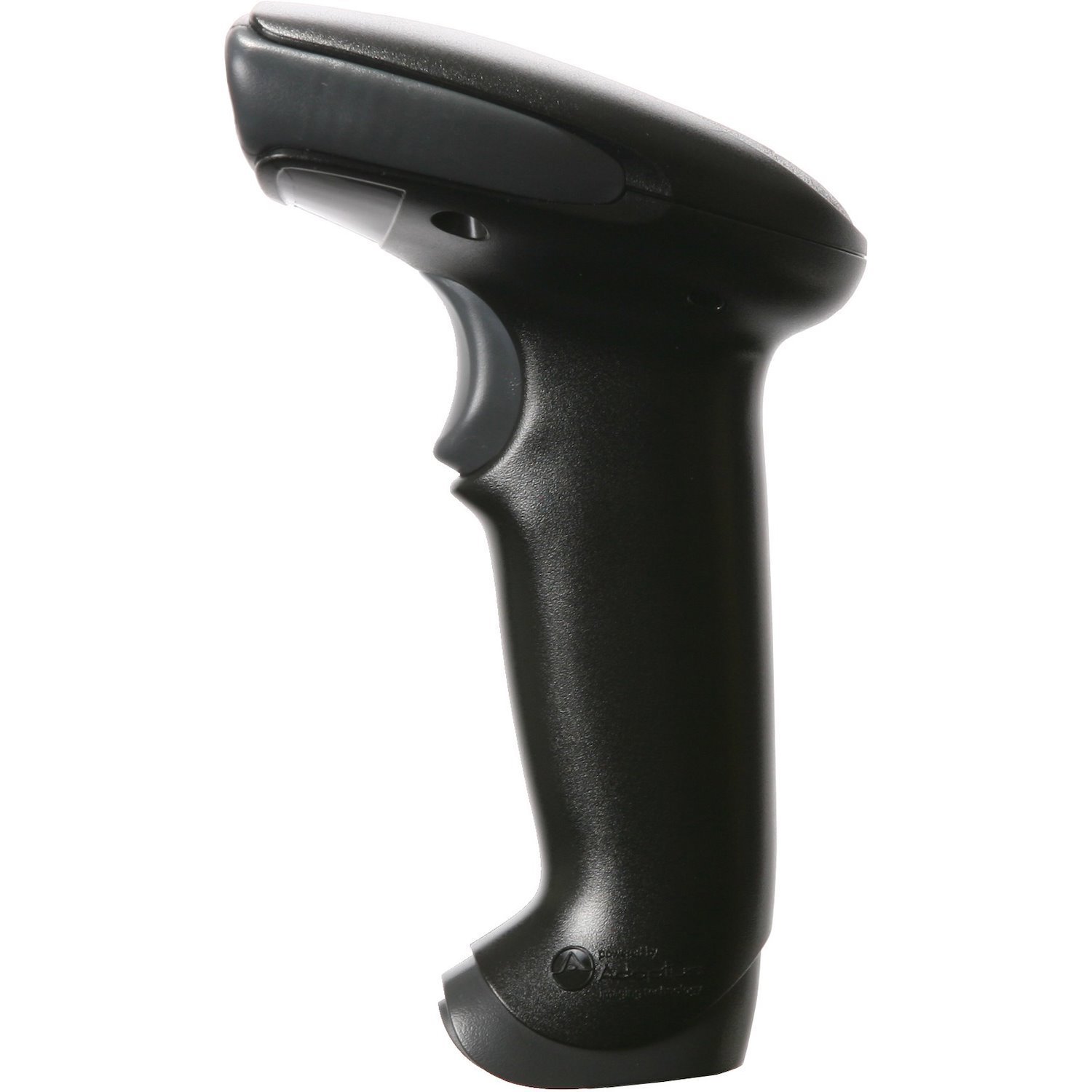

Honeywell Hyperion 1300g Linear-Imaging Scanner
- Part: 1124602
- Model: 1300G-2USB
"Honeywell's Hyperion 1300g linear-imaging barcode scanner features an ideal balance of performance, best-in-class durability and ergonomics to provide years of hassle-free scanning, especially in scan-intensive or light industrial applications. Fast intuitive reading of 13 mil barcodes out to 18 inches (457 mm), as well as reading of high density barcodes as small as 3 mil are both enabled in a single linear imager, eliminating the need to purchase specialty scanners. Get the most out of the Hyperion linear imager with compatible Remote MasterMind® scanning management software. "
- General Information
- Manufacturer
- Honeywell International, Inc
- Manufacturer Website Address
- http://www.honeywell.com
- Brand Name
- Honeywell
- Product Line
- Hyperion
- Product Type
- Barcode Scanner
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Connectivity Technology
- Cable
- Scanning Capability
- 1D
- Barcode Symbology Supported
Reads Standard 1D and GS1 DataBar Symbologies
- Image Sensor Type
- Imager
- Linear
- Scan Rate
- 270 scan/s
- Maximum Scan Resolution
- 3 mil
- Depth of Field
- 2" - 8"@5mil
- 1.5" - 12"@7.5mil
- 1" - 15"@10mil
- 0.5" - 18"@13mil
- 1" - 26"@20mil
- Scan Pattern
- Single Line
- Scanning Distance
- 18"
- Cable Type Included
- USB
- Reading Angle (Skew)
- 65°
- Reading Angle (Pitch)
- 65°
- Motion Tolerance
- 65 in/s
- Maximum Ambient Light
- 70000 lux
- Drop Specification
- Designed to withstand 50 drops on concrete from 1.5m
- Minimum Print Contrast
- 20%
- Interfaces/Ports
- Host Interface
- USB
- Physical Characteristics
- Form Factor
- Handheld
- Color Family
- Black
- Product Color
- Black
- Height
- 5.9"
- Width
- 4.4"
- Depth
- 3.1"
- Weight (Approximate)
- 5.60 oz
- Miscellaneous
- Additional Information
USB Cable separate
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
