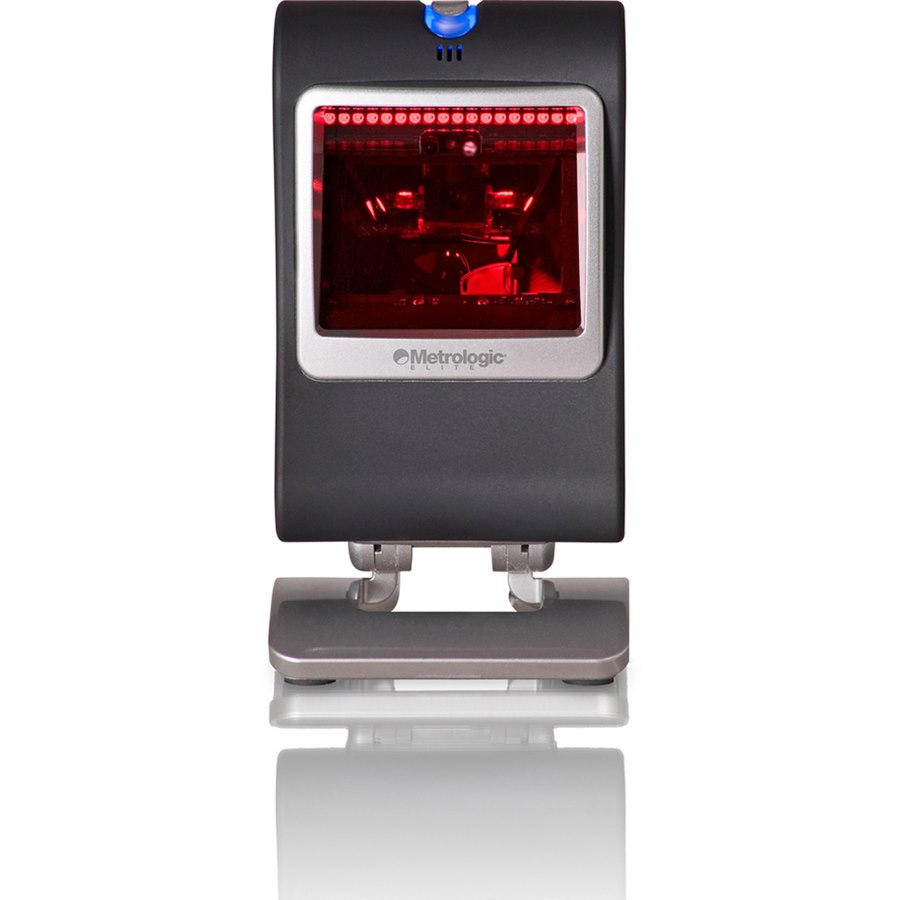

Genesis MS7580 is a presentation imager engineered to decode all standard printed and electronic 1D, PDF and 2D matrix codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design. The first product released under the Metrologic ELITE brand, Genesis signals the companys move to producing devices that tie advanced engineering with superior elegance, performance and reliability.
- General Information
- Manufacturer
- Honeywell International, Inc
- Manufacturer Website Address
- http://www.honeywell.com
- Brand Name
- Honeywell
- Product Line
- Genesis
- Product Type
- Barcode Scanner
- Technical Information
- Connectivity Technology
- Cable
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
- All Standard 1D Symbologies
- GS1 Databar
- PDF 417
- Micro PDF
- MaxiCode
- DataMatrix
- QR Code
- UCC/EAN Composite Codes
- Postal Code
- Aztec
- Light Source
- LED
- Image Sensor Type
- Imager
- Maximum Scan Resolution
- 10 mil
- Depth of Field
- 1.5" - 3.2"@5mil - 1D
- 1.1" - 4.7"@7.5mil - 1D
- 0.6" - 5.6"@10.4mil - 1D
- 0" - 6"@13mil - 1D
- 1.1" - 4.7"@10mil - PDF417
- 1.5" - 4.7"@15mil - QR + Datamatrix
- Scanning Distance
- 6.22"
- Cable Type Included
- USB
- Field of View (Horizontal)
- 46°
- Field of View (Vertical)
- 28°
- Reading Angle (Skew)
- 70°
- Reading Angle (Pitch)
- 75°
- Motion Tolerance
- 78 in/s
- Maximum Ambient Light
- 100000 lux
- Drop Specification
- Designed to withstand 1.5 m (5ยด) drops
- Minimum Print Contrast
- 20%
- Interfaces/Ports
- Host Interface
- Multi-interface
- Power Description
- Input Voltage
- 12 V DC
- Physical Characteristics
- Form Factor
- Desktop
- Color Family
- Gray
- Product Color
- Dark Gray
- Height
- 5.9"
- Width
- 3.3"
- Depth
- 3.2"
- Weight (Approximate)
- 11.99 oz
- Miscellaneous
- Package Contents
- Genesis MS7580 Bar Code Reader
- Straight USB V-Link Cable Type A
- Power Supply
- Additional Information
Supported Interfaces:
- USB
- Keyboard Wedge
- Certifications & Standards
- RoHS Compliant
EMC:
- FCC Class B
- IEC60825-1 LED Safety
LED Class:
- Class 1; IEC60825-1:1993/A1:1997+A2:2001
- Class 1; EN60825-1:1994/A11:1996+A2:2001
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
