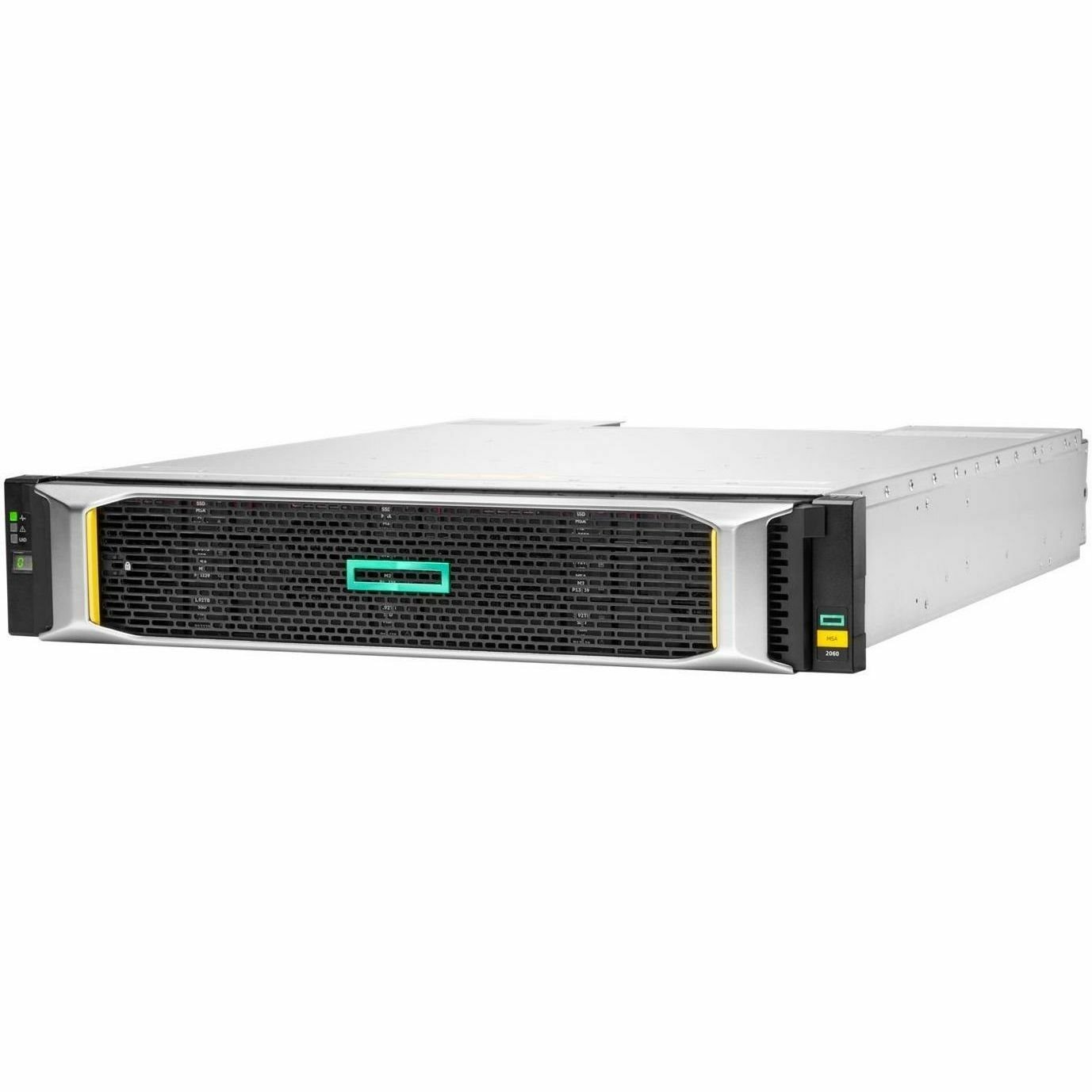

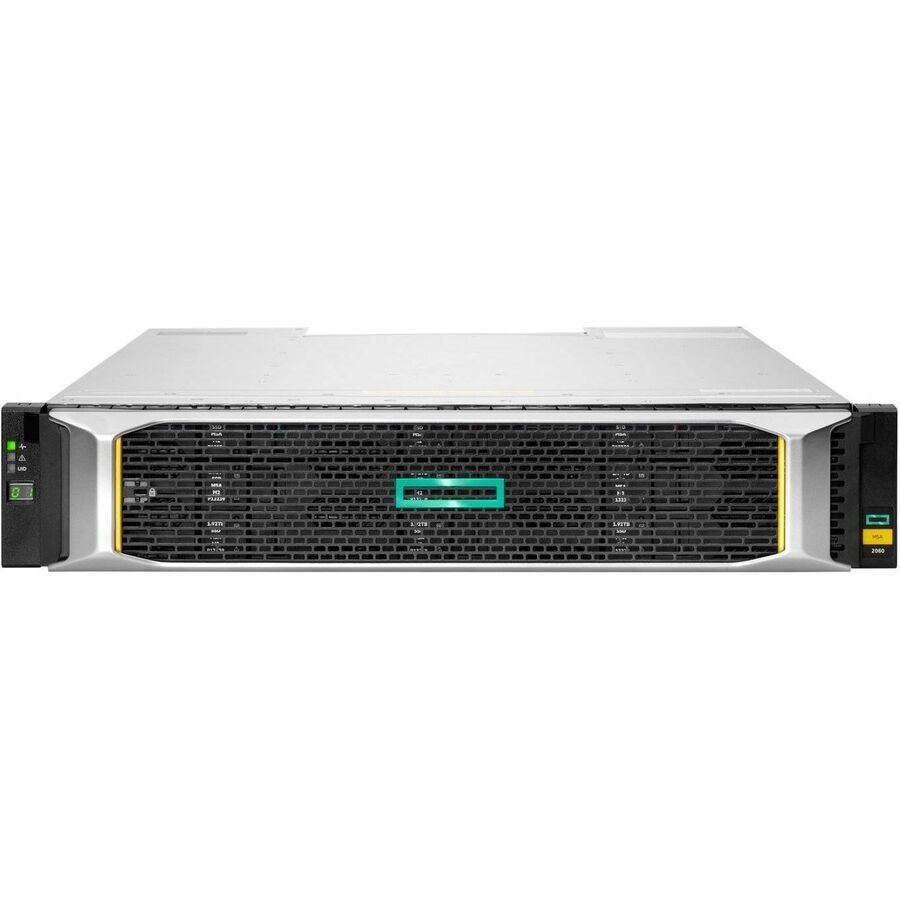

HPE MSA 2060 Storage Array
The HPE MSA 2060 is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don't let the low-cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solidstate drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.
- General Information
- Manufacturer
- Hewlett Packard Enterprise
- Manufacturer Website Address
- http://www.hpe.com
- Brand Name
- HPE
- Product Type
- SAN Storage System
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
Three-year limited warranty, parts exchange next business day delivery on all base arrays and drive enclosures. MSA drives and other options carry a separate warranty.
- Storage
- Number of Hard Drives Supported
- 12
- Number of Hard Drives Installed
- 12
- Total Hard Drive Capacity Installed
- 240 TB
- Hard Drive Interface
- 12Gb/s SAS
- Hard Drive Configuration
- 12 x 20TB
- Number of Solid State Drive Supported
- 12
- Clustering Supported
- Yes
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 12
- Number of 3.5" Bays
- 12
- Controllers
- Number of Controllers
- 2
- Controller Type
- 10/25 GbE iSCSI
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 5, 6, 10
- Interfaces/Ports
- Drive Interface
- 12Gb/s SAS
- Number of iSCSI Ports
- 4
- Management & Protocols
- Protocols
- FCP
- SNMP
- SSH
- SMTP
- FTP
- SFTP
- HTTP
- HTTPS
- Telnet
- Power Description
- Number of Power Supplies Installed
- 2
- Plug/Connector Type
- C14
- Maximum Power Supply Wattage
- 580 W
- Redundant Power Supply
- Yes
- Physical Characteristics
- Height
- 3.5"
- Width
- 19"
- Depth
- 26.4"
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Miscellaneous
- Package Contents
- MSA 2060 SAN Storage System
- 2 x 1.5m PDU Cords (IEC C14)
- 1 x Rack-mount Kit
- MSA 2U Rail Kit
- HPE MSA 10 Gb Short Range iSCSI SFP+ 4-pack Transceivers
- Energy Star
- Yes
- Country of Origin
- Mexico
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 6
- Waste Electrical and Electronic Equipment Directive (WEEE)
- China Restriction of Hazardous Substances (China RoHS)
