- General Information
- Manufacturer
- ID TECH
- Manufacturer Website Address
- http://www.idtechproducts.com
- Brand Name
- ID TECH
- Product Line
- MiniMag II
- Product Series
- IDMB
- Product Type
- Magnetic Stripe Reader

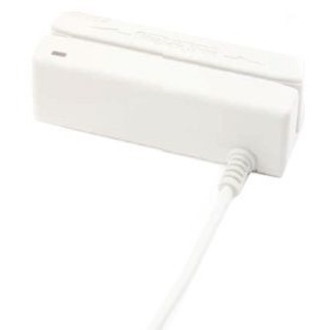

The MiniMag II IDMB Magnetic Stripe Reader is an intelligent, programmable mag stripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card It supports RS232 port powered interface.
- Technical Information
- Magnetic Stripe Track Configuration
- Dual Track
- Magnetic Stripe Track Number
- Track 1
- Track 2
- Minimum Swipe Speed
- 76.20 mm/s
- Maximum Swipe Speed
- 1524 mm/s
- Number of Swipes (Head Life)
- 1000000
- Bi-directional Reading
- Yes
- Interfaces/Ports
- Serial
- Yes
- Power Description
- Input Voltage
- 5 V DC
- Physical Characteristics
- Product Color
- Beige
- Height
- 1.10" (27.94 mm)
- Width
- 1.34" (34.04 mm)
- Length
- 3.54" (89.92 mm)
- Weight (Approximate)
- 130.4 g
- Miscellaneous
- Additional Information
- Small footprint to fit in tight places
- Bi-directional swipe reading
- Superior reading of high jitter, scratched, and worn magstripe cards
- Threaded inserts for mounting
- Mag swipe PC software makes configuration changes easy
- JPOS & OPOS support for all interfaces is provided
- Tri-colored LED beeper
