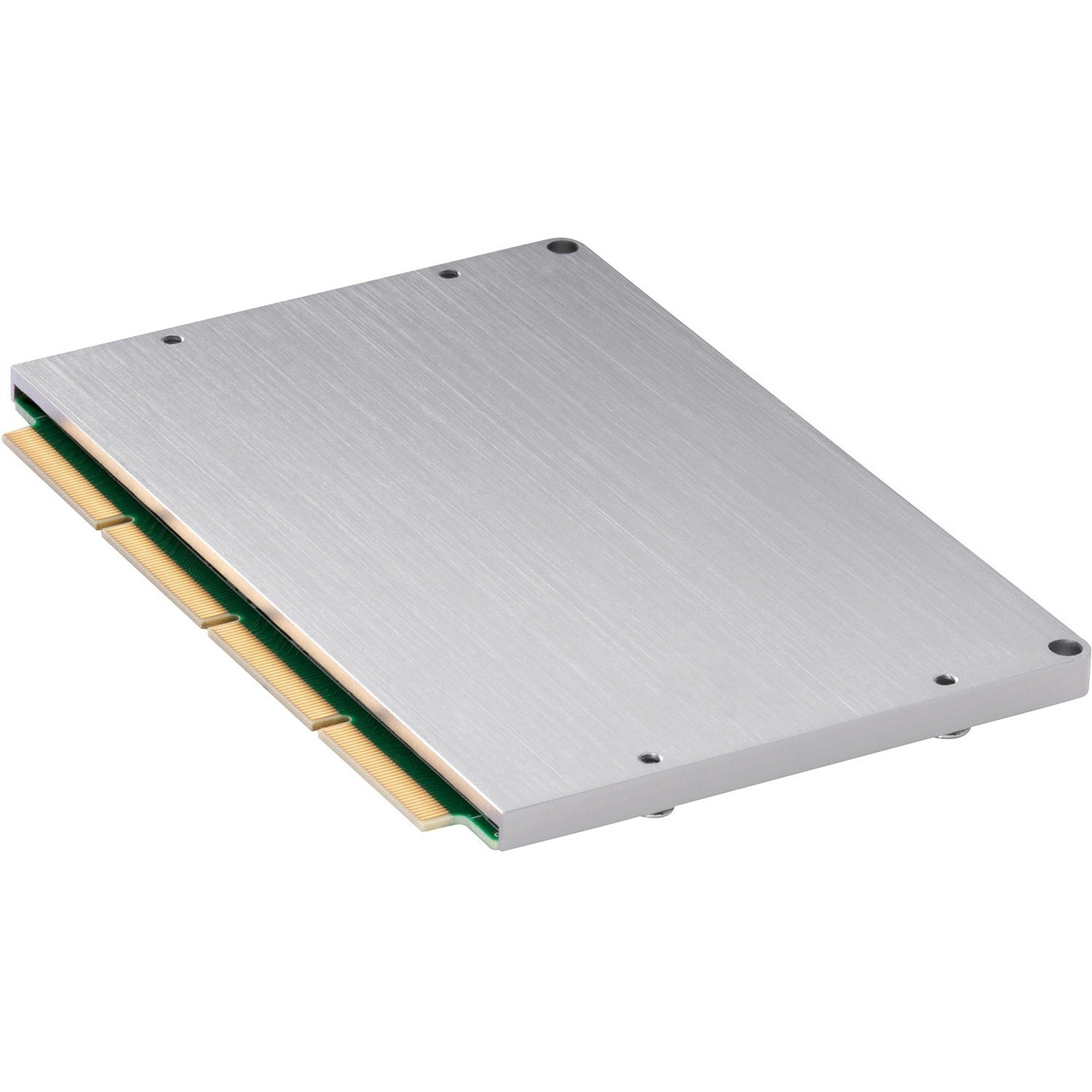

Intel® NUC Compute Elements
It's modular computing made easy. Intel® NUC Elements give you an entirely new way to design and build integrated solutions and Mini PCs. Intel® NUC Compute Elements, along with Intel NUC Board and Chassis Elements, deliver the flexibility of modular computing-so you can create the exact systems your customers want.
Whether you're building a custom system and only need compute, or a semi-custom or complete Mini PC solution, start with the Intel NUC Compute Element.
- General Information
- Manufacturer
- Intel Corporation
- Manufacturer Website Address
- http://www.intel.com
- Brand Name
- Intel
- Product Line
- NUC 8 Compute Element
- Product Type
- Single Board Computer
- Warranty
- Limited Warranty
- 3 Year
- Processor & Chipset
- Processor Type
- Core i5
- Processor Model
- i5-8365U
- Processor Core
- Quad-core (4 Core)
- Processor Speed
- 1.60 GHz
- Chipset Manufacturer
- Intel
- Memory
- Standard Memory
- 8 GB
- Memory Technology
- LPDDR3
- Display & Graphics
- Graphics Controller Model
- UHD Graphics
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11ac
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.0
- Interfaces/Ports
- Total Number of USB Ports
- 7
- Number of USB 2.0 Ports
- 3
- Physical Characteristics
- Form Factor
- Module
- Height
- 0.2"
- Width
- 3.7"
- Depth
- 2.6"
- Miscellaneous
- Additional Information
SYSTEM BIOS
- 64 Mb Flash EEPROM with Intel® Platform Innovation Framework for EFI Plug and Play
- Advanced configuration and power interface V5.0b, SMBIOS2.5
HARDWARE MANAGEMENT FEATURES
- Voltage and temperature sensing
- ACPI-compliant power management control
COMPUTE ELEMENT CAPABILITIES
- Qualified for 24x7 sustained operation
Supported Operating Systems
- Windows 11, 64-bit
- Windows 10, 64-bit
- Windows 10 IoT Enterprise
- Ubuntu 18.04 LTS
Expansion Options
- 1x PCIe x4 Gen 3 (NVMe/SATA)
- 1x PCIe x4 Gen 3 (NVMe)
- 1x PCIe x1 Gen 3
Advanced Technologies
- Intel® Virtualization Technology for Directed I/O (VT-d)
- Intel vPro® Platform Eligibility
- TPM
- Intel® Virtualization Technology (VT-x)
Security & Reliability
- Intel® AES New Instructions
- Intel® Trusted Execution Technology
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
