- General Information
- Manufacturer
- iStarUSA, Inc
- Manufacturer Website Address
- http://www.istarusa.com
- Brand Name
- Xeal
- Product Type
- Power Supply

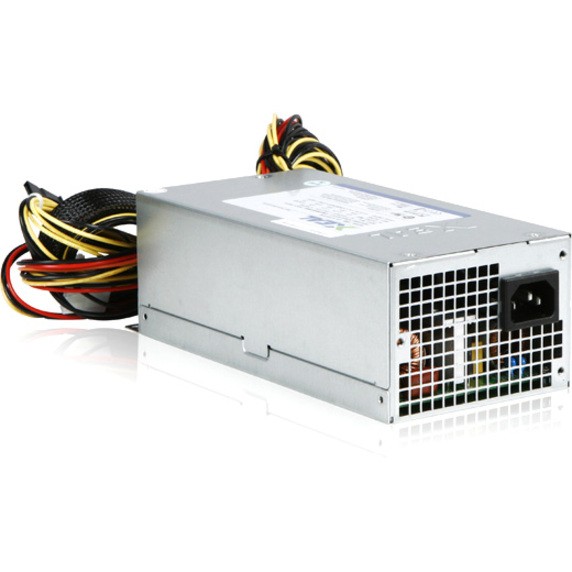

XEAL 2U power supply series provide high performance in compact form factor. The IS-2U46PD8 supports server, compact PC, and space constrained application. Standard feature includes 80+ efficiency, triple circuits protection, and active PFC for industrial and high performance system requirement.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Specification Compliance
- ATX12V/EPS12V
- Efficiency
- 82%
- Power Factor Correction (PFC)
- Active
- Number of Fans
- 1
- Protection Type
- Over Current
- Over Voltage
- Short Circuit
- Reliability
- MTBF
- 100000 Hour
- Power Description
- Number of +12V Rails
- 1
- Input Voltage Type
- AC
- Input Voltage
- 110 V AC
- 220 V AC
- Input Voltage Range
- 90 V AC - 132 V AC
- 180 V AC - 264 V AC
- Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- Output Voltage Detail
- 3.3 V DC @ 20 A
- 5 V DC @ 20 A
- 12 V DC @ 38 A
- -12 V DC @ 800 mA
- 5 V DC @ 3 A
- Input Current
- 7 A @ 110V
- 3.5 A @ 220V
- Output Current
- 20 A
- 38 A
- 800 mA
- 3 A
- Output Power
- 460 W
- Interfaces/Ports
- Receptacles
- 1 x 24-pin ATX Motherboard
- 1 x 4-pin ATX12V Motherboard
- 1 x 8-pin EPS12V Motherboard
- 4 x 4-pin LP4 Peripheral Device
- 1 x 4-pin SP4 Floppy Drive
- 2 x Serial ATA
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 2.8"
- Width
- 3.9"
- Depth
- 7.9"
- Weight (Approximate)
- 4 lb
- Miscellaneous
- Compatibility
Servers
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- 80 Plus Standard
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
