- General Information
- Manufacturer
- iStarUSA, Inc
- Manufacturer Website Address
- http://www.istarusa.com
- Brand Name
- iStarUSA
- Product Type
- Power Supply

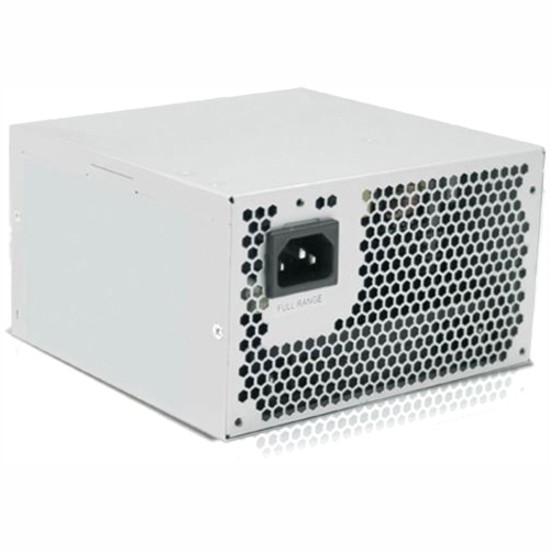

The TC-500PD8 ATX12V & EPS12V Power Supply supports latest motherboard connectors of 20, 24, 8, and 4 pins. Large 120mm ball bearing cooling fan reduces operation noise while keep the optimal airflow. 80 Plus high efficiency saves you on electric bills and less cooling requirement. Dual 12V rails increase overall system stability. TC-500PD8 is the ideal power supply for server and high-end gaming workstation.
- Technical Information
- Specification Compliance
- ATX12V/EPS12V
- Power Factor Correction (PFC)
- Active
- Number of Fans
- 1
- Protection Type
- Over Current
- Over Voltage
- Short Circuit
- Reliability
- MTBF
- 100000 Hour
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Input Voltage Range
- 100 V AC - 240 V AC
- Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- Output Voltage Detail
- 3.3 V DC @ 24 A
- 5 V DC @ 24 A
- 12 V DC @ 18 A
- -12 V DC @ 500 mA
- 5 V DC @ 2.5 A
- Output Current
- 24 A
- 18 A
- 500 mA
- 2.50 A
- Output Power
- 500 W
- Interfaces/Ports
- Receptacles
- 1 x 20+4pin ATX Motherboard
- 1 x 8-pin EPS12V Motherboard
- 1 x 6-pin PCI-E
- 5 x 15-pin Serial ATA
- 3 x 4-pin LP4 Peripheral Device
- 1 x 4-pin SP4 Floppy Drive
- Physical Characteristics
- Height
- 3.4"
- Width
- 5.9"
- Depth
- 5.5"
- Miscellaneous
- Additional Information
- 2 x +12V Rails
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- 80 Plus Standard
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
