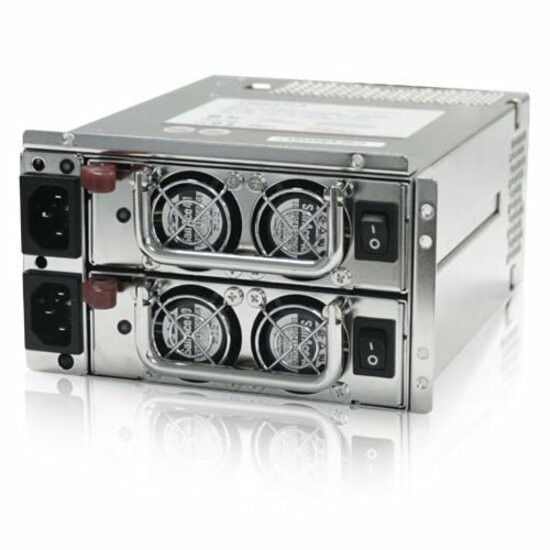

iStarUSA Dual AC input Mini Redundant Power Supply IS-550R8P. It offers your server and workstation zero down time with full 550W power redundancy. Load sharing function provide ultimate precision power and safety protection for all electronic equipment.
- General Information
- Manufacturer
- iStarUSA, Inc
- Manufacturer Website Address
- http://www.istarusa.com
- Brand Name
- iStarUSA
- Product Type
- Power Supply
- Technical Information
- Specification Compliance
- ATX12V/EPS12V
- Efficiency
- 74%
- Power Factor Correction (PFC)
- Active
- Protection Type
- Over Voltage
- Over Current
- Short Circuit
- Reliability
- MTBF
- 100000 Hour
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Input Voltage Range
- 90 V AC - 264 V AC
- Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- -5 V DC
- -12 V DC
- Output Voltage Detail
- 3.3 V DC @ 24 A
- 5 V DC @ 30 A
- 12 V DC @ 41 A
- -5 V DC @ 1 A
- -12 V DC @ 500 mA
- 5 V DC @ 2 A
- Output Current
- 24 A
- 30 A
- 41 A
- 1 A
- 500 mA
- 2 A
- Output Power
- 550 W
- Interfaces/Ports
- Receptacles
- 1 x 24-pin ATX Motherboard
- 1 x 4-pin ATX12V Motherboard
- 1 x 8-pin EPS12V Motherboard
- 1 x 6-pin PCI-E
- 8 x 4-pin LP4 Peripheral Device
- 2 x 4-pin SP4 Floppy Drive
- Physical Characteristics
- Hot Swappable Power Supply
- Yes
- Height
- 3.3"
- Width
- 5.9"
- Depth
- 7.8"
- Miscellaneous
- Additional Information
- PS2 Mini Redundant Power Supply
- Power Failure Alarm & Signals
- Automatic Thermal Control (reduce Fan Speed)
- Compatibility
- Server
- Workstation
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
