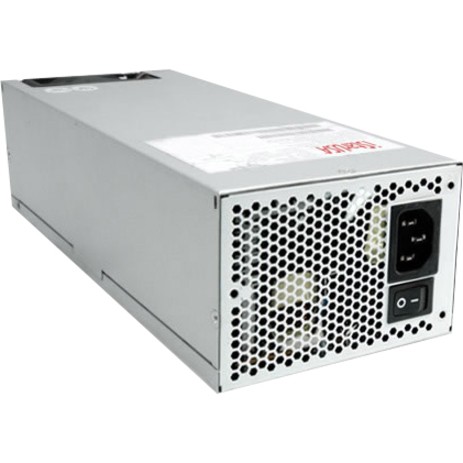

iStarUSA 2U power supply series provide high performance in compact form factor. The TC-2U50PD8 supports server, compact PC, and space constrained application. Standard feature includes 80+ efficiency, triple circuits protection, and EPS 2U for industrial and high performance system requirement.
- General Information
- Manufacturer
- iStarUSA, Inc
- Manufacturer Website Address
- http://www.istarusa.com
- Brand Name
- iStarUSA
- Product Type
- Power Supply
- Technical Information
- Specification Compliance
- ATX12V/EPS12V
- Efficiency
- 85%
- Protection Type
- Over Voltage
- Over Current
- Short Circuit
- Reliability
- MTBF
- 100000 Hour
- Power Description
- Number of +12V Rails
- 4
- Input Voltage Type
- AC
- Input Voltage
- 110 V AC
- 220 V AC
- Input Voltage Range
- 90 V AC - 264 V AC
- Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- Output Voltage Detail
- 3.3 V DC @ 24 A
- 5 V DC @ 20 A
- 12 V DC @ 45 A
- 12 V DC @ 15 A
- -12 V DC @ 500 mA
- 5 V DC @ 2.5 A
- Input Current
- 10 A @ 110V
- 5 A @ 220V
- Output Current
- 24 A
- 20 A
- 45 A
- 15 A
- 500 mA
- 2.50 A
- Output Power
- 500 W
- Interfaces/Ports
- Receptacles
- 1 x 24-pin ATX Motherboard
- 1 x 4+4pin ATX12V Motherboard
- 1 x 8-pin EPS12V Motherboard
- 4 x 15-pin Serial ATA
- 1 x 4-pin SP4 Floppy Drive
- 4-pin LP4 Peripheral Device
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 2.8"
- Width
- 3.9"
- Depth
- 9.5"
- Miscellaneous
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- 80 Plus Standard
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
