- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Marketing Information

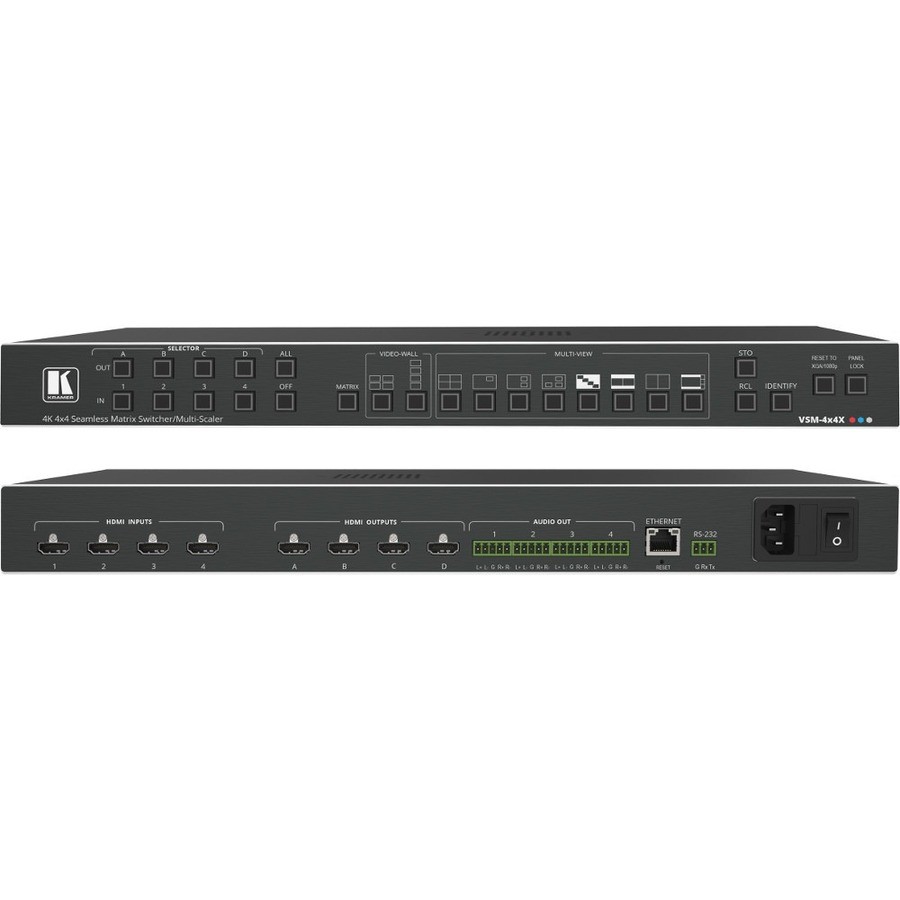

Kramer's VSM 4x4X is a 4X4 seamless matrix switcher that can also be used as a video wall driver (2X2 or 1X4), a quad-viewer, or a 4 picture multi-viewer.
The unit allows instantaneous switching between inputs (that is, with a clean, frame-to-frame video cut). The VSM 4x4X supports HDMI 2.0 and HDCP 2.2, with resolutions up to 4K60 4:4:4, per-port HDCP and EDID settings, passing of 4 channels of embedded audio, and analog stereo de-embedded audio for each of the 4 outputs.
- PixPerfect™ Scaling Technology - Kramer's precision pixel mapping and high quality scaling technology.
- Matrix Switching Modes - Truly seamless switching mode (zero-time video cuts), or fade-through-black mode (enabling independent output resolutions).
- Multiple Aspect Ratio Selections - Full, 4:3, 16:9 and best fit.
- 4 Preset Memory Locations - For each operation mode for quick access to common IN OUT configurations.
- Non-Volatile Memory - Saves final settings.
- Built-in Noise Reduction and Picture Enhancement Features
- HDMI Support - 4K@60Hz, Deep Color, x.v.Color™, 7.1 PCM, Dolby TrueHD, DTS-HD, as specified in VHDMI 2.0.
- Selectable Operation Modes - 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), multi-view display Split, Side-by-Side, PIP, POP, Stacked or Quad display.
- Bezel Correction Options - In video wall mode.
- Constant Output Sync - For all modes of operation.
- Built-in Video ProcAmp - Color, hue, sharpness, noise, contrast and brightness set individually for each input.
- Firmware Upgrade - Ethernet based, via a user-friendly software upgrade tool.
- Advanced EDID management per Input
- Video inputs and Outputs - 4 HDMI Inputs and 4 Scaled HDMI Outputs.
- Audio Outputs - 4 balanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs.
APPLICATIONS
- Presentation and multimedia
- Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging.
- Video wall: large signage applications in public places.
- Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for display or projection purposes.
- Product Type
- Audio/Video Switchbox
