- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Marketing Information

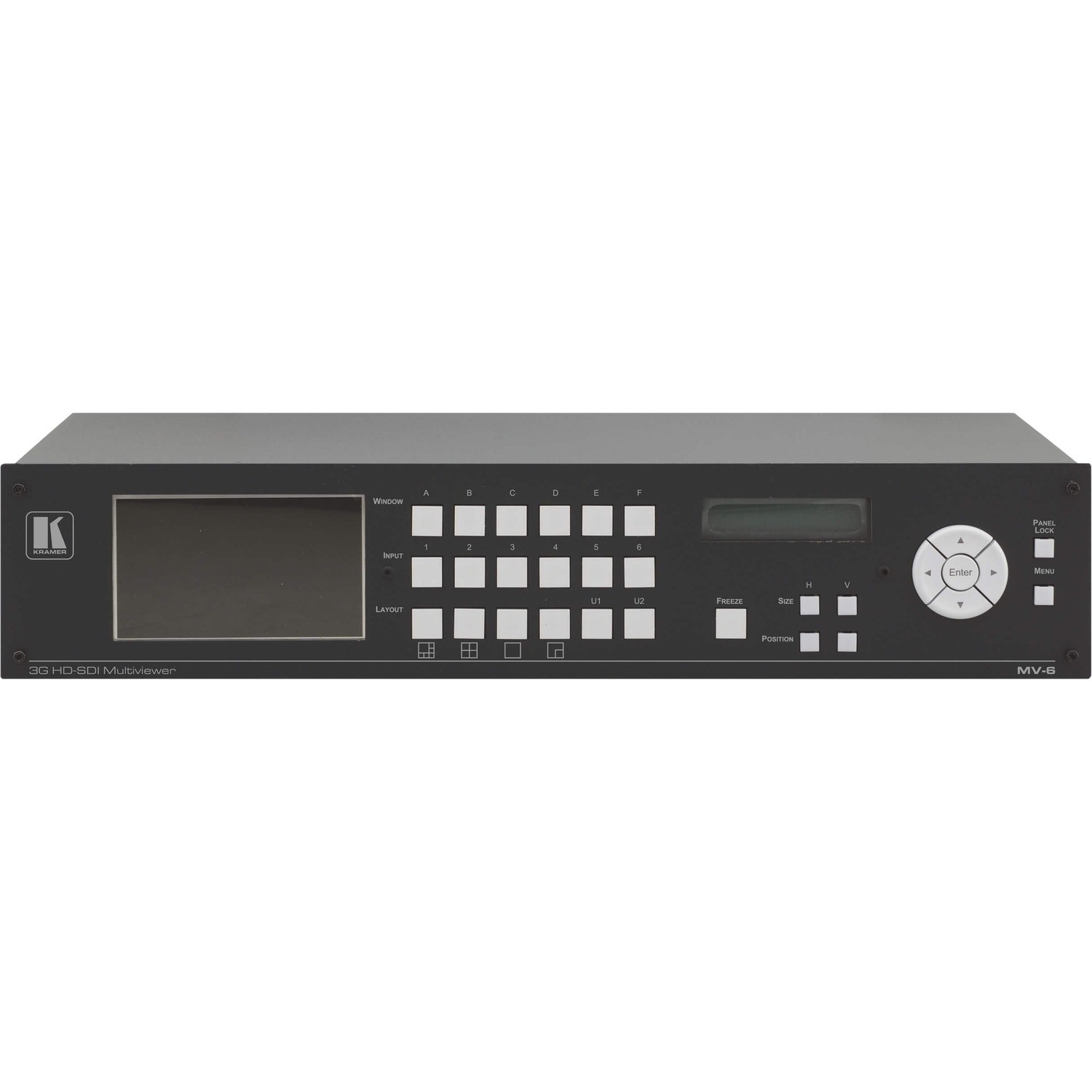

The MV-6 is a versatile, high-performance multiviewer for 3G HD-SDI video signals. The device can display up to six inputs in any combination and output the image in SDI, HDMI and CV formats. Both pre-programmed and customizable screen divisions are supported. The MV-6-MD is certified for medical applications.
- Max. Data Rate - 3Gbps.
- HDTV Compatible.
- Standards Compliance - Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility).
- Kramer re-Klocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
- Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
- Re-Clocking Looping Inputs.
- Multi-Video Output Formats - 3G HD-SDI (SMPTE 424M), HDMI and composite, scaling, refresh rate and video standard conversion.
- Front Panel Preview Screen - 16:9 4.3in color LCD displaying the output of the unit.
- Text Overlay - A text label/icon can be added inside each window. Each label has text/background color, alignment, size, etc settings.
- Screen Handling Buttons - Freeze, size, position, and 4 pre-programmed and 2 user-definable layouts.
- Flexible Control Options - Front panel with 2-row LCD, OSD, Ethernet & RS-232 (supplied with PC control software).
- Worldwide Power Supply - 100-240V AC.
APPLICATIONS
- Professional broadcasting and production studios.
- Presentation applications.
- Product Type
- Audio/Video Switchbox
