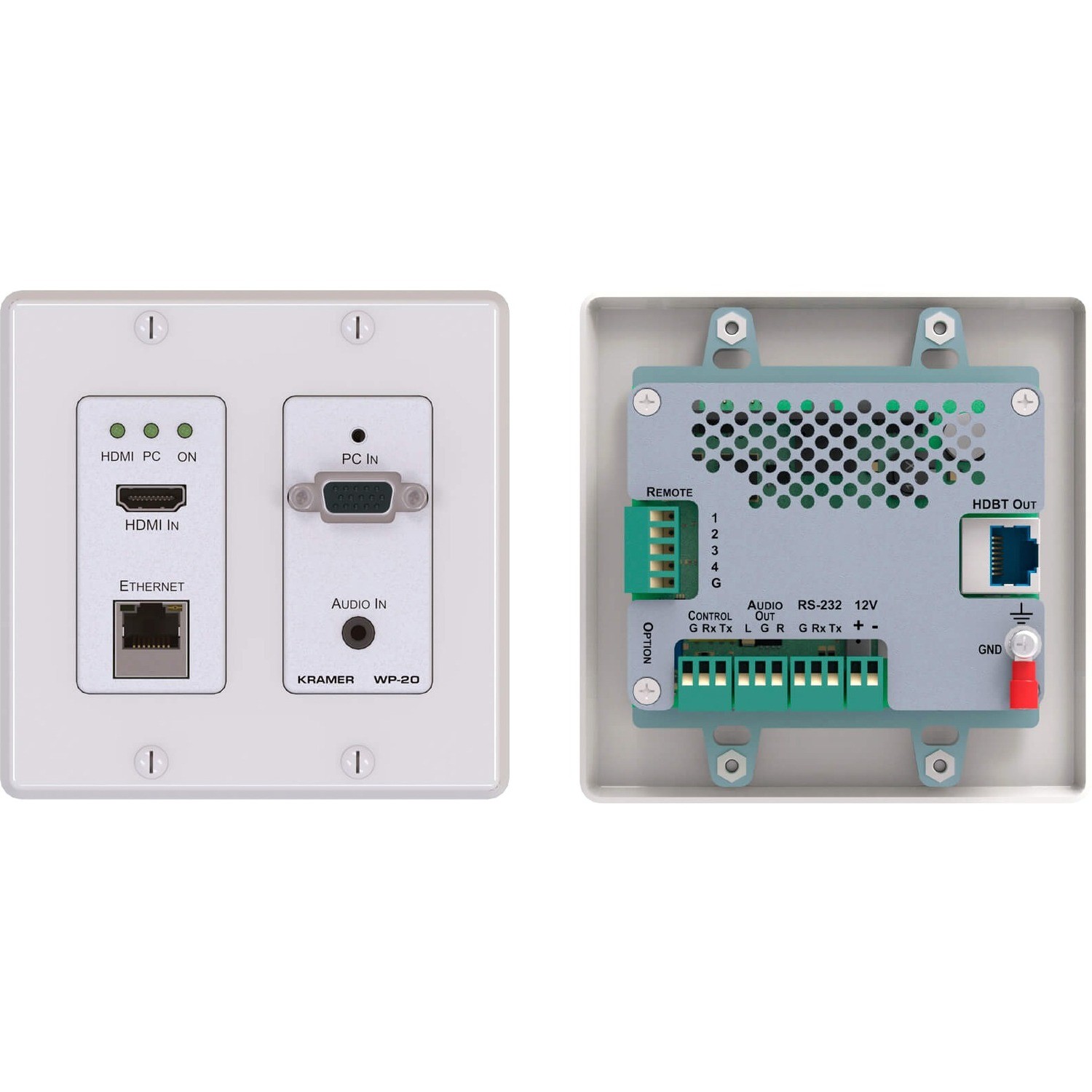

WP-20 is a 4K UHD, HDBaseT active wall plate auto switcher for HDMI, VGA and analog audio signals that supports resolutions up to 4K@60Hz (4:2:0) UHD. The device has EDID management, various control options and audio embedding. The unit is a fully-featured auto-switcher with the convenience and simplicity of a wall plate. WP-20 is easy to configure, can be powered remotely over Ethernet (PoE) and is designed for any size room.

• Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
• Max. Resolution - Up to 4K@60Hz (4:2:0) UHD and WUXGA.
• HDTV Compatible.
• HDCP Compliant - Works with sources that support HDCP repeater mode.
• HDMI Support - Deep Color, x.v.Color™ and 3D.
• Automatic Live Input Detection - Based on video clock presence.
• Automatic Input Selection - Based on manual selection or last connected input.
• Automatic Analog Audio Detection & Embedding.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
• Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-HDKat6a cables.
• Lockable EDID.
• Flexible Control Options - Via Kramer Protocol 3000, Ethernet and embedded Web pages over RS-232.
• Digital Audio Format Support.
• Mounting Option - For wall mounting, use Kramer's OWB-2G.
