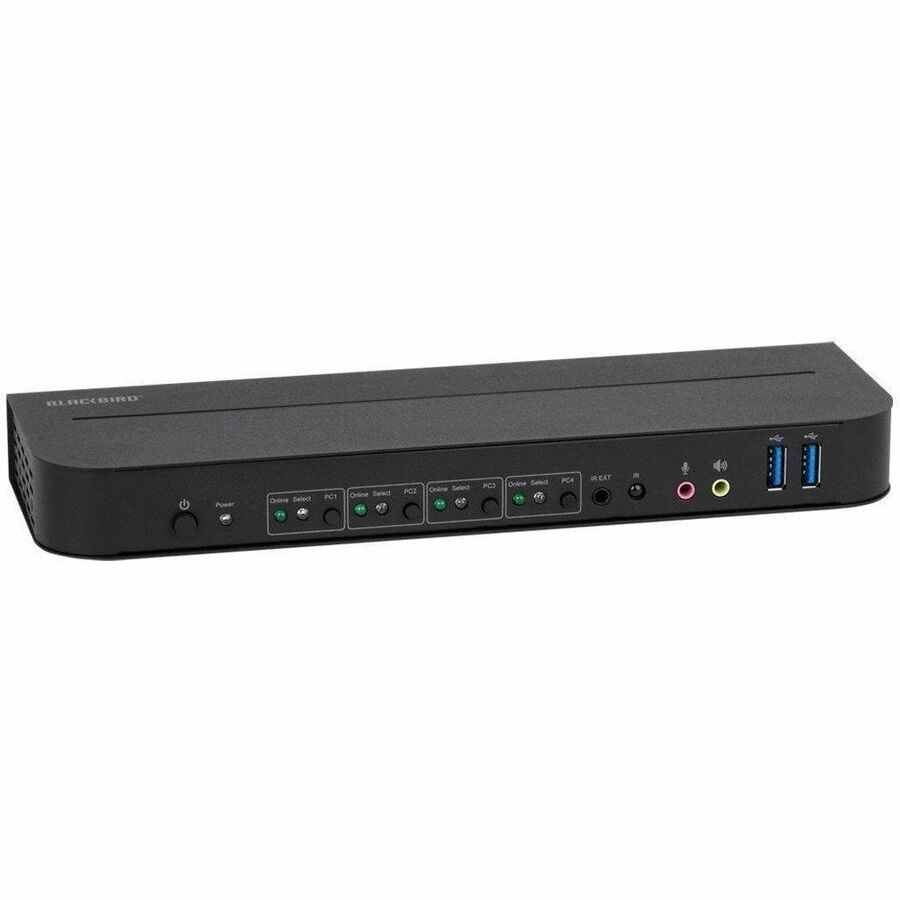

The Blackbird™ 4K DisplayPort® 1.4 and USB 3.0 4x1 KVM Switch allows you to control up to four computers using a single keyboard, mouse, and video display. It is compliant with the DisplayPort 1.4 and HDMI® 2.0 specifications, provides up to 32.4Gbps for DisplayPort and 18Gbps for HDMI, and supports resolutions up to 4K@60Hz with the YCbCr 4:4:4 color space.
- Supports resolutions up to 4K@60Hz, including 3840x2160, 4096x2160, and all 3D video modes
- Compliant with the DisplayPort® 1.4, HDMI® 2.0, and HDCP™ 2.2 / 1.4 standards
- Delivers up to 32.4Gbps for DisplayPort and 18Gbps for HDMI
- Supports the RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0 color spaces
- Supports HDR and Deep Color with 16-bits/channel (48-bits total) for DisplayPort and 12-bits/channel (36-bits total) for HDMI
- Compatible with the Windows® 2000/XP/Vista®/7/8/10, macOS®, and Linux® operating systems
- General Information
- Manufacturer
- Monoprice, Inc
- Manufacturer Website Address
- http://www.monoprice.com
- Brand Name
- Monoprice
- Product Type
- KVM Switchbox
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Computers Supported
- 4
- Maximum Data Transfer Rate
- 4.05 GB/s
- Video
- Graphic Mode
- 4K
- 4K UHD
- Maximum Video Resolution
- 4096 x 2160
- Interfaces/Ports
- USB
- Yes
- USB Standard
- USB 3.0
- HDMI
- Yes
- DisplayPort
- Yes
- Number of USB Ports
- 8
- Number of HDMI Ports
- 1
- Number of DisplayPorts
- 5
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 113°F (45°C)
- Power Description
- Input Current
- 3 A
- Input Voltage Range
- 100 ~ 240 VAC
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 1.11 lb
- Miscellaneous
- Package Contents
- DisplayPort® 4x1 KVM Switch
- AC Power Adapter (5 VDC, 3A)
- IR Remote Control
- IR Extender
- 4x USB 3.0 Cables (Type-A to Type-B)
- 2x Rackmount Ears
- 4x Rackmount Screws
- User's Manual
