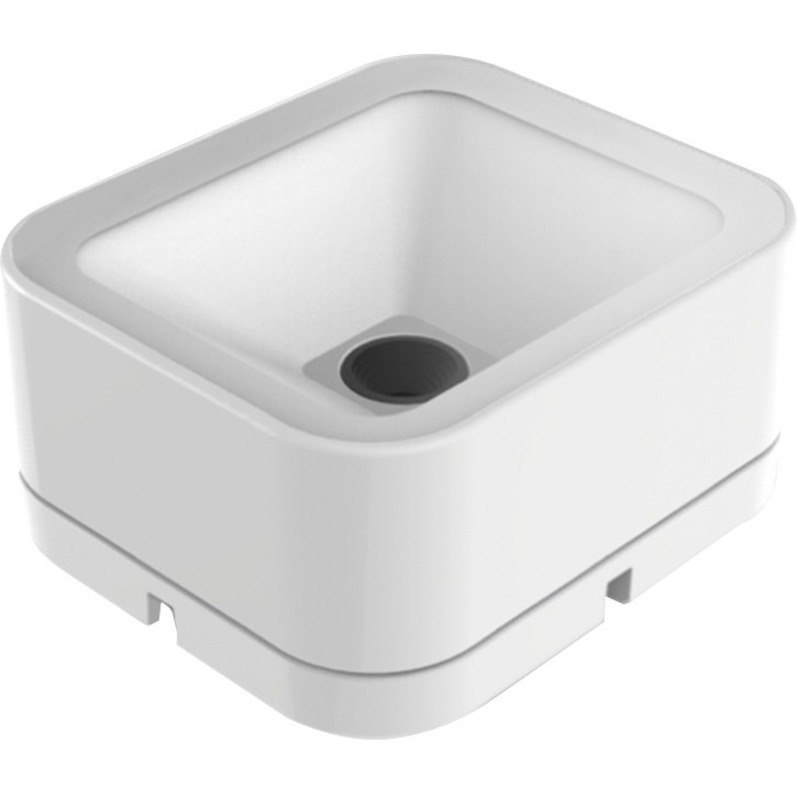

FR27 Urchin 2D CMOS Desktop Area Imager Reader, White color with 1,5 mtr. direct USB cable (NLS-FR2780-W-20).
- General Information
- Manufacturer
- Newland
- Manufacturer Website Address
- http://www.newlandna.com/
- Brand Name
- Newland
- Product Line
- FR27 Urchin
- Product Type
- Barcode Scanner
- Technical Information
- Connectivity Technology
- Cable
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
- 1D:
- All major 1D symbologies
- QR Code
- Data Matrix
- Aztec
- Micro PDF
- Micro QR
- PDF417
- Image Sensor Type
- CMOS
- Scanning Distance
- 4.13"
- Cable Type Included
- USB
- Field of View (Horizontal)
- 68°
- Field of View (Vertical)
- 51°
- Reading Angle (Skew)
- 75°
- Reading Angle (Pitch)
- 75°
- Reading Angle (Roll)
- 360°
- Maximum Ambient Light
- 100000 lux
- Drop Specification
- 1.5m Drop
- Minimum Print Contrast
- 20%
- Maximum Element Resolution (DataMatrix)
- 10 mil
- Maximum Element Resolution (PDF417)
- 6.7 mil
- Interfaces/Ports
- Host Interface
- USB
- Physical Characteristics
- Form Factor
- Desktop
- Color Family
- White
- Product Color
- White
- Height
- 1.5"
- Width
- 2.6"
- Depth
- 3"
- Weight (Approximate)
- 4.23 oz
- Miscellaneous
- Ingress Protection (IP) Rating
- IP42
- Application/Usage
- Kiosk
- Transportation
- Hospitality
- Retail
- Country of Origin
- China
