- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- FlexPoint
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- SC Port Type
- Duplex
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Fiber Optic Cable Wavelength
- 1310 nm
- Maximum Distance Supported
- 12.01 km
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 1000Base-T
- 1000Base-LX
- 1000Base-LX10
- Power Description
- Input Voltage
- 120 V AC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Desktop
- External
- Wall Mountable
- Height
- 1"
- Width
- 3"
- Depth
- 4"
- Weight (Approximate)
- 6 oz
- Miscellaneous
- Package Contents

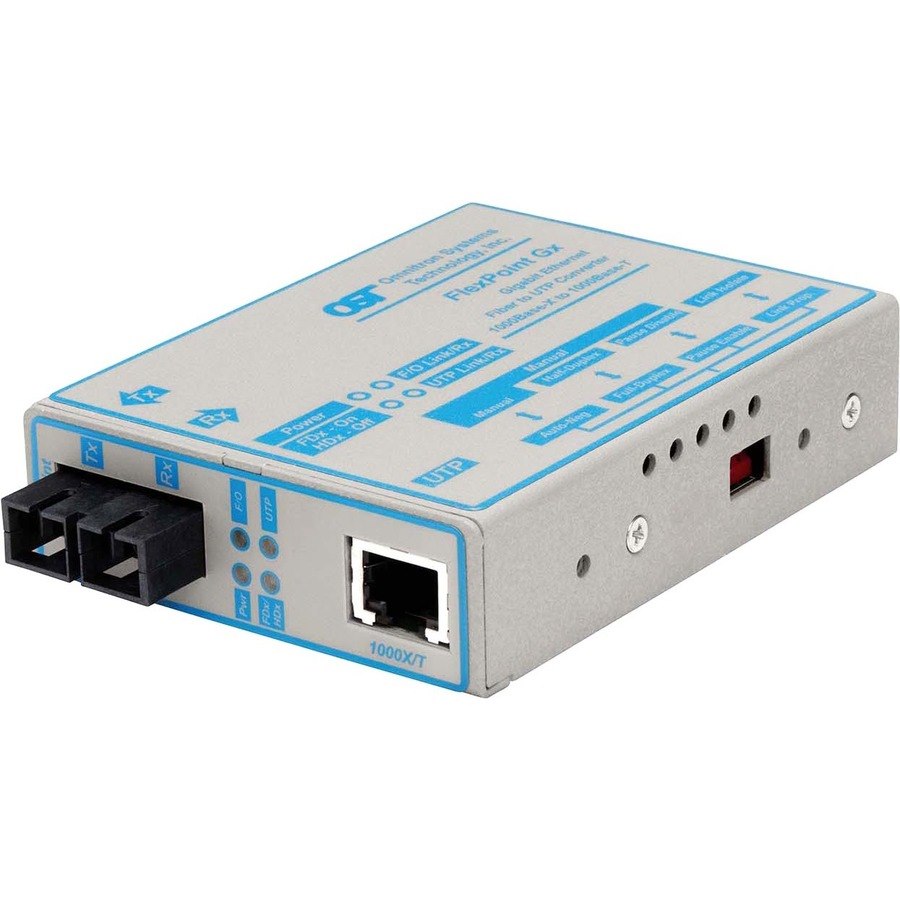

- FlexPoint Gx SC Single-Mode 12km US AC Powered
- US Power Supply - 120Volt / 60Hz
- User Manual
- Additional Information
Input Voltage:
- 6-15VDC via 2.5mm barrel (0.4A @ 9VDC)
- 5VDC via Molex connector (0.6A @ 5VDC)
- 100-120VAC/60Hz (0.04A @ 120VAC)
- Certifications & Standards
- EIA/TIA 568A/B
- UL
- CE
- FCC Class A
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- Environmentally Friendly
- Yes
- Country of Origin
- United States
