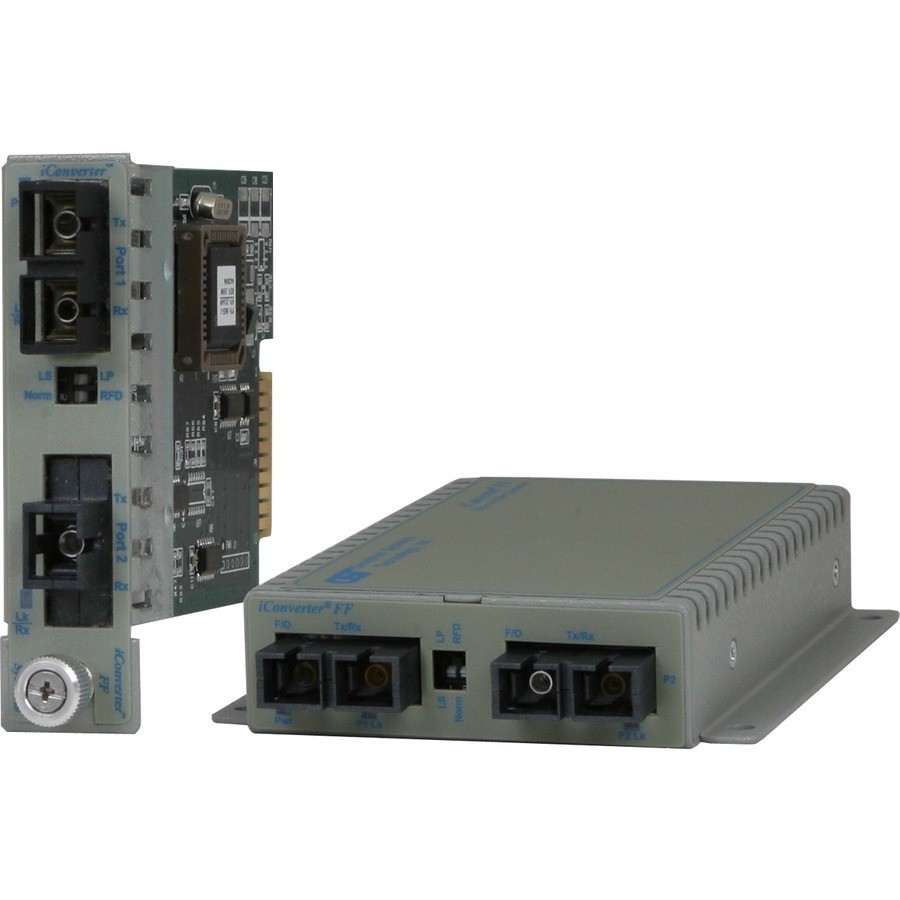

The iConverter OC12FF managed media converter provides multimode to single-mode and dual to single fiber conversion, and is a cost-effective solution for extending SONET/SDH network distances.
iConverter OC12FF models are available with multimode, single-mode, and single-fiber options. The single-mode fiber port supports SC connectors and distances up to 80km. The multimode fiber port supports SC connectors and distances up to 550m.
The iConverter OC12FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection, isolation and reporting.
- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- iConverter
- Product Series
- OC12FF
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Fiber Optic Cable Wavelength
- 1310 nm
- Maximum Distance Supported
- 12 km
- Power Description
- Input Voltage
- 3.3 V DC
- Physical Characteristics
- Form Factor
- Internal
- Height
- 2.8"
- Width
- 0.9"
- Depth
- 4.5"
- Weight (Approximate)
- 8 oz
- Miscellaneous
- Compatibility
- Omnitron 19-Module Chassis
- Omnitron 5-Module Chassis
- Omnitron 2-Module Chassis
- Omnitron 1-Module Chassis
- Certifications & Standards
- UL
- FCC Class A
- CE
- NEBS Level 3
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- United States
