- General Information
- Manufacturer
- Promise Technology
- Manufacturer Website Address
- http://www.promise.com
- Brand Name
- Promise
- Product Line
- VTrak E-Class
- Product Series
- Ex30
- Product Type
- SAN Storage System
Enterprise Storage

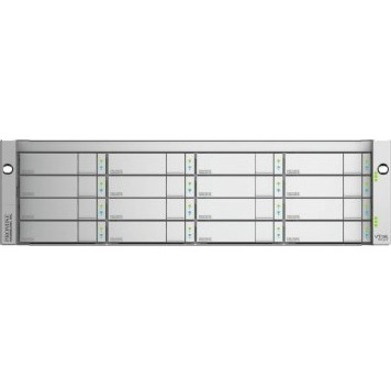

VTrak Ex30 RAID Subsystems
The PROMISE VTrak x30 Series of intelligent, high availability RAID storage subsystems has fundamentally changed storage economics. From purchase and set up, to operation and upgrade, PROMISE storage offers unmatched performance, reliability and value.
- Warranty
- Limited Warranty
- 3 Year
- Storage
- Number of Hard Drives Supported
- 16
- Number of Solid State Drive Supported
- 16
- Features
- Predictive Data Migration
- PerfectFlash
- I/O Expansions
- Number of Total Expansion Bays
- 16
- Number of 2.5"/3.5" Bays
- 16
- Controllers
- Controller Type
- 6Gb/s SAS
- Serial ATA/600
- RAID Levels
- 0, 1, 5, 6, 10, 50, 60, 1E
- Interfaces/Ports
- Host Interface
- 6Gb/s SAS
- Fibre Channel
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Power Source
- Power Supply
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 580 W
- Redundant Power Supply
- Yes
- Physical Characteristics
- Height
- 5.2"
- Width
- 17.6"
- Depth
- 20"
- Form Factor
- Rack-mountable
- Rack Height
- 3U
- Miscellaneous
- Certifications & Standards
- BSMI
- C-Tick
- CB
- cUL
- FCC Class A certified
- GOST-R
- IRAM
- KCC
- NOM
- S Mark
- TUV
- UL
- VCCI Class A ITE
- Platform Supported
- PC
- Linux
- Environmentally Friendly
- Yes
