- General Information
- Manufacturer
- Promise Technology
- Manufacturer Website Address
- http://www.promise.com
- Brand Name
- Promise
- Product Line
- VTrak
- Product Series
- Jx30
- Product Type
- DAS Storage System

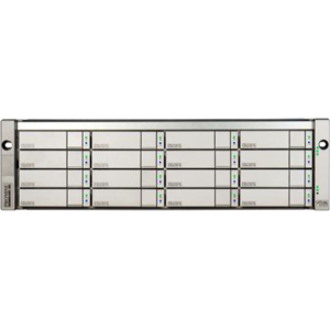

3U/16-Bay Dual Controller 6G SAS JBOD Expansion Subsystem includes 16x 3TB 7200-RPM NL-SAS HDD w/ Next Business Day PSP included
- Warranty
- Limited Warranty
- 3 Year
- Storage
- Number of Hard Drives Supported
- 16
- Number of Hard Drives Installed
- 16
- Total Hard Drive Capacity Installed
- 48 TB
- Hard Drive RPM
- 7200
- Number of Solid State Drive Supported
- 16
- I/O Expansions
- Number of Total Expansion Bays
- 16
- Number of 2.5"/3.5" Bays
- 16
- Controllers
- RAID Supported
- Yes
- RAID Levels
- JBOD
- Interfaces/Ports
- Drive Interface
- 6Gb/s SAS
- Host Interface
- 6Gb/s SAS
- Management & Protocols
- Protocols
- SES
- SMP
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 580 W
- Redundant Power Supply
- Yes
- Physical Characteristics
- Height
- 5.2"
- Width
- 17.6"
- Depth
- 20"
- Form Factor
- Rack-mountable
- Rack Height
- 3U
- Weight (Approximate)
- 52.91 lb
- Miscellaneous
- Package Contents
- 3U/16-Bay 6G SAS Dual Controller Expansion Chassis
- 2 Power Cords for North America
- Quick Start Guide
- Product CD
- Rack Mount Kit and HDD Screws
- 2x 6G SAS Cables
- Certifications & Standards
- CE
- FCC Class A
- UL/cUL
- TUV
- BSMI Class A
- VCCI Class A
- CB
- KCC
- NOM
- GOST-R
- IRAM
- C-Tick
- S-Mark
- Platform Supported
- PC
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
