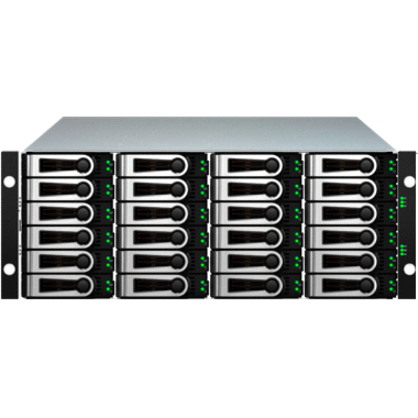

Providing up to 24Gb/s of bandwidth over the external multilane 6G SAS host interface, the VTrak x30 series allows storage applications to access their data at blistering speeds. The 6G SAS architecture paves the way for immense available bandwidth to support the flood of unstructured data now flowing across networks today.
- General Information
- Manufacturer
- Promise Technology
- Manufacturer Website Address
- http://www.promise.com
- Brand Name
- Promise
- Product Line
- VTrak
- Product Series
- Jx30
- Product Type
- DAS Storage System
- Warranty
- Limited Warranty
- 3 Year
- Storage
- Number of Hard Drives Supported
- 24
- Number of Solid State Drive Supported
- 24
- Features
- Signed Envelope Sender (S.E.S)
- I/O Expansions
- Number of Total Expansion Bays
- 24
- Number of 2.5"/3.5" Bays
- 24
- Controllers
- Controller Type
- Serial Attached SCSI (SAS)
- Serial ATA
- RAID Supported
- Yes
- RAID Levels
- JBOD
- Interfaces/Ports
- Host Interface
- 6Gb/s SAS
- Serial
- Management & Protocols
- Protocols
- SMP
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 750 W
- Redundant Power Supply
- Yes
- Physical Characteristics
- Height
- 6.9"
- Width
- 17.6"
- Depth
- 20"
- Form Factor
- Rack-mountable
- Rack Height
- 4U
- Weight (Approximate)
- 57.32 lb
- Miscellaneous
- Certifications & Standards
- CE
- FCC Class A
- UL/cUL
- TUV
- BSMI Class A
- VCCI Class A
- CB
- KCC
- NOM
- GOST-R
- IRAM
- C-Tick
- S-Mark
- Environmentally Friendly
- Yes
