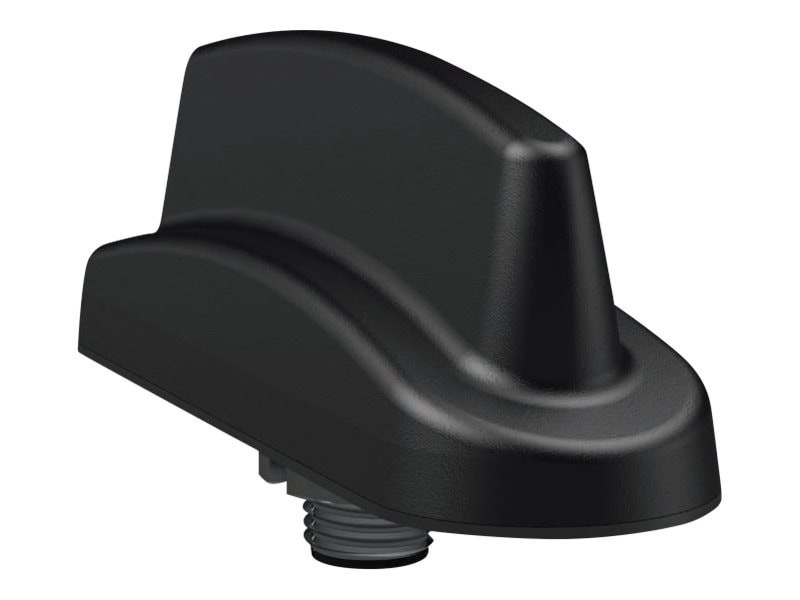

The low profile panel mount antenna has been designed for the Cradlepoint IBR200 to provide MiMo 2G/3G/4G LTE antenna function for IoT and M2M applications. The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and 2G/3G/4G LTE bands in frequency range 698-960/1710-3800 MHz.
The antenna can be fitted on a non-conductive panel if required and offers easy, quick, secure and weatherproof installation with the single hole mounting bush and adhesive sealing pad. The antenna kit includes an industrial grade adhesive pad and supplied with integrated 3.3 ft (1 m) RG174 cables and SMA plug connectors.
