- General Information
- Manufacturer
- Sennheiser Electronic Corporation
- Manufacturer Website Address
- http://www.sennheiser.com
- Brand Name
- Sennheiser
- Product Type
- IR Emitter

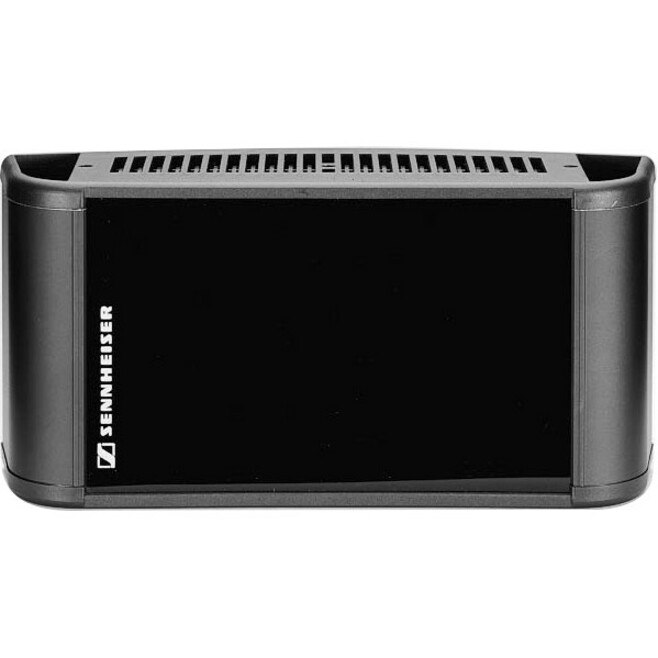

The SZI 1015 is a 2-Watt radiator with a coverage area of up to 400 m². The radiator is switched on and off automatically by the modulator's RF carrier. The RF signal from the modulator can be daisy-chained via BNC sockets. A barrier strip with RF and DC inputs and outputs is connected in parallel. The radiator has a 5/8" thread
and comes with a 3/8" and 1/2" adaptor, it can therefore easily be mounted to various attachments.
- Physical Characteristics
- Product Color
- White
- Height
- 3.9"
- Width
- 9.8"
- Depth
- 3.1"
- Weight (Approximate)
- 2.87 lb
- Miscellaneous
- Additional Information
- Audio-XLR connector: BNC - Socket
- Carrier frequencies: 30 kHz - 6 MHz
- Current consumption: 0,7 A bei 25 V
- Operating voltage (mains): 25-30 V DC
- Input voltage range: 50 mV - 3 V
- Effective radiated power: 2 W
- IR Diodes: 72
- Max. coverage area: 400 m²
- Threshold for automatic on/off function: 50 mV
- Application/Usage
- IR Modulator
