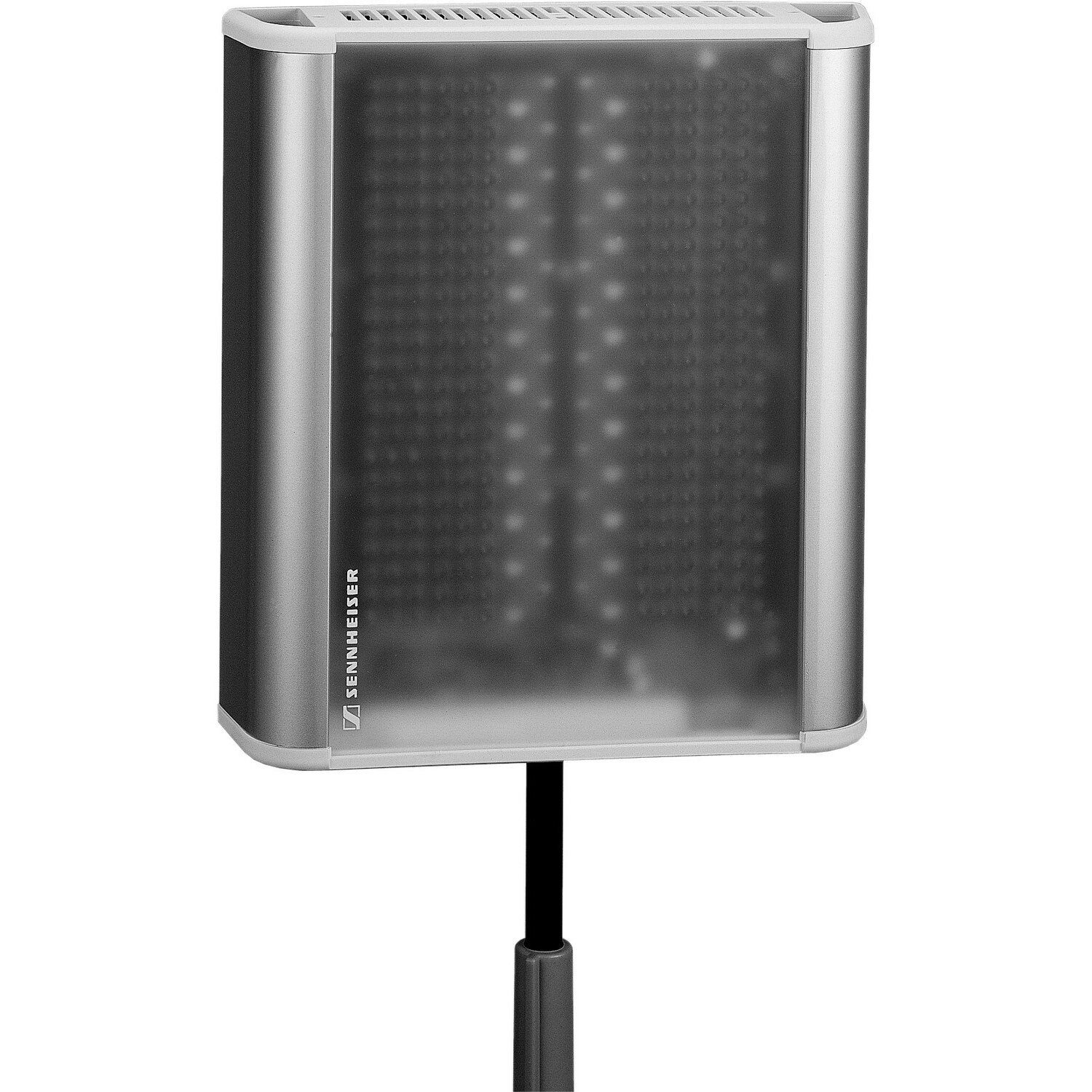

The SZI 1029 is a high-power radiator for use with all wideband and narrow-band modulators that is available in 5 W and 10 W radiating power. The radiator is automatically switched on by the RF carrier and can cover areas of up to 800 m² (5 W variants) or 1600 m² (10 W variants) in single-channel operation. High-quality GaAlAs transmitting diodes have been arranged in independent groups to ensure reliable transmission. A malfunction indicator is triggered when the radiating power is reduced by more than 30 %.
- General Information
- Manufacturer
- Sennheiser Electronic Corporation
- Manufacturer Website Address
- http://www.sennheiser.com
- Brand Name
- Sennheiser
- Packaged Quantity
- 1
- Product Type
- IR Emitter
- Physical Characteristics
- Weight (Approximate)
- 4.63 lb
- Miscellaneous
- Package Contents
- SZI 1029-10-US-B IR Emitter
- 1 x Mains Cable
- Additional Information
- Current consumption:
- 350 mA / Stand-by 50 mA
- 700 mA / Stand-by 50 mA
- Operating voltage (mains):
- 90-260 V, 50 - 60 Hz
- 170-260 V, 50-60 Hz
- Effective radiated power:
- 5 W
- 10 W
- IR Diodes:
- 132 GaAlAs
- 264 GaAlAs
- Max. coverage area:
- 800 m²
- 1600 m²
- Impedance: 5 kΩ
- RF input: BNC
- RF output: BNC
- Threshold for automatic on/off function: 50 mV (HF- Signal)
- Application/Usage
- Receiver
- IR Modulator
