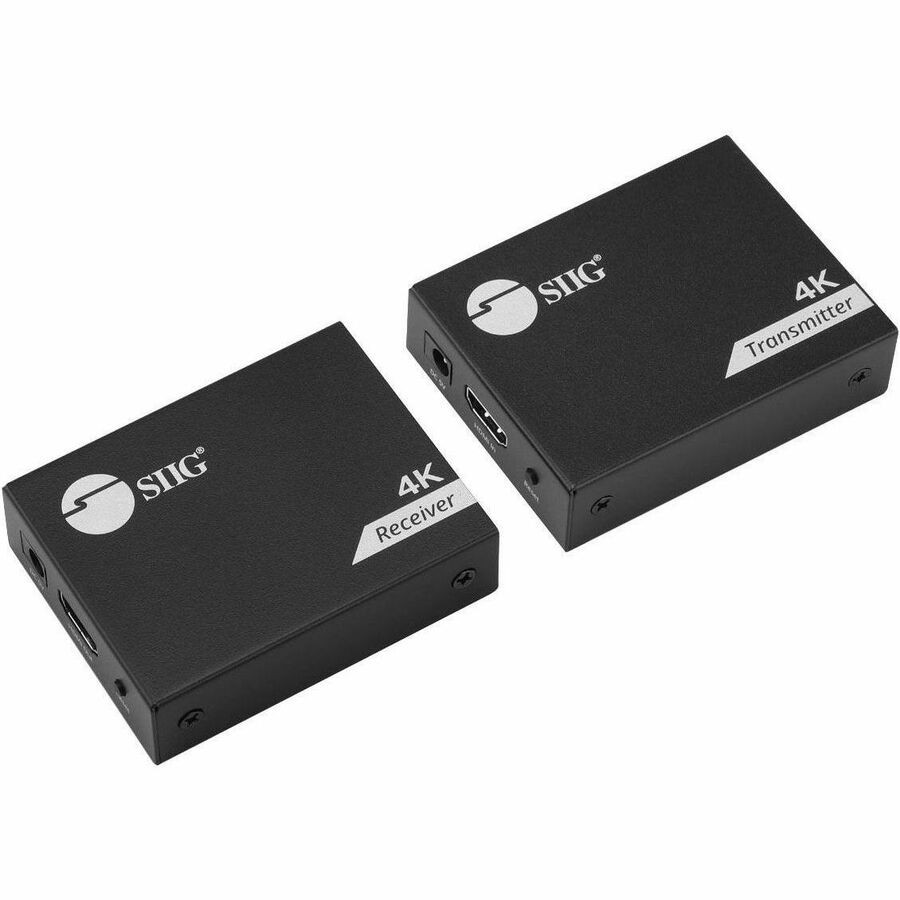

HDMI KVM Extender transmits HDMI 1080p and USB signals up to 230ft (70m) over single Cat6/7 cable with zero latency, and 4K@30Hz up to 130ft (40m), allows you to control computer from a remote location with a USB keyboard and mouse, HDCP 1.4, HDR 10, Reset Button, ESD Protection, Metal Housing

Extending HDMI and USB Signals

• Easily extend HDMI audio/video and USB signals up to 230ft (70m) through a Cat6/7 network cable to remote 1080p display with zero latency and 4K@30Hz transmission distance is up to 130ft (40m), allow you to use a one set of keyboard & mouse for remote control

Keyboard and Mouse Control

• Delivers three USB Type-A ports, two for independent HID keyboard & mouse to control your PC system from a remote location and one for Host connection such as Laptop or Desktop. It also supports wireless keyboard and mouse with a dongle plugged into the USB port

High Performance

• Offers a true 10.2Gbps video bandwidth and supports PCM 2/5.1/7.1-ch, Dolby 5.1/7.1-ch, DTS 5.1/7.1-ch audio formats

4K UHD Video Resolution

• Supports video resolution up to 1080p (1920x1080) @60Hz, 4K@30Hz, HDCP 1.4, HDR 10, YUV 4:4:4 8-bit to deliver a clear picture quality, and supports High Dynamic Range (HDR) 10 for enhanced video quality

Protection Components

• Supports ESD protection, lightning protection, and surge protection to safe your electronic equipment

Multiple Connectivity Ports

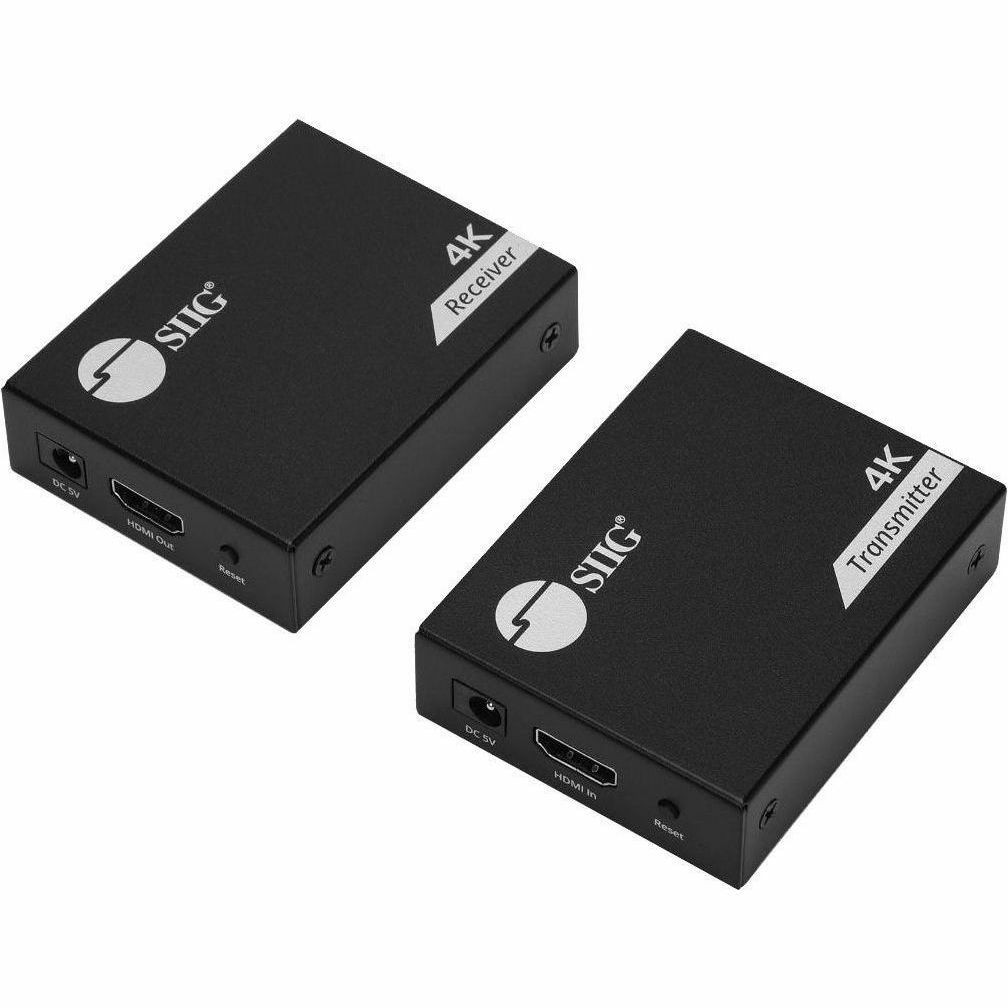

• Comes with one HDMI video input port, one USB Type-A port for PC host connection, one HDMI video output port, two USB Type-A ports for connecting keyboard and mouse, one RJ45 input port, one RJ45 output port, two DC 5V/1A power jack and two reset buttons

Maximum Compatibility

• Supports Plug-n-play and no driver installation required. The reset button allows displays to be re-detected if no displays are detected. Automatically adjusts parameters to match different network cables and achieve the best display performance

Compact Metal Housing Design

• It features a high-quality surface metal housing that efficiently dissipates heat, ensuring system stability and trouble-free operation
