- General Information
- Manufacturer
- Sony Corporation
- Manufacturer Website Address
- http://www.sony.com
- Brand Name
- Sony Pro
- Product Type
- Wireless Microphone System

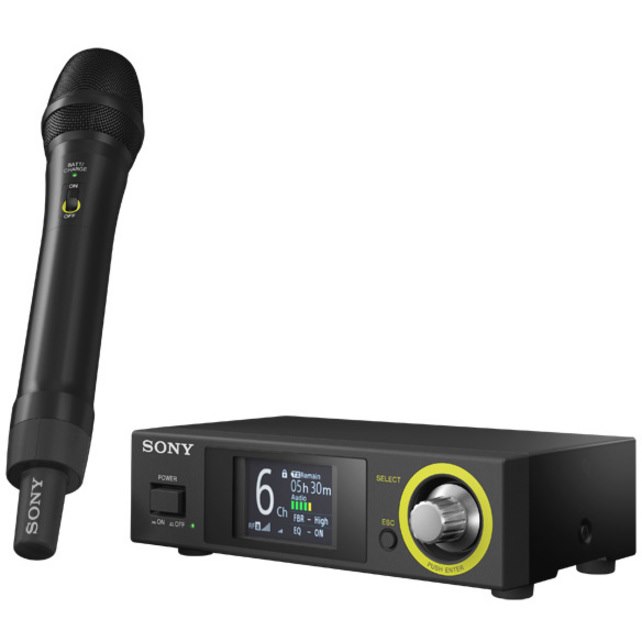

This DWZ Series 2.4 GHz digital wireless vocal/speech set provides the convenience of untethered handheld microphone use with a wired level of audio performance. The package includes a ZTX-M02RC handheld transmitter including an interchangeable dynamic cardioid microphone capsule along with a ZRX-M70 half rack size receiver. Supplied accessories include a mic holder, two antennas and AC adapter. The handheld TX also supports use with optional Sony interchangeable microphone capsules. The receiver includes 3 audio outputs (1 x balanced XLR and 2 x unbalanced 1/4" phone). The receivers menu system provides access to clear channel scan or manual channel selection and a digital 5-band graphic EQ. The receivers LCD includes numeric indication of transmitter battery remaining time, diversity reception RF levels, audio level metering, EQ on/off status and display of selected channnel. Addtional features include AES 128 bit encryption, intelligent feedback reducer and transmitter support for contactless rechargeable function (optional BC-DWZ1 battery charger required) using NiMH AA batteries.
- Technical Information
- Minimum Operating Frequency
- 2.40 GHz
- Maximum Operating Frequency
- 2.48 GHz
- Minimum Frequency Response
- 10 Hz
- Maximum Frequency Response
- 22 kHz
- Interfaces/Ports
- XLR
- Yes
- 6.35mm (?1/4")
- Yes
- Battery Information
- Battery Size Supported
- AA
- Battery Chemistry
- Nickel Metal Hydride (NiMH)
- Miscellaneous
- Package Contents
- ZTX-M02RC Handheld Transmitter
- Interchangeable Dynamic Cardioid Microphone
- ZRX-M70 Half Rack Size Receiver
- 1 x Mic Holder
- 2 x Antennas
- AC Adapter
- Additional Information
- Ideal for vocal performance and speech use
- DWZ Series wireless provides 24 bit Linear PCM digital audio
- The handheld transmitter is supplied with an interchangeable dynamic cardioid mic capsule. It can also be used with optional mic capsules, such as the CU-C31, CU-F31, CU-F32
- Receiver includes a color LCD display with easy access to clear channel scanning or manual channel selection and a digital 5-band graphiic EQ
- AES 128 bit encryptiion
- Intellegent feedback reducer
- Compatibility
DWZ Series Digital Wireless
