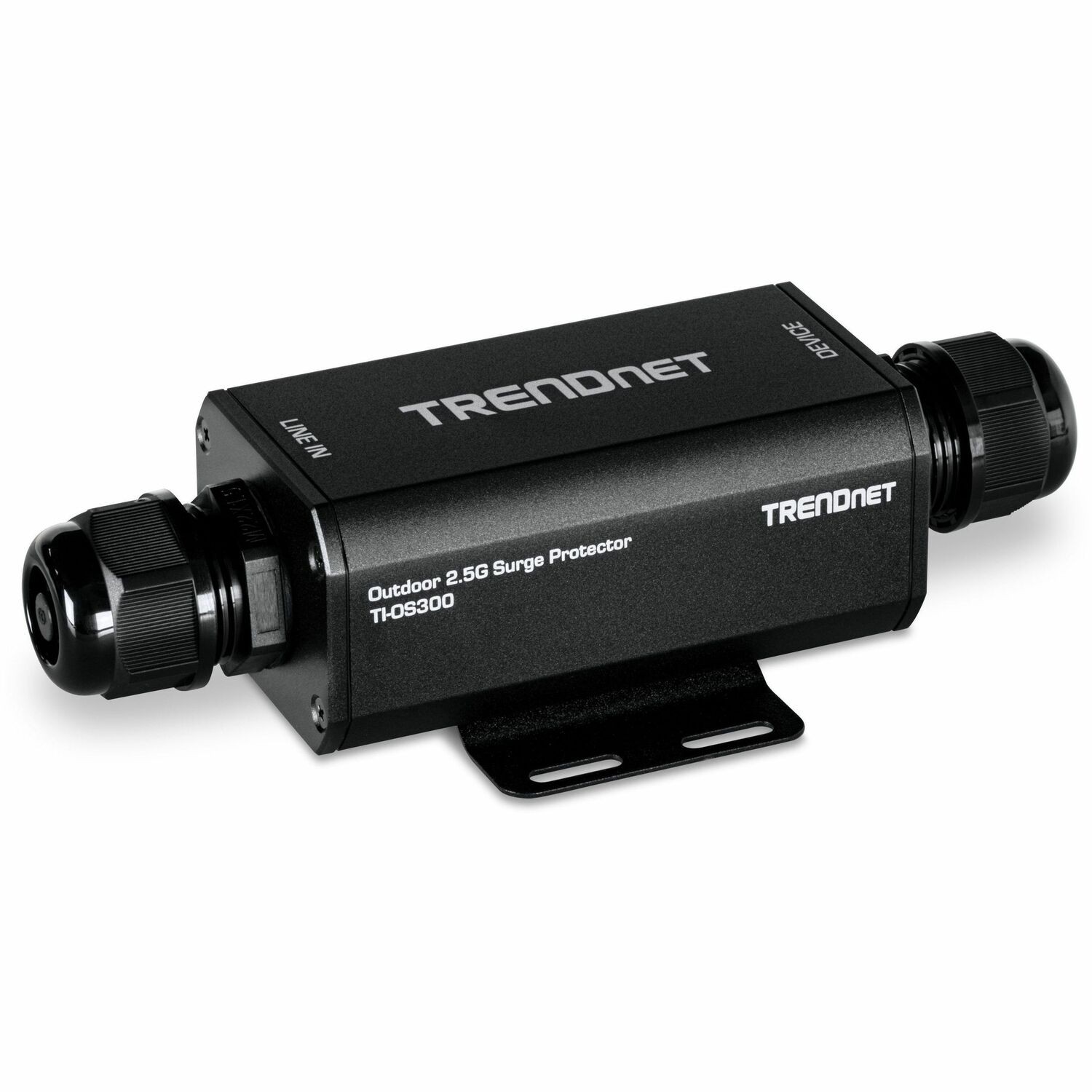

TRENDnet's Outdoor 2.5G PoE++ Surge Protector, model TI-OS300, is installed inline using Ethernet cabling to protect and prevent damage to internal low voltage network devices from electrical surges caused by lightning strikes, electrical overloads, and faulty or damaged wiring. The surge protector supports up to 2.5Gbps networking speeds and PoE++ (95W) devices. The surge protector also features an IP67-rated metal enclosure, detachable mounting bracket, Ethernet cable glands for water protection, and wide operating temperature range of -40°- 75° C (-40° - 167° F) suitable for outdoor installations.

Surge Protection

Gas discharge tube (GDT) protection with a nominal discharge current (8/20µs) of 10kA, clamping voltage of 20V@1kA, and compliant with IEC 61643-21 and IEC 61000-4-5 testing standards

2.5G Networking Speeds

Features two 2.5Gbps RJ45 Ethernet ports and compatible with PoE++ devices (up to 95W)

Industrial Grade Design

Built for industrial network environments, with an IP67 metal enclosure, Ethernet cables glands for water protection, compliance with shock, freefall, vibration, and an operating temperature range of -40°- 75° C (-40° - 167° F).

FEATURES | 2.5G Networking

Features two 2.5Gbps RJ45 Ethernet ports (Line In, Device out)

Surge Protection

Gas discharge tube (GDT) protection with a nominal discharge current (8/20µs) of 10kA and clamping voltage of 20V@1kA

PoE Support

Compatible with PoE (15.4W), PoE+ (30W), and PoE++ (up to 95W) devices

Industrial Design

IP67-rated metal enclosure and Ethernet cable glands for water and dust protection

Wide Temperature Range

Operates within a wide temperature range of -40°- 75° C (-40° - 167° F) suitable for outdoor installations

Compliance

Compliant with shock (EN 60068- 2-27), freefall (EN 60068-2-31, vibration (EN 60068-2-6), IEC 61643-21 (Low voltage surge protective devices), and IEC 61000-4-5 (Surge immunity) standards
