- General Information
- Manufacturer
- Tyan Computer Corp
- Manufacturer Website Address
- http://www.tyan.com
- Brand Name
- Tyan
- Product Series
- FT48
- Product Type
- Barebone System
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 4
- Processor Socket
- Socket F LGA-1207
- Processor Supported
- Opteron
- Chipset
- Chipset Manufacturer
- NVIDIA
- Chipset Model
- nForce Professional
- Memory
- Maximum Memory Supported
- 128 GB
- Memory Technology
- DDR2 SDRAM
- Memory Standard
- DDR2-800/PC2-6400
- Total Number of Memory Slots
- 16
- Storage
- Optical Drive Type
- DVD-Reader
- Optical Media Supported
- DVD-ROM
- Controllers
- Controller Type
- Serial ATA/300
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 0+1, 5
- Display & Graphics
- Graphics Controller Model
- Z7
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 11
- Number of External 5.25" Bays
- 3
- Number of 3.5" Bays
- 8
- Total Number of Expansion Slots
- 4
- Number of PCI Express x16 Slots
- 4
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Network (RJ-45)
- Yes
- VGA
- Yes
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Number of Power Supplies Installed
- 3
- Maximum Power Supply Wattage
- 3420 W
- Physical Characteristics
- Form Factor
- Tower
- Rack Height
- 4U
- Height
- 6.9"
- Width
- 16.8"
- Depth
- 27.5"
- Weight (Approximate)
- 110.23 lb
- Miscellaneous
- Package Contents

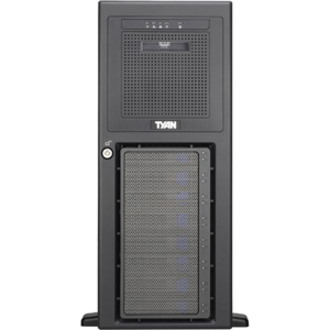

- FT48 B4985-SI Barebone System
- 1 x MB User Manual
- 1 x BB User Manual
- 1 x TYAN Installation CD
- 4 x CHSK-0250, 1207-pin CPU Heatsinks
- 1 x CRAL-0070, Sliding Rail Kit for KFT48
- 1 x CRBK-0021, Rack Mounting Handle Bracket, right
- 1 x CRBK-0020, Rack Mounting Handle Bracket, left
- 1 x HDD Screw Pack
- 1 x COTH-0180, Foot stand for chassis
- 1 x CFBZ-0140, FDD front cover for 5.25" dummy tray
- 5 x Long card holders with screws
- 1 x Security tab with screws
- 3 x CCBL-0310, US Type Power Cords
- 3 x CCBL-0300, EU Type Power Cord
- 1 x CCBL-0441, FDD cable, 570mm
- Additional Information
Expansion Slot Detail:
- 2 x PCI Express 16 slots have the bus speed of PCI Express x4
- Environmentally Friendly
- Yes
