Bring your enterprise to the future of server technology! TYAN server solutions offer industry-leading form factors and the features required to build best-in-class server systems to meet your requirements. Aggressively-priced and specifically-engineered for a wide range of applications, TYAN barebones servers and server chassis enclosures provide OEMs, VARs and S/Is with simplified, cost-effective components and solutions for building robust, feature-rich servers.
- General Information
- Manufacturer
- Tyan Computer Corp
- Manufacturer Website Address
- http://www.tyan.com
- Brand Name
- Tyan
- Product Type
- Barebone System
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 2
- Processor Socket
- Socket G34 LGA-1944
- Processor Supported
- Opteron
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- AMD
- Memory
- Maximum Memory Supported
- 256 GB
- Memory Technology
- DDR3 SDRAM
- Memory Standard
- DDR3-1333/PC3-10600
- Total Number of Memory Slots
- 16
- Controllers
- Controller Type
- Serial ATA/300
- 6Gb/s SAS
- RAID Supported
- Yes
- Display & Graphics
- Graphics Controller Model
- AST2050
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 8
- Number of 3.5" Bays
- 8
- Total Number of Expansion Slots
- 3
- Number of PCI Express x16 Slots
- 3
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of SATA Interfaces
- 6
- Number of SAS Interfaces
- 12
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 770 W
- Physical Characteristics
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Height
- 3.4"
- Width
- 17.7"
- Depth
- 27.6"
- Miscellaneous
- Package Contents

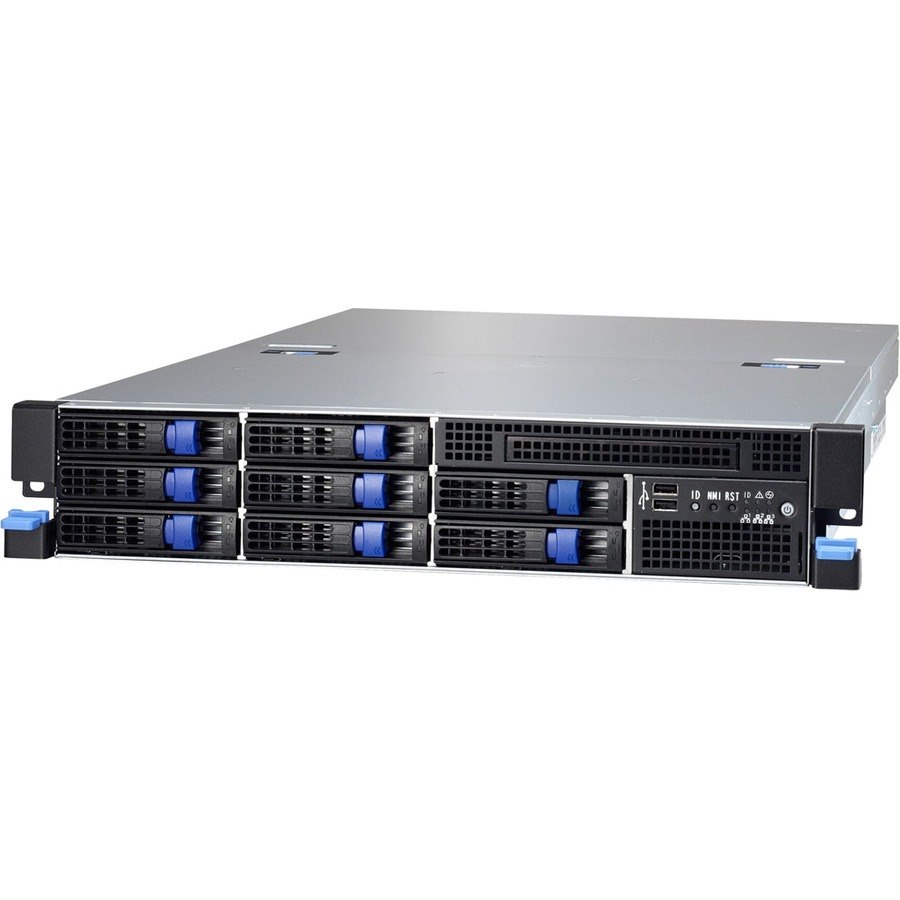

- GN70B8236 Barebone System
- 1 x MB User's manual
- 1 x BB User's manual
- 1 x TYAN installation CD
- 2 x G34 CPU heatsinks
- 1 x CRAL-0031, sliding rail kit for KGT24/ KGT62
- 1 x mounting ear kit
- 2 x CCBL-0310, US type power cord
- 2 x CCBL-0300, EU type power cord
- Environmentally Friendly
- Yes
