- General Information
- Manufacturer
- Tyan Computer Corp
- Manufacturer Website Address
- http://www.tyan.com
- Brand Name
- Tyan
- Product Series
- YR290
- Product Type
- Barebone System
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 2
- Processor Socket
- Socket B LGA-1366
- Processor Supported
- Xeon
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- 5500
- Memory
- Maximum Memory Supported
- 96 GB
- Memory Technology
- DDR3 SDRAM
- Memory Standard
- DDR3-1333/PC3-10600
- Total Number of Memory Slots
- 12
- Controllers
- Controller Type
- Serial ATA/300
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 1+0, 5
- Display & Graphics
- Graphics Controller Model
- AST2050
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 8
- Total Number of Expansion Slots
- 1
- Number of PCI Express x16 Slots
- 1
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 2.0 Ports
- 4
- Network (RJ-45)
- Yes
- VGA
- Yes
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 450 W
- Physical Characteristics
- Form Factor
- Rack-mountable
- Rack Height
- 2U
- Height
- 3.4"
- Width
- 17.3"
- Depth
- 28.7"
- Miscellaneous
- Package Contents

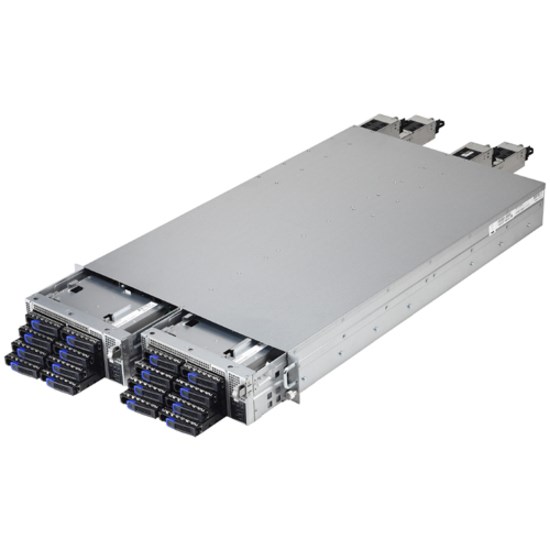

- B7018Y290D2-045V8H Barebone System
- 1 x MB User's Manual
- 1 x BB User's Manual
- 1 x TYAN Installation CD
- 4 x LGA1366 CPU Heatsinks
- 1 x Sliding Rail Kit for YR290/TN70
- 2 x CCBL-0310, US Type Power Cord
- Additional Information
System Detail:
- 2 x Nodes in one Chassis
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4 GT/s
- Environmentally Friendly
- Yes
