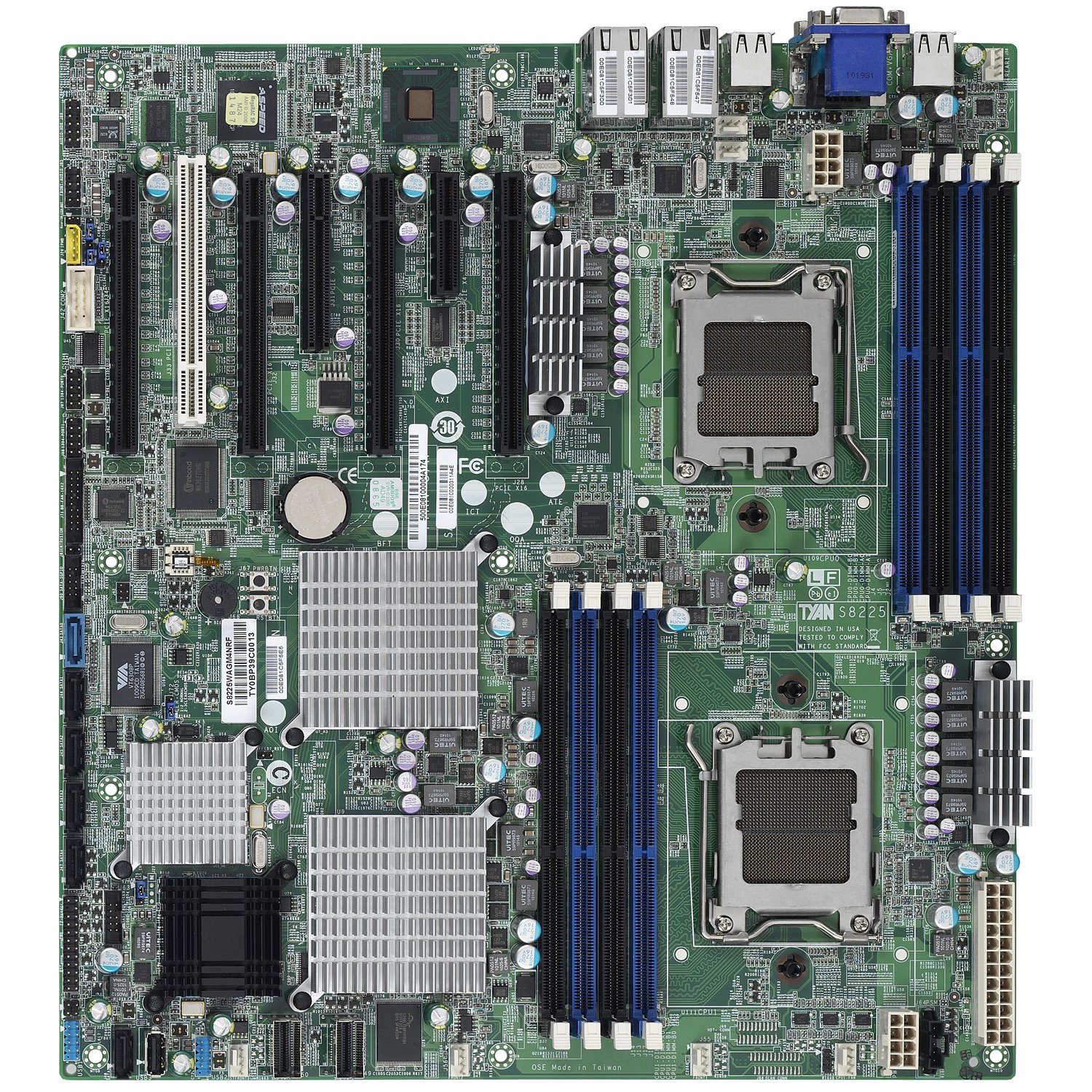

- General Information
- Manufacturer
- Tyan Computer Corp
- Manufacturer Website Address
- http://www.tyan.com
- Brand Name
- Tyan
- Product Type
- Server Motherboard
- Processor & Chipset
- Chipset Manufacturer
- AMD
- Chipset Model
- SR5690
- Total Processor Supported
- 2
- Processor Technology
- HyperTransport Technology
- Processor Socket
- Socket C32 LGA-1207
- Processor Supported
- Opteron Hexa-Core
- Opteron Quad-Core
- Memory
- Number of Memory Slots
- 8
- Maximum Memory Supported
- 64 GB
- Memory Standard
- DDR3-1333/PC3-10600
- DDR3-1066/PC3-8500
- DDR3-800/PC3-6400
- Memory Technology
- DDR3 SDRAM
- Memory Speed Supported
- 1333 MHz
- 1066 MHz
- 800 MHz
- I/O Controller
- Controller Type
- Serial Attached SCSI (SAS)
- Serial ATA/300
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 1+0
- 5
- Video
- Onboard Video
- On-board Video Chipset
- Graphics Controller Model
- AST2050
- Audio
- Sound Controller Model
- ALC262
- Audio Channels
- 3.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 6
- PCI Express Standard
- PCI Express 2.0
- Total Number of PCI Express Slots
- 6
- Number of PCI Express x4 Slots
- 1
- Number of PCI Express x8 Slots
- 1
- Number of PCI Express x16 Slots
- 4
- Interfaces/Ports
- Total Number of USB Ports
- 5
- Number of USB 2.0 Ports
- 5
- Serial Port
- Yes
- VGA
- Yes
- Network (RJ-45)
- Yes
- Onboard Interfaces
- Number of SATA Interfaces
- 6
- Number of SAS Interfaces
- 2
- Total Number of Onboard USB Ports
- 4
- Number of Onboard USB 2.0 Ports
- 4
- Total Number of Onboard FireWire/i.LINK Ports
- 2
- Onboard LEDs Header
- Yes
- Onboard Audio Header
- Yes
- Physical Characteristics
- Form Factor
- Extended ATX
- Width
- 12"
- Depth
- 13"
- Miscellaneous
- Package Contents
- S8225 Server Motherboards
- 1 x User's Manual
- 1 x TYAN Installation CD
- 1 x I/O Shield
- 6 x SATA Signal Cables
- 2 x Mini-SAS Cables
- Environmentally Friendly
- Yes
